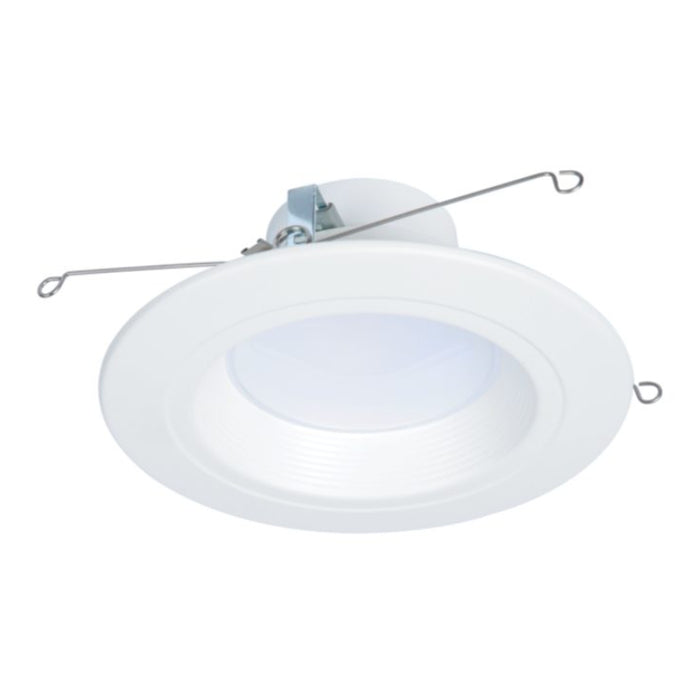

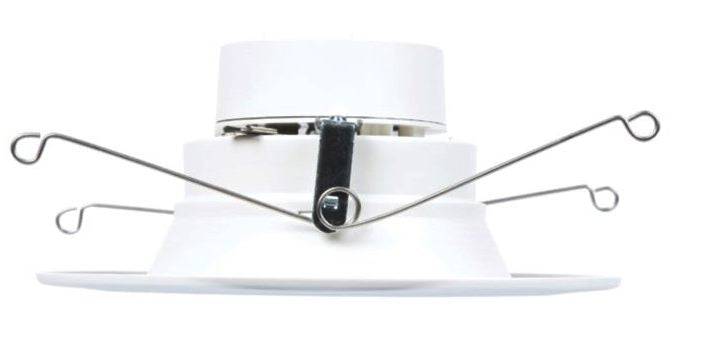

Halo RL56 5"/6" Recessed LED Retrofit Module, 5CCT & 2 Lumens Selectable, Warm Dim, Dimmable down to 5% , Matte White Flange

The Halo RL LED recessed trims are designed for use with new construction or remodel housings.

Features

• Title 20 & Title 24 compliant, can be shipped to California locations
• Recessed Size: 5" / 6"
• Finish: Matte White Flange
• Wattage: 14.5W
• Voltage: 120V
• Color Temperature: 2700K/3000K/3500K/4000K/5000K/Dim-to-warm selectable
• Lumens: 900/1200 selectable
• CRI: 90
• Dimmable down to 5%

Compatible Housings (Sold Separately):

• New Construction - H550ICAT , E550ICAT , H750ICAT , H750T , H750TCP , H2750ICAT , E750ICAT
• Remodel - H550RICAT , E550RICAT , H750RICAT , H2750RICAT , E750RICAT

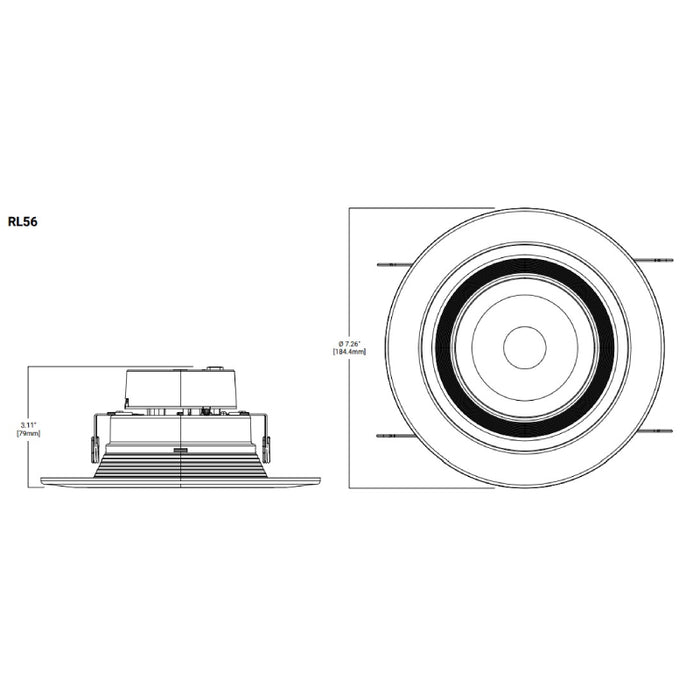

Dimensions

• Width: 7.26"

• Height: 3.11"

Warranty

• 5-year limited warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• UL Certified US and Canada Type IC suitable for direct contact with air permeable insulation
• Wet and Damp location listed. Not recommended for use in direct contact with spray foam insulation, reference NEMA LSD57-2013
• Airtight certified per ASTM-E283

• EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
• Contains no mercury or lead and RoHS compliant
• Can be used for State of California Title 24 high efficacy luminaire compliance. Complies with Title 24 JA8-2022-E.
• Can be used International Energy Conservation Code (IECC) high efficiency luminaire compliance.
• ENERGY STAR® listed, reference database for current listings
• IP44 Ingress Protection rated
