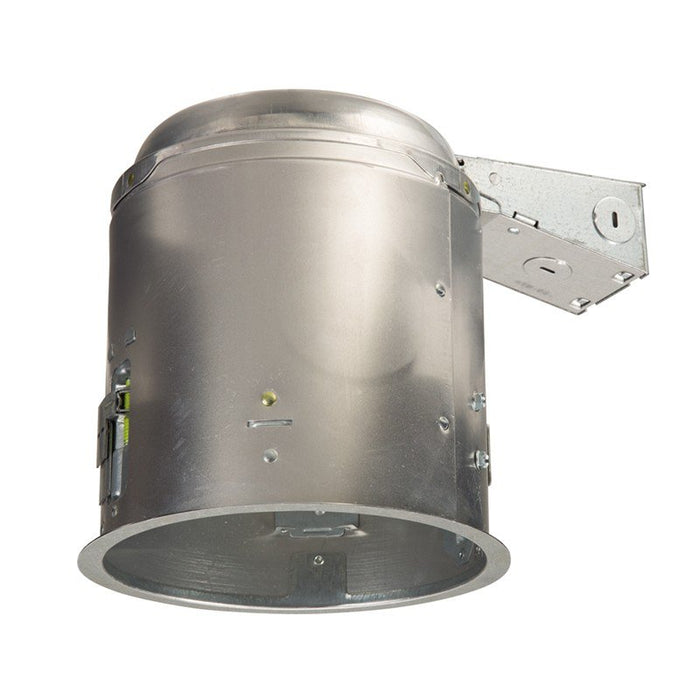

Halo E750RICAT 6" Recessed LED Remodel Housing

SKU E750RICAT
Original price $0.00 - Original price $0.00
Original price
$9.38
$9.38 - $9.38
Current price $9.38
Availability:
In stock

Estimated Shipping Widget will be displayed here!

OVERVIEW

Recessed 6” aperture install from below remodeler type housing for use with LED integrated trims or modules. Suitable for 2x8 residential framing or commercial plenum construction, type IC rated and can be used in direct contact with insulation. Airtight rating reduces airflow between living spaces and unconditioned areas providing additional energy savings.

Features

  • Retrofit Trim sold separately.
  • Single wall precision rolled aluminum housing maintains concentricity
  • Mounting flange secures housing to building structure for below the ceiling installation
  • (2) exclusive speed clamps adjusts to accommodate 3/8” to 2” thick ceilings
  • Combination hex, slot and Philips drive screws actuate clamps and speed installation
  • Clamps can be loosened from below the ceiling for repositioning or splice inspection
  • Integral compact galvanized steel junction box with 10in³ internal volume is attached directly to housing to clear obstructions and fit in tight spaces
  • (3) 4-port push wire nuts with clear caps are color coded for quick and reliable mains voltage connections
  • Junction box is repositionable 90° on plaster frame to avoid obstructions
  • Hinged door for easy wire access

Dimensions

  • Width: 10.5"
  • Height: 7"

Warranty

  • Five-year limited warranty
