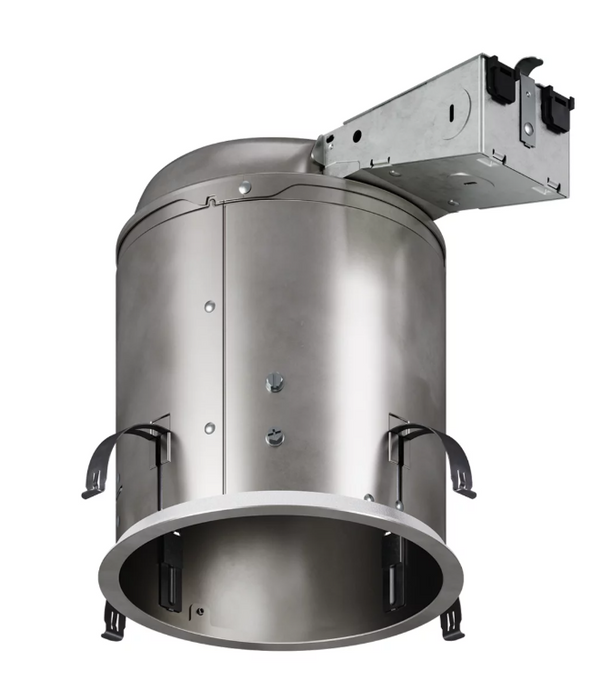

Halo H750RICAT 6" LED IC Air-Tite Remodel Housing

The H750RICAT is a dedicated LED Remodel housing for use with Halo H7 Collection 600 900 Series LED modules.

Compatible Trims (Sold Separately):

• LT56079FS1EWHR
• RA56LS9FSD2W1EWH
• RL560WH12935
• RL56129S1EWHR
• ML5615LSVWFL9FSE010
• LA56069271EWH
• RSQ6LS9FSD2W1EWH

Features

• Trim and LED module sold separately
• Recessed Size: 6"
• Voltage: 120V
• Slide-N-Side wire traps
• Quick Connect wiring connectors included in junction box
• Die-formed housing
• Remodel springs accommodate 1/2" and 5/8" ceiling material
• Compatible with Halo 600 Series and 900 Series LED modules
• Designed for remodel into insulated ceilings and can be in direct contact with ceiling insulation

Documents

• Spec Sheet

Labels and Listings

• cULus Listed Damp Location.
• cULus Listed for Wet Location, covered ceiling, with select trims.

• Air-Tite code compliant. Certified under ASTM E283; not exceeding 2.0 cfm (0.944 L/s) air leakage rate tested at a 1.57 psf (75 Pa) pressure differential (with ceiling gasket GA-ATH7- 6PK or caulk)

• Use with ENERGY STAR® certified Halo LED modules and trims.
• Can be used for State of California Title 24 high efficacy compliance with Title 20 Certified Halo LED.
• Can be used for International Energy Conservation Code (IECC) high efficacy compliance with designated LED modules and trims.
• Refer to LED module specification sheets online for additional compliance information.
• RoHS Compliant
