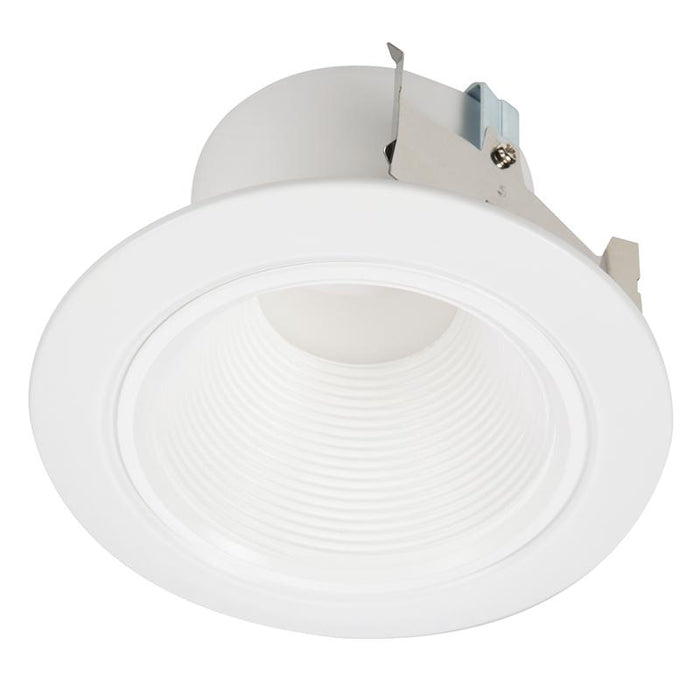

Halo RL4 4" All-Purpose 8.5W LED Deep Baffle Retrofit Module, 3000K, 600 Lumens, 120V, Matte White

The Halo RL4 Deep Baffle is a complete LED Bafle-Trim Module for 4-Inch aperture recessed downlights' suitable for new construction, remodel and retrofit installation.

Features

• Housing sold separately
• Title 20 & Title 24 compliant, can be shipped to California locations
• Recessed Size: 4"
• Finish: Matte White
• Wattage: 8.5W
• Voltage: 120V
• Color Temperature: 3000K
• Lumens: 600
• CRI: 90
• Dimmable down to 5%
• Full cutoff with regressed light source
• Coilex style baffle
• Both white and black baffle included
• 50 degree optical cutoff

Compatible Housings (Sold Separately):

• New Construction - H245ICAT , H995ICAT
• Remodel - H245RICAT , H995RICAT

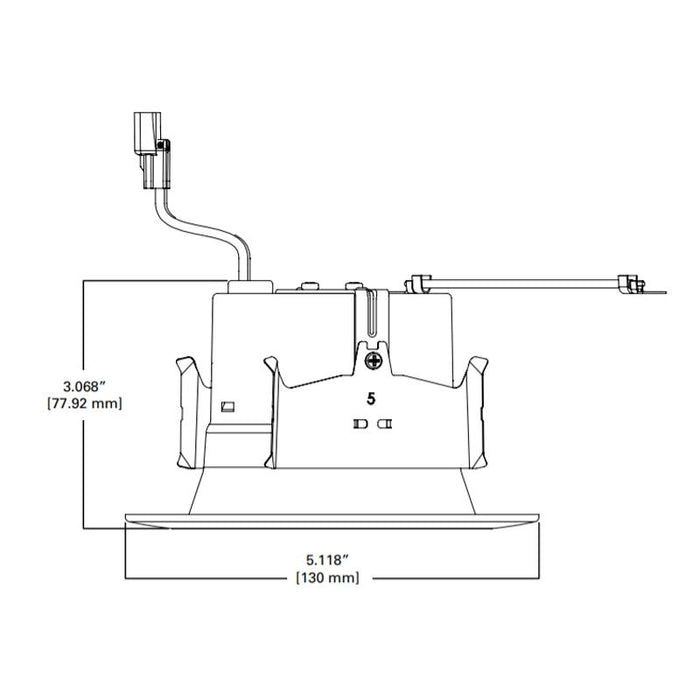

Dimensions

• Aperture: 4"
• Diameter: 5.12"
• Height: 3.07"

Warranty

• 5-year limited warranty.

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• UL Certified
• Wet and Damp location listed
• Airtight certified per ASTM-E283

• EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
• Contains no mercury or lead and RoHS compliant
• Can be used for State of California Title 24 high efficacy luminaire compliance. Complies with Title 24 JA8-2016-E.
• Can be used International Energy Conservation Coe (IECC) and Washington State Energy Code high efficiency luminaire compliance.
• ENERGY STAR® listed, reference database for current listings
