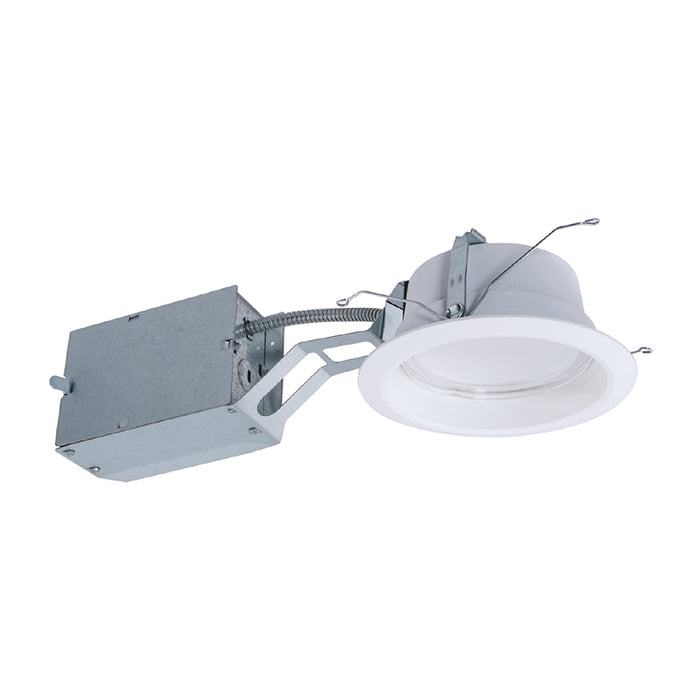

Halo PR4R 4" LED Retrofit Kit with Junction Box and Driver, Field Selectable 1000-2000 Lumens

With field-selectable lumens and color temperatures; and exclusive medium and wide "flip" lens; the PR4 series offers the ultimate in flexibility in making final settings on site.

Compatible Module (Sold Separately):

• PR4M12

Features

• LED module sold separately.
• Use with PR4M12 LED modules only
• Recessed Size: 4"

• Voltage: 120-277V
• Lumens: Field Selectable 1000, 1500 and 2000 Lumens (Nominal)
• 0-10V analog , 1%-100% dimming

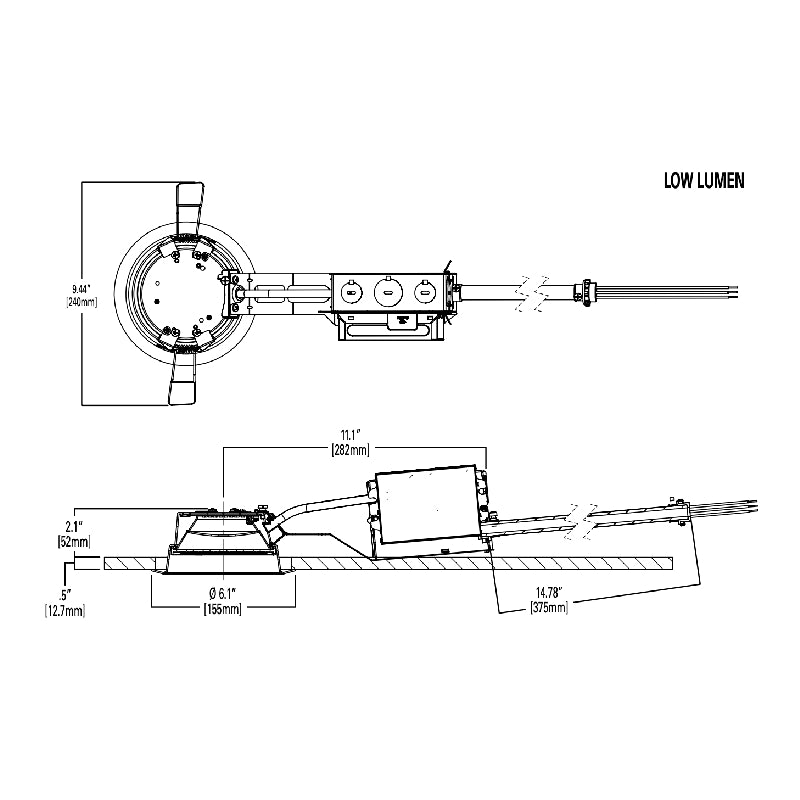

Dimensions

• Width: 9.44"

• Height: 2.1"

Estimated Life

• Passive cooling achieves L70 at 50,000 hours

Warranty

• 5-Year Limited Warranty

Documents

• Spec Sheet

Labels and Listings

• cULus Listed (US and Canada), wet location listed in protected ceilings
• IP20 - Above finished ceiling; IP65 - Below finished ceiling

• Airtight per ASTM-E283-04
• EMI/RFI emissions FCC CFR Title 47 Part 15 Class A at 120/277V
• Contains no mercury or lead and RoHS compliant
• May be used to comply with State of California Title 24 non-residential code, as a dimmable LED luminaire
• ENERGY STAR® certified, see Certified Light Fixtures database
