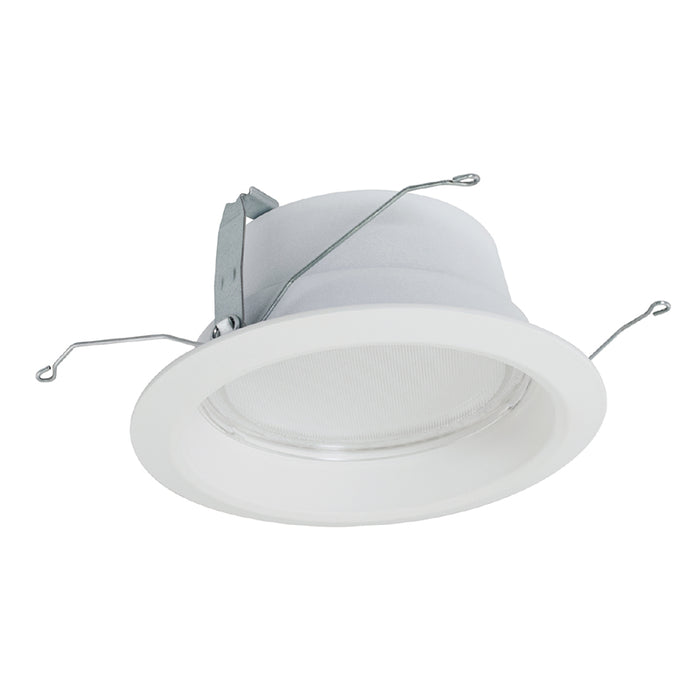

Halo PR4M 4" 20W LED Module, Field Selectable 1000-2000 Lumens

Compatible Trims & Frame (Sold Separately):

• PR4FS12D010
• PR4RFS12D010

Features

• Frame sold separately.
• Use with PR4FS12  mounting frames only
• Recessed Size: 4"
• Finish: Matte White Ring / Self-Flanged Reflector
• Wattage: 19.8W
• Voltage: 120-277V
• Color Temperature: 3000K / 3500K / 4000K Selectable

• Lumens: Field Selectable 1000, 1500 and 2000 Lumens (Nominal)
• CRI: 80+
• Distribution: Medium / Wide beam reversible "flip" lens

Estimated Life

• Passive cooling achieves L70 at 50,000 hours

Warranty

• 5-Year Limited Warranty

Documents

• Spec Sheet

Labels and Listings

• cULus Listed (US and Canada), wet location listed in protected ceilings
• IP20 - Above finished ceiling; IP65 - Below finished ceiling

• Airtight per ASTM-E283-04

• EMI/RFI emissions FCC CFR Title 47 Part 15 Class A at 120/277V
• Contains no mercury or lead and RoHS compliant
• May be used to comply with State of California Title 24 non-residential code, as a dimmable LED luminaire
• ENERGY STAR® certified, see Certified Light Fixtures database
