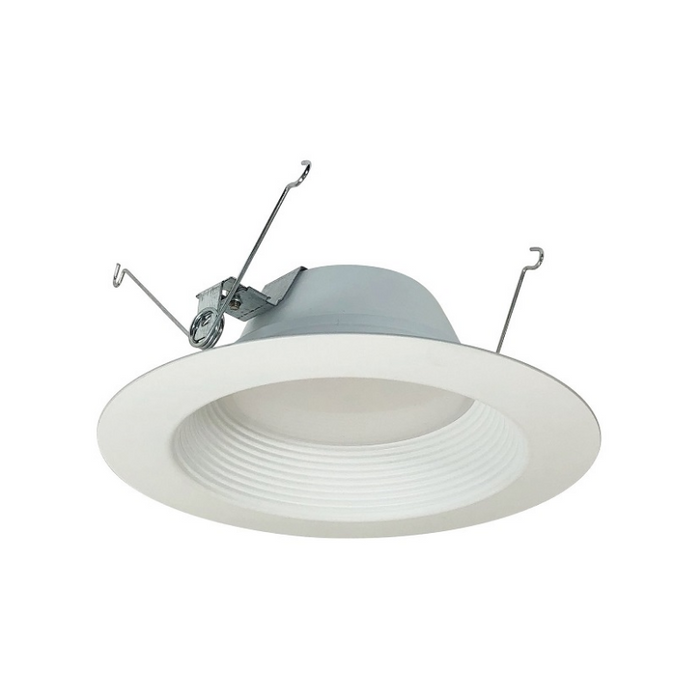

Nora NOXAC-5632 5"/6" 12.5W AC Onyx LED Round Retrofit Baffle, 3500K, 850 Lumens, 120V, White Finish

AC Onyx 5”/6” Retrofit Series requires no driver and allow for a sleek design. Spun aluminum construction provides clean sharp edges and is suitable for use with most 5” and 6” recessed housings. Deep regressed optics and round aperture deliver even and glare-free illumination.

Features

• Retrofit Module only. Housing sold separately.
• Recessed Size: 5"/ 6"
• Finish: White Baffle / White Flange
• Wattage: 12.5W
• Voltage: 120V
• Color Temperature: 3500K
• Lumens: 850 lm
• CRI: 90+
• Dimming: Triac or ELV
• Recessed mount into 5″/6″ housing. Includes medium base socket adapter for easy retrofitting in 5″/6″ recessed housings.
• Quick connector is compatible with dedicated LED housings. Required by some codes in recessed can applications or to meet energy rebate program requirements.

Compatible Housings (Sold Separately):

• New Construction - NFBIC-5LMRATA , NFBIC-6LMRATA , NHIC-5LMRAT  , NHIC-527LMRAT , NHIC-6LMRAT , NHIC-27LMRAT , NHIC-17QAT  , NHIC-27QAT
• Remodel - NHRIC-5LMRAT , NHRIC-527LMRAT , NHRIC-6LMRAT , NHRIC-27LMRAT , NHRIC-17QAT , NHRIC-27QAT

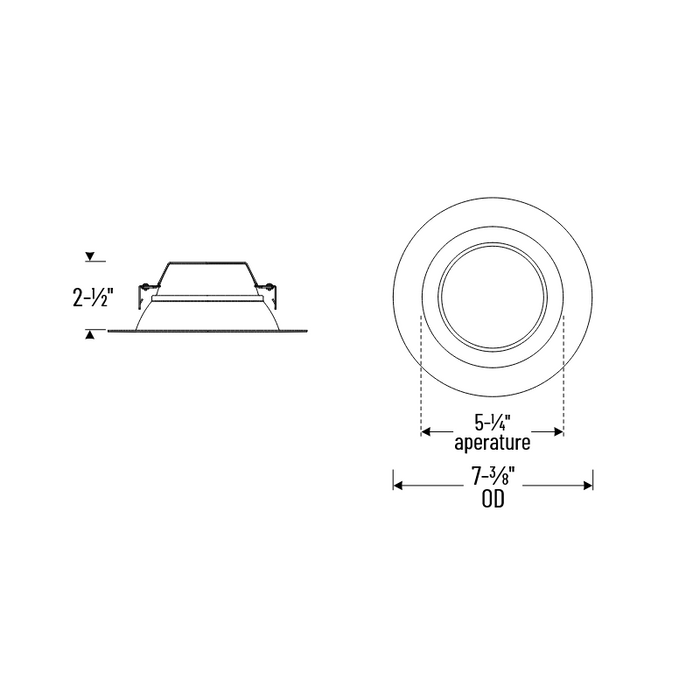

Dimensions

• Width: 7.38"
• Height: 2.5"

Warranty

• 5-Year Limited Warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus classified for Wet Locations
• Meets ASTM-E283 Air-Tight requirements
• FCC compliant
• Certified to the high efficacy requirements of California Title 24 JA8-2022
