Dedicated new construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with LED retrofit luminaires.
- Trim and light bulb sold separately
- Voltage: 120/277V (120V Triac/ELV dimming)
- Shallow IC rated housing for direct contact with insulation
- Quick connect provided for electrical connection to trim
- Junction Box: Prewired 25 cubic inch 0.064" thick galvanized steel with seven 1/2" trade size knockouts, four Romex pryouts, and snap on covers
- Bar Hangers: Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on frame.

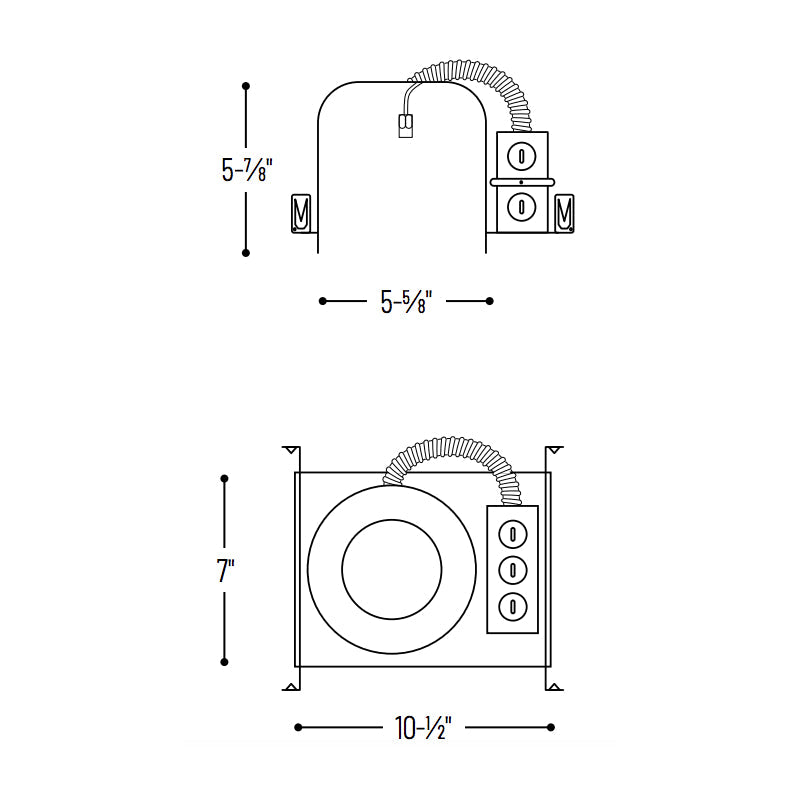

- Length: 10-1/2"
- Height: 7"
- Height: 5-7/8"
Specified by reflector
