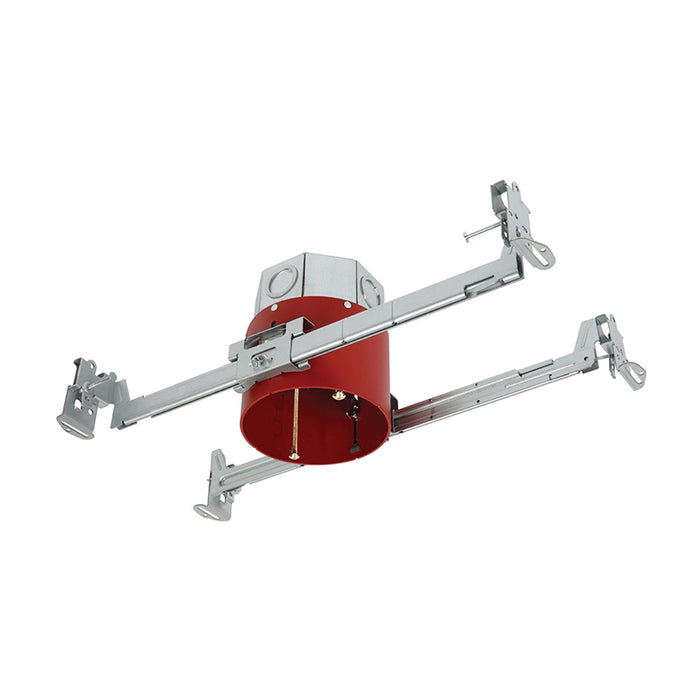

Halo JB4FR2 4" New Construction Junction Box Housing
by Halo

Halo JB4FR2 4" New Construction Junction Box Housing

SKU JB4FR2
$0.00 - $0.00
$23.55
$23.55 - $23.55
$23.55
Availability:
in stock, ready to be shipped

Estimated Shipping Widget will be displayed here!

OVERVIEW

The HALO 4” Junction Box Housing is a highly versatile solution that offers multiple options in a single package. This adaptable housing is designed to work seamlessly with all 4” HALO Recessed LED Trims and any HALO Surface Mount Fixture.

Compatible Downlights (Sold Separately):

Features

  • Recessed Size: 4"
  • For use with HALO LED Trims/Modules or Surface Mount Fixtures
  • Suitable for use in fire-rated ceiling construction that requires up to 2-hour protection per International Building Code Section 714
  • Suitable for direct contact with air-permeable insulation
  • Pass-N-Thru hangar bars allow for toolless shortening in tight spaces (7" to 24")
  • All-Nail! preinstalled nail and integral T-grid clips allow for easy single-person installation
  • Suitable for AIR-TITE and wet locations based on the installed LED trim/module or surface mount fixture
  • Can also be used for ceiling fans (rated for loads up to 50 lbs)

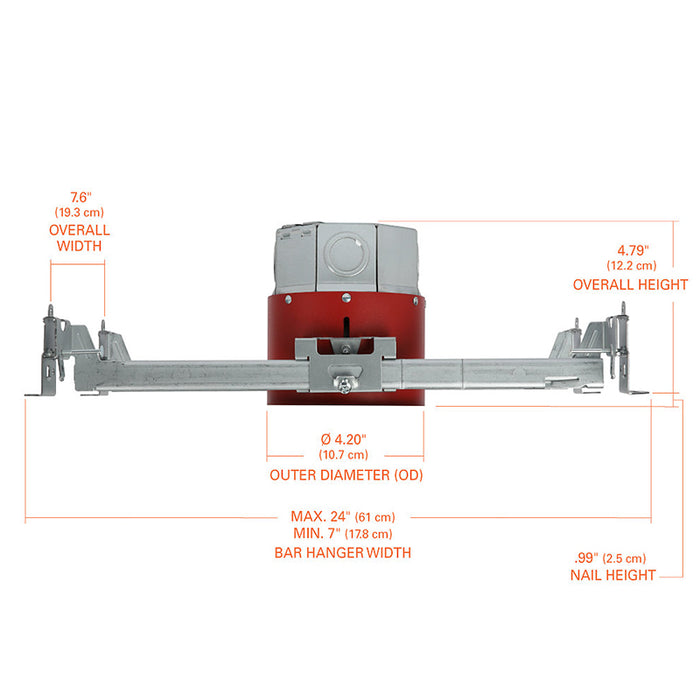

Dimensions

  • Bar Hanger Width: 24" max
  • Overall Width: 7.6"
  • OverallHeight: 4.79"

Warranty

  • 5 Year Warranty

Documents

Labels:

}

HALO Fire-Safe Solutions LED Downlights

HALO offers a full line of fire-rated canless downlights, housings, and a hybrid junction box housing. They’re engineered and tested to maintain the ceiling’s fire rating without requiring extra steps. These HALO solutions install with the same pro-focused features you already rely on, delivering both code compliance and jobsite efficiency.

One final pro tip: always verify the fixture’s listing and test standard (such as UL 263 or ASTM E119) and document it for inspectors. Even a quick photo of the product label can save you a costly return trip.

See fire-rated HALO LED Downlights.

Untitled design-High-Quality (51).jpg__PID:4957ac48-4cc6-4ceb-8897-826251aabd1a

JB4 Hybrid Junction Box Housing  (Fire Safe Solution)

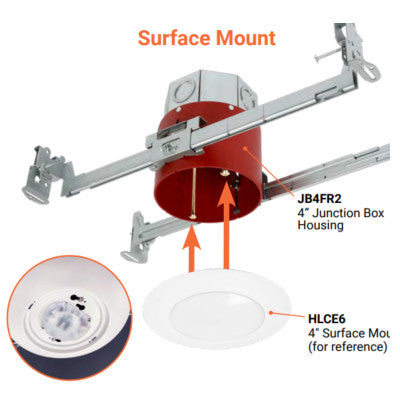

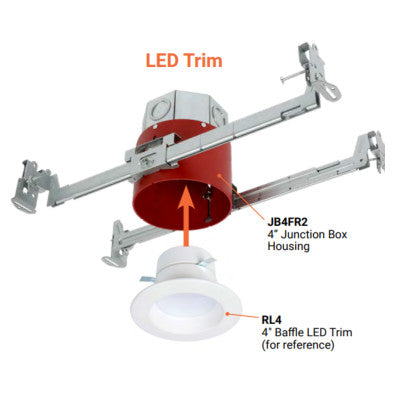

Install any HALO 4” LED Trim or any sized HALO Surface Mount Downlight into the HALO Junction Box Housing.
