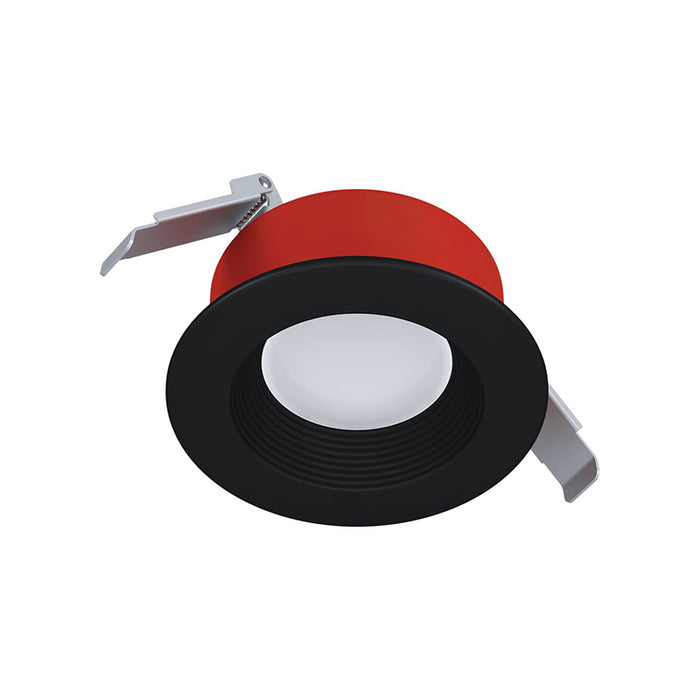

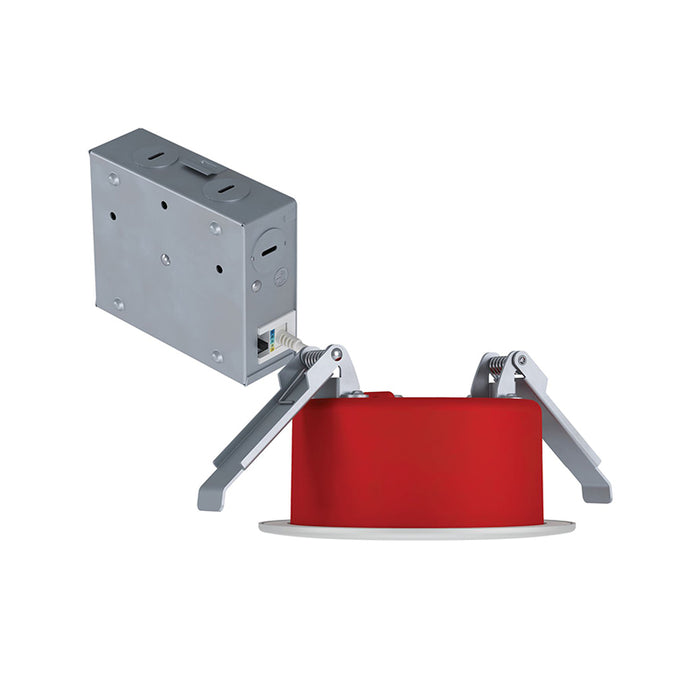

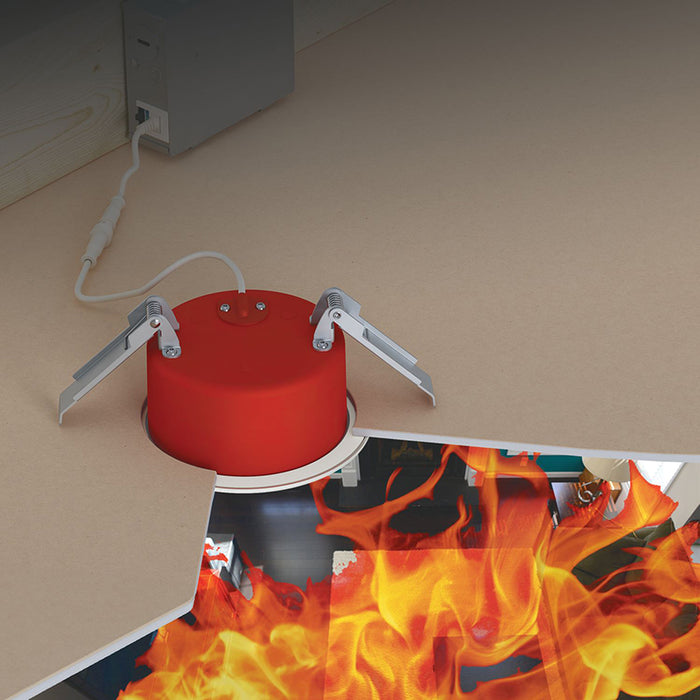

The HALO RLFR Fire Rated Canless LED Downlights are safe, tested, and trustworthy fixtures that meet the latest fire rating construction codes with a 2-hour certification per testing requirement UL263. The spring-loaded arms securely hold these canless fixtures directly to fire-rated ceilings for a secure, air-tite fit. The RLFR fixtures are 5-color field-seleCCTable™ and offer flicker-free 5% dimming making for easy lighting customization. HALO RLFR fixtures are the ideal solution for apartment buildings, townhomes, condos, and commercial applications where safety is paramount.

Features

• Title 24 compliant, can be shipped to California locations
• Recessed Size: 4"
• Lens & Trim: Recessed baffle trim and curved diffuse lens
• Finish: Matte White, Matte Black
• Wattage: 11W
• Voltage: 120V
• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable
• Lumen: 900 to 1000
• CRI: 90+
• Dimming: 5% Phase Cut LE/TE Dimming
• Suitable for installation in IC (insulation contact) or non-IC fire-rated applications
• Canless springs fit fire-rated ceilings between 0.5" - 2" thick

Dimensions

• Width: 5.04"
• Height: 2.98"
• Cutout: 4.25"


Estimated Life

• Provides 50,000 hours of maintenance free operation


Warranty

• 5 Year Warranty

Documents

• Spec Sheet
• Instruction Sheet

Accessories:

• Frame in Kit: MF4RC,  HL4RSMF (Sold Separately)
• Smash Plate: SP346RS (Sold Separately)
