Halo H550FR2ICATD010 5" Fire Safe New Construction Housing
by Halo

Halo H550FR2ICATD010 5" Fire Safe New Construction Housing

SKU H550FR2ICATD010
$0.00 - $0.00
$57.95
$57.95 - $57.95
$57.95
Availability:
In stock

Estimated Shipping Widget will be displayed here!

OVERVIEW

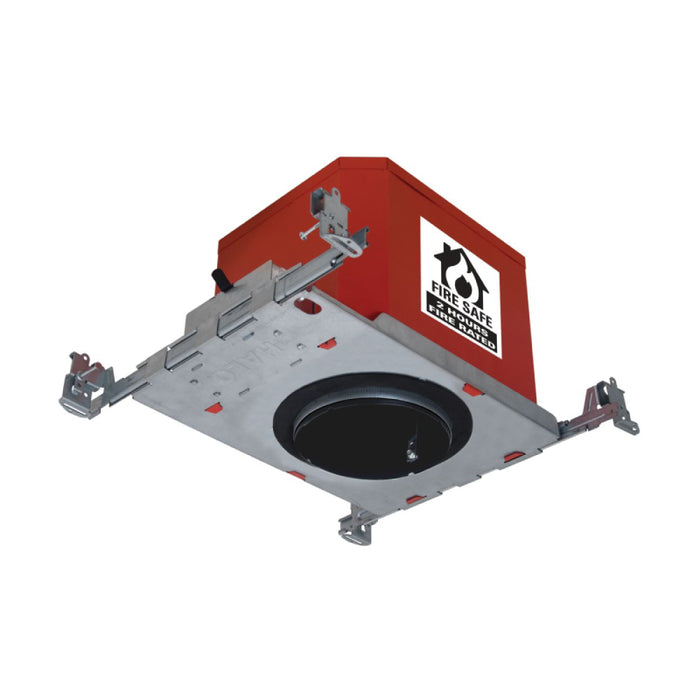

5” Fire Safe Housing. 2 Hours Fire Rated

Compatible Trims & Modules (Sold Separately):

Features

  • Housing Only. LED integrated trim or LED module and trim Sold Separately.
  • Recessed Size: 5"
  • Voltage: 120-277V
  • For use with LED integrated trims or modules
  • Fire Rated for up to 2 hours in accordance
  • Suitable for multi-family and mixed-use applications
  • Air-tite and suitable for direct contact with insulation
  • Compatible with 5-inch 120-277V HALO LED modules
  • Compatible with phase cut and 0-10V dimmable modules
  • Compatible HALO Trims: LT56, LA56, RL56, RA56, ML56, RSQ5, SLD6, SMD6

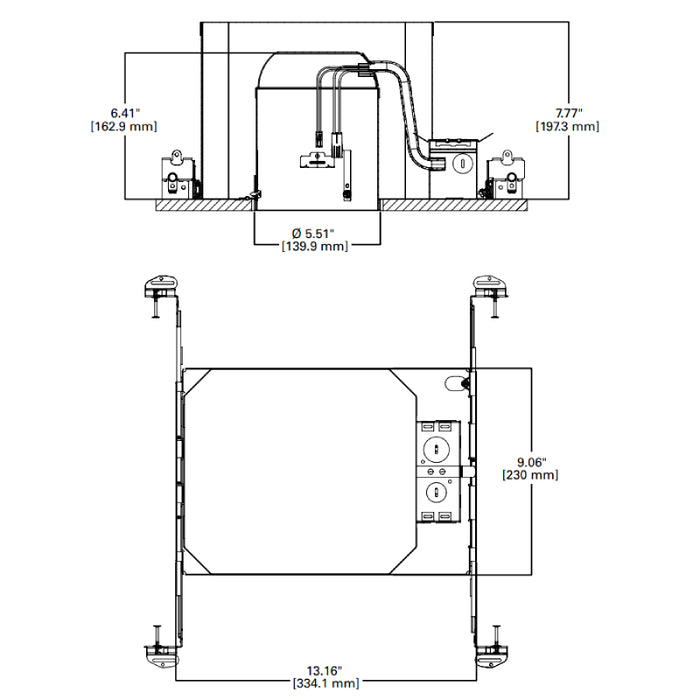

Dimensions

  • Length: 13.16"
  • Width: 9.06"
  • Height: 7.77"

    Warranty

    • 5-year limited warranty.

    Documents

    Labels:



    }

    HALO Fire-Safe Solutions LED Downlights

    HALO offers a full line of fire-rated canless downlights, housings, and a hybrid junction box housing. They’re engineered and tested to maintain the ceiling’s fire rating without requiring extra steps. These HALO solutions install with the same pro-focused features you already rely on, delivering both code compliance and jobsite efficiency.

    One final pro tip: always verify the fixture’s listing and test standard (such as UL 263 or ASTM E119) and document it for inspectors. Even a quick photo of the product label can save you a costly return trip.
