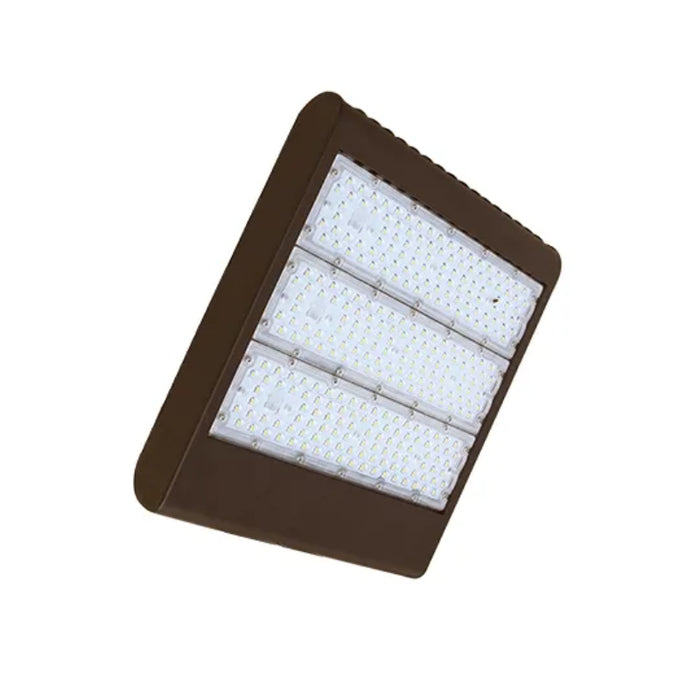

Westgatw LF3-HL 230W High Lumen Flood Light, 480V

Ideal for general site lighting, alleys, loading docks, doorway, pathway, and parking areas.

Features

• Finish: Dark Bronze
• Wattage: 230W
• Voltage: 480V

• Color Temperature: 4000K
• Lumen: 30000
• CRI: ≥ 82
• Beam Angle: Type 2=120°X90°, Type 3=140° x80°, Type 4=140°x100°
• Dimmable: 0~10V Dimming
• Lens: TYPE II, III and IV Optic Lens
• LED: Lumileds Luxeon 3030 High Flux LED
• Solid State Lighting Technology for Long Life
• Cord Type: 6’ SJTW 18/3 AWG cable

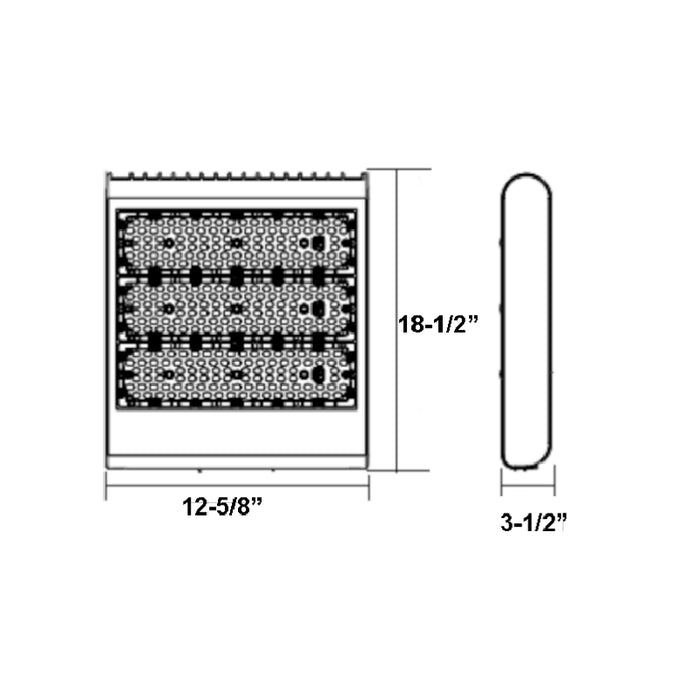

Dimension

• Width: 12.63"

• Height: 18.5"
• Depth: 3.5"


Estimated Life

• 70,000 Hours Rated Life

Warranty

• 7-Year Limited Warranty
