Westgate WEC-3PR-60 0-10V PIR 120-277V Knuckle Sensor

WestgateSKU: WEC-3PR-60

In stock (197 units), ready to be shipped

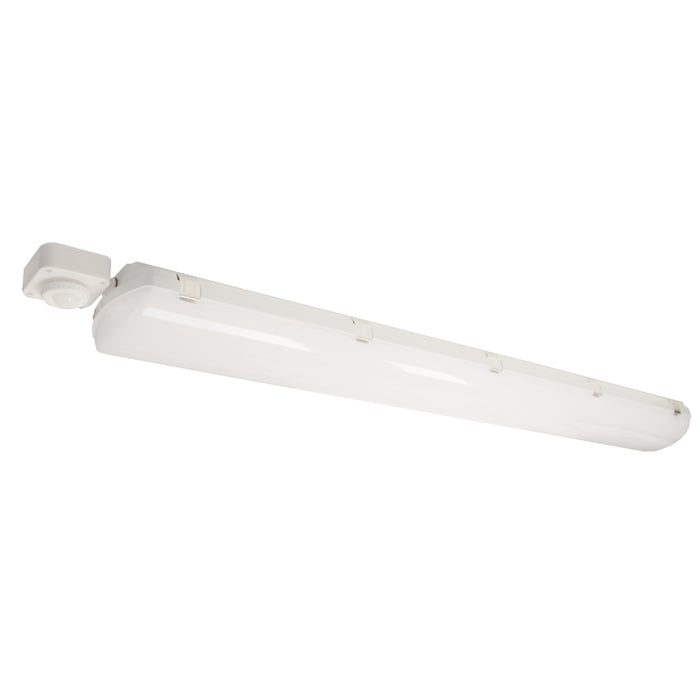

The product mounts is an outdoor lighting fixture and provides multi-level control based on motion and/or daylight contribution. It controls 0-10 V DC LED drivers or dimming ballasts as well as non-dimming ballasts and, with an Fresnel Lens, is rated for wet and cold locations. All control parameters are adjustable via a wireless configuration tool capable of storing and transmitting sensor profiles.


  • 120/277 VAC, 50/60Hz
  • 800W/1200W Max Tungsten,Ballasts,LED driver
  • 1/6HP
  • Detect Area: 360°, maximum coverage 60’ diameter from 40’ height
  • High mode: 0-10 V; default 10 V
  • Low mode: Off, 0-9.8 V; default 1 V
  • Operating temperature: -104-158°F (-40-70°C)
  • Operating Humidity: 20-90%
