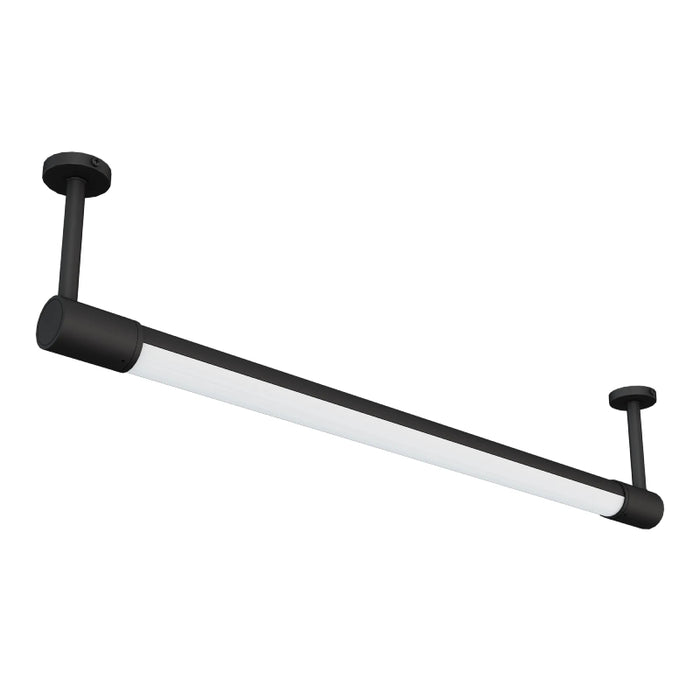

Westgate TSR 2-ft 15W LED Tubular Rotatable IP66 Sign Lights with Mount Canopy, 120–277V, 5CCT Selectable

Features

• Finish: Black, White
• Wattage: 15W
• Voltage: 120-277VAC 50/60Hz
• Color Temperature: 2700K / 3000K / 3000K / 4000K / 5000K Selectable
• Lumen: 1395
• CRI: ≥ 80
• Beam angle: 80°, 133°
• Dimmable: 0 ~ 10V Dimming
• Driver Type: Constant current, isolated
• Inrush Current: Low inrush design suitable for multiple fixtures on a circuit
• Class: Class I luminaire
• Housing Material: Extruded aluminum body
• Mounting Arms: Dual arms with locking gripper system
• Rotation Locking: Mechanical locking once aimed
• Wall mount standard using surface canopy
• Ceiling mount capable using mounting base plate
• Dual-arm mounting provides stability for longer runs
• Field-adjustable tilt and rotation without opening the optical chamber
• Gasketed construction to prevent water and dust ingress

Dimensions

• Length: 27.76"
• Width: 1.97"

• Height: 5.79"

Estimated Life

• 50,000 hours

Warranty

• 5-Year Warranty

Documents

• Spec Sheet - 80°
• Spec Sheet - 133°
• Instruction Sheet

Labels and Listings

• Wet Location
• IP Rating: IP66
