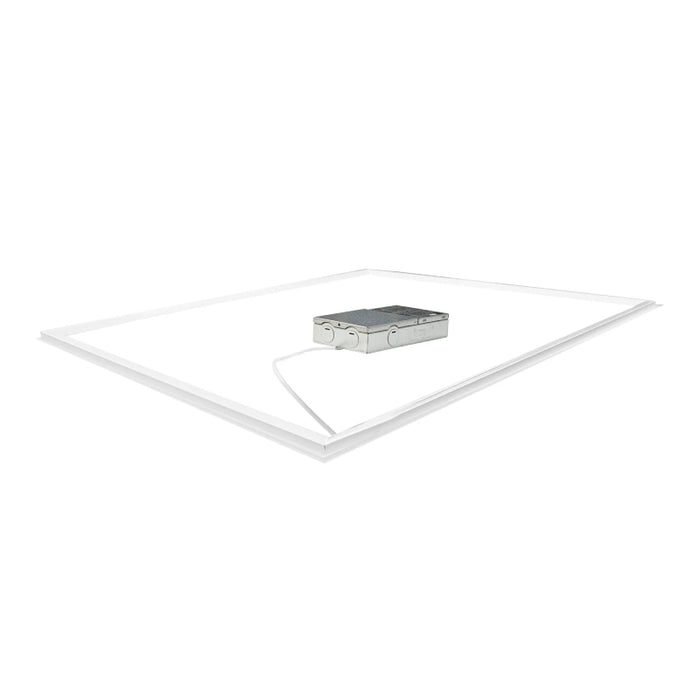

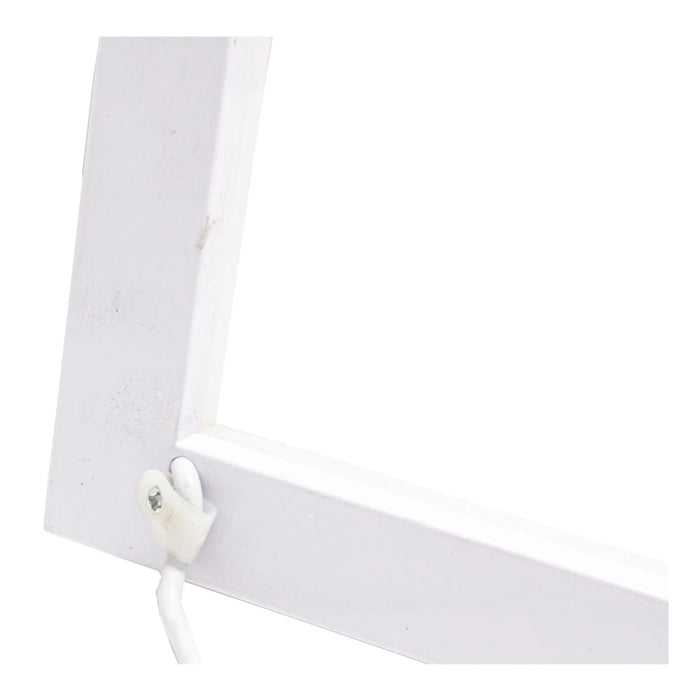

Westgate TGL LED Remote Controlled T-Bar Grid Light, RGB, 120-277V, 0-10V Dimming

The LED Frame Light luminaire is a new design that creates innovative and outstanding lighting performance available to replace the 2x2 LED panel. It has a modern design and is easy to install. Ideal for new construction and remodel/replacement of fluorescent troffers or LED panels in commercial office spaces, schools, healthcare facilities, and retail merchandising areas.

Features

• Finish: White
• Size: 2x2, 2x4

• Wattage:
  • 2x2: 40W
  • 2x4: 60W
• Voltage: 120-277V
• Color Temperature: RGB
• Lumens:
• • 2x2: 4000
  • 2x4: 6000
• CRI: ≥80
• Dimmable: 0~10V Dimming
• Extruded Aluminum with White Painting.
• Surge Protector

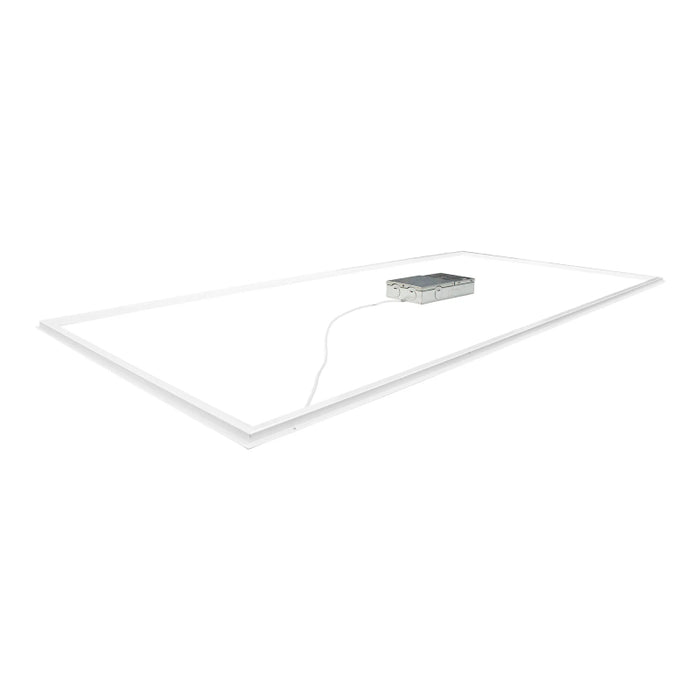

• Driver/Junction Box is Separate and Connects to the Fixture with a 3Ft. Dongle
• Driver/Junction Box Installs On Adjacent Grid, On Top, Using Your Choice Of T-bar Bracket or Westgate T-bar Bracket Model (ELB-TBAR1)

Dimension

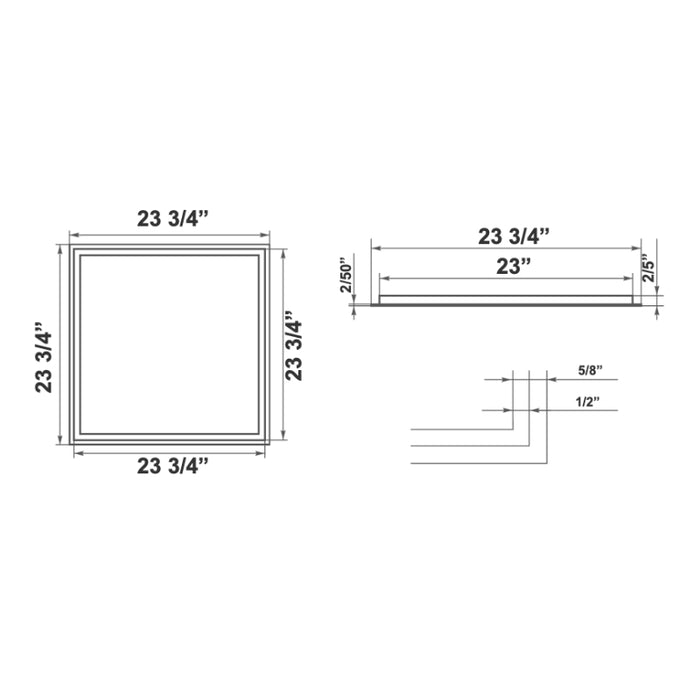

• 2x2: 23.75"(L) x 23.75" (W) x 0.63"(H)

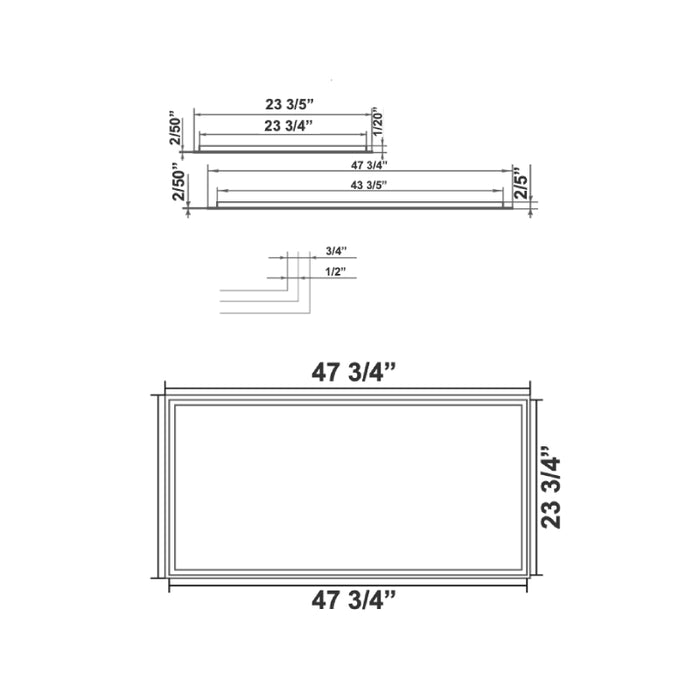

• 2x4: 47.75"(L) x 23.75" (W) x 3.78"(H)


Estimated Life

• Rated life: 50,000 hrs


Warranty

• 5-Year Warranty

Document

• Spec Sheet - 2x2
• Spec Sheet - 2x4
