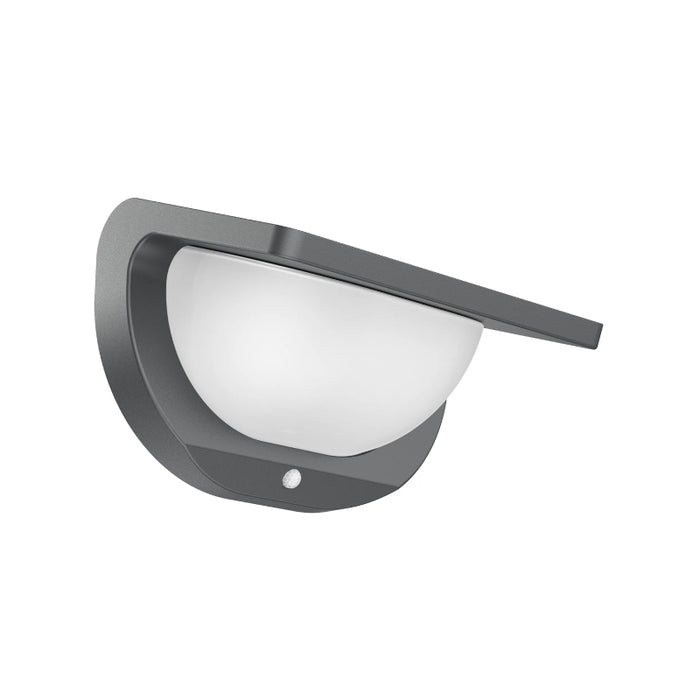

Westgate SOLW-TSP-MS 3W LED WallRay Solar Luminaire, 120-277V, 4000K

The WallRay Solar Luminaire features programmable remote control and an integrated motion sensor for flexible and energy-efficient outdoor lighting. Powered by solar energy, it provides convenient wireless operation with adjustable lighting modes for reliable wall-mounted illumination.

Features

• Finish: Black
• Wattage: 3W

• Voltage: 120-277V

• Color Temperature: 4000K
• Lumens: 380
• CRI: 80+

• Beam Angle: 135°
• Battery:
  • Battery Type: Ternary lithium battery
  • Voltage: 3.7V
  • Capacity: 2.6Ah
  • Energy: 9.62Wh
  • Operating Time: Full power 3–3.5 hours / Intelligent mode up to 1.5 days
  • Charging Time: 2.6 hours (under full sunlight conditions)
• PIR:
  • 110° horizontal sensing angle
  • Recommended mounting height 6.5–8 ft
  • 30-second motion activation
  • Detection range up to 16 ft

• No trenching or utility wiring required
• Zero electricity operating cost
• Ideal for residential and commercial perimeter lighting

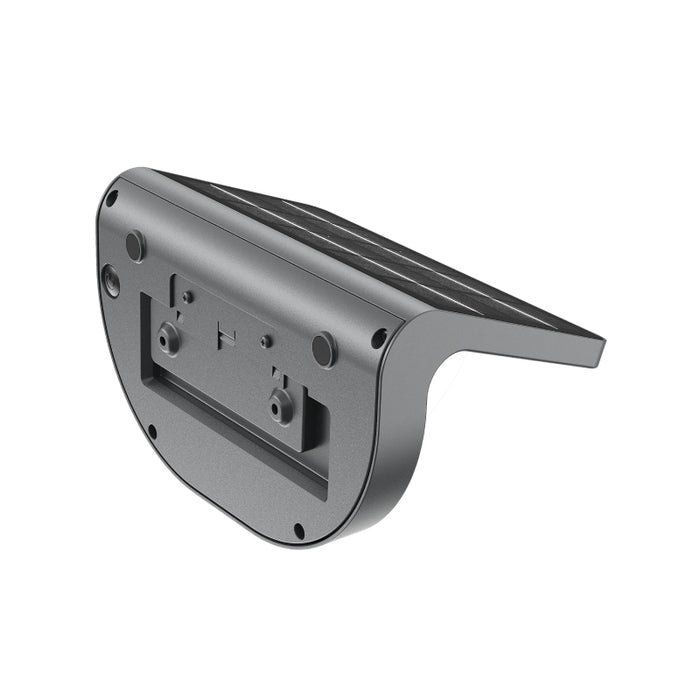

• Fast surface mount installation
• IK08 impact-resistant housing
• C3 corrosion-resistant powder coating
• Type IV Very Short distribution (102° x 151° tilt 35°)

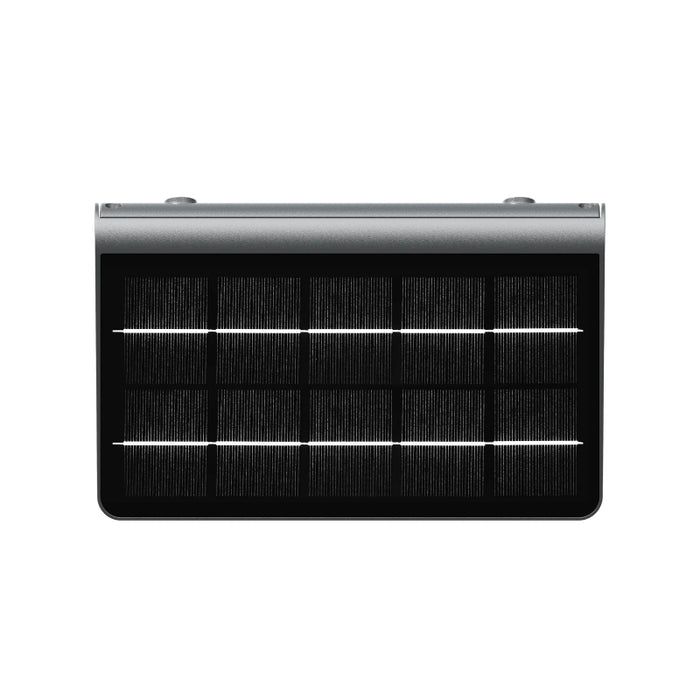

• Mono crystalline solar panel

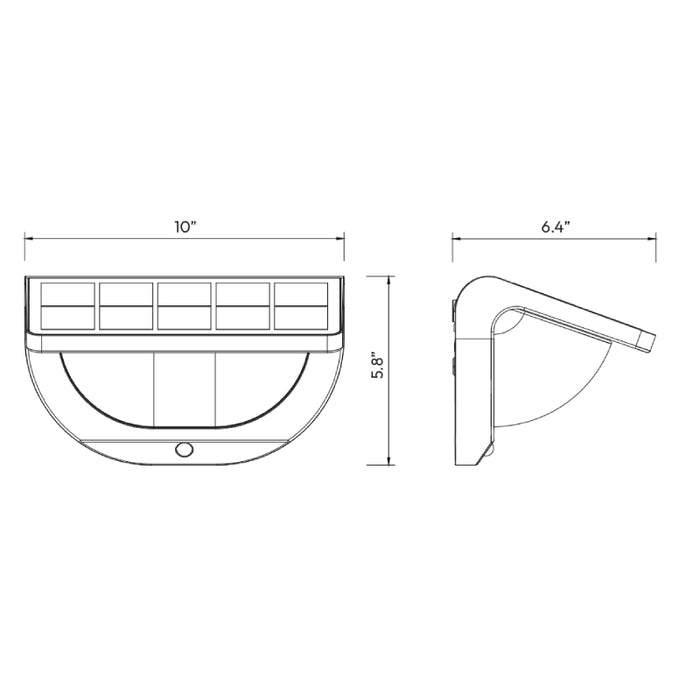

Dimensions

• Width: 10"
• Height: 5.8"
• Depth: 6.4"

Estimated Life

• 50,000 hours

Warranty

• 5-Year Warranty

Documents

• Spec Sheet

• Instruction Sheet

Labels and Listings:

• IP65 weatherproof construction
