Westgate SOLW-FSP-MS 3W LED LedgeRay Solar Luminaire, 120-277V, 4000K

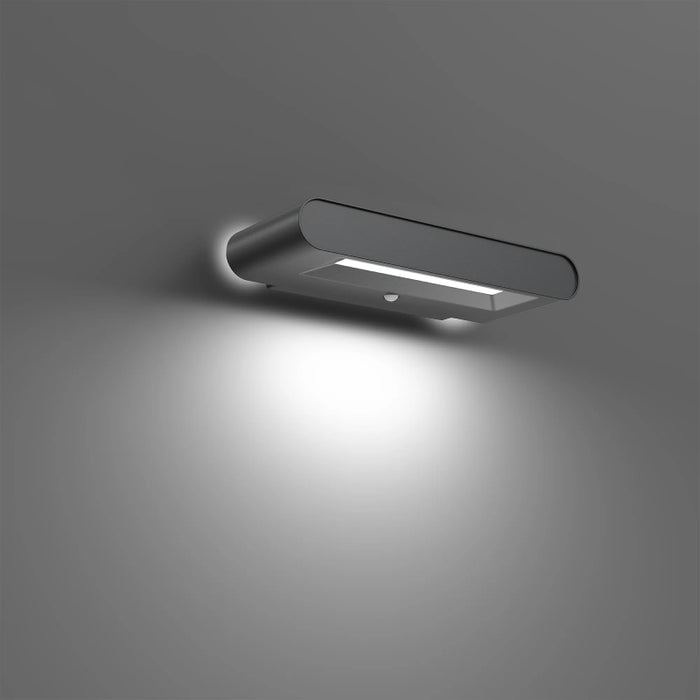

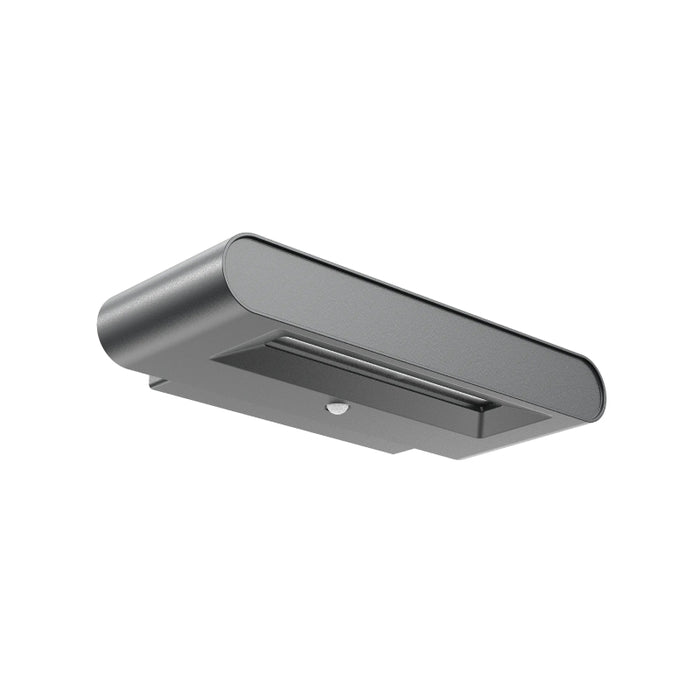

The LedgeRay Solar Luminaire features a programmable remote control and integrated motion sensor, providing energy-efficient solar-powered illumination. Designed for versatile outdoor applications, it offers convenient wireless control and adjustable lighting modes for reliable performance.

Features

• Finish: Black
• Wattage: 3W

• Voltage: 120-277V

• Color Temperature: 4000K
• Lumens: 345
• CRI: 80+

• Beam Angle: 135°
• Battery:
  • Battery Type: Ternary lithium battery
  • Voltage: 3.7V
  • Capacity: 2.6Ah
  • Energy: 9.62Wh
  • Operating Time: Full power 3–3.5 hours / Intelligent mode up to 1.5 days

  • Charging Time: 4.2 hours (under full sunlight conditions)

• PIR:
  • 110° horizontal sensing angle
  • Recommended mounting height 6.5–8 ft
  • 30-second motion activation
  • Detection range up to 16 ft
• No trenching or utility wiring required
• Zero electricity operating cost
• Ideal for residential and commercial perimeter lighting
• Fast surface mount installation
• IK08 impact-resistant housing
• C3 corrosion-resistant powder coating
• 90° symmetrical light distribution

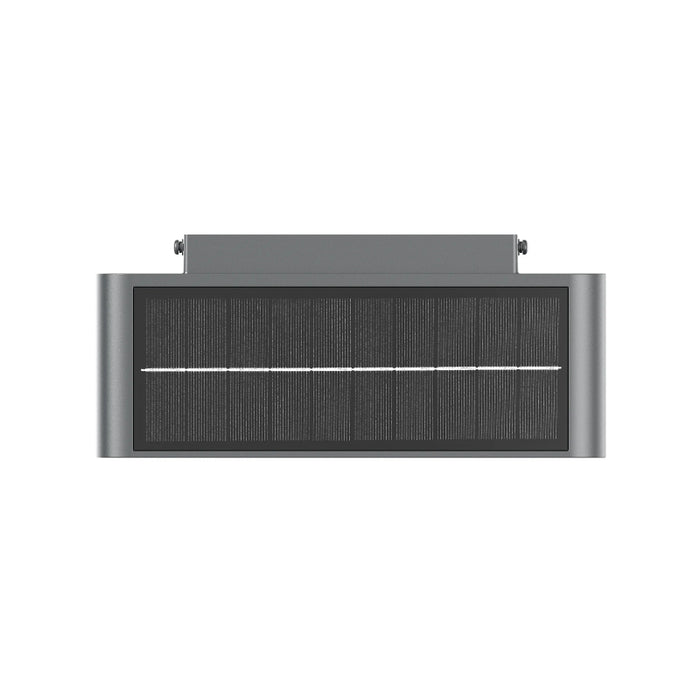

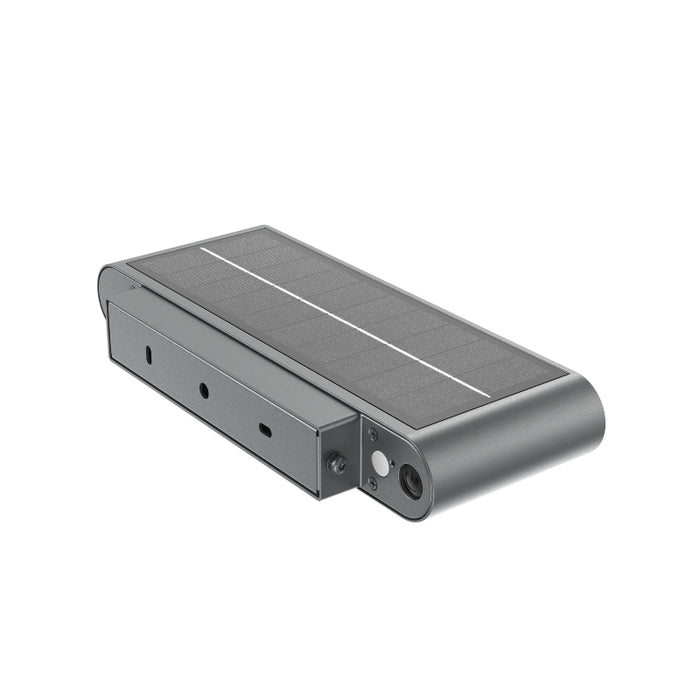

• Mono crystalline solar pane
• Replaceable lithium battery design

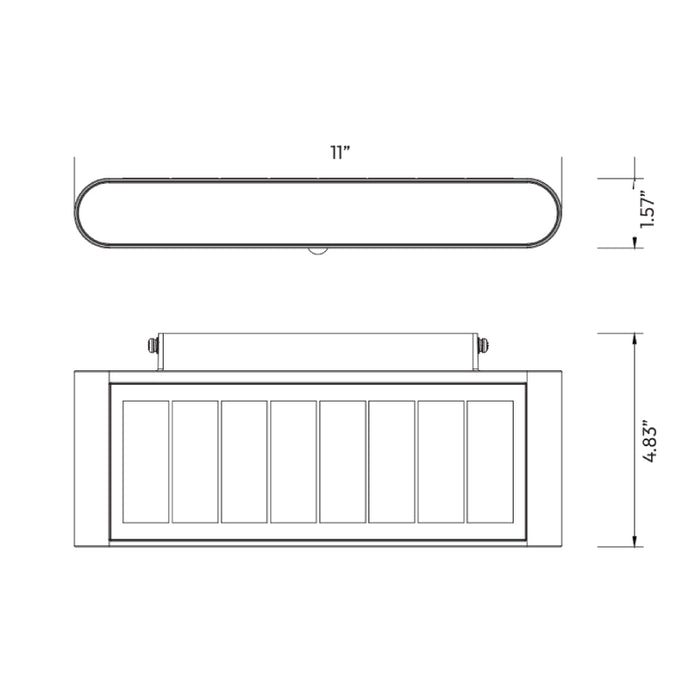

Dimensions

• Width: 11"
• Height: 1.57"
• Depth: 4.83"

Estimated Life

• 50,000 hours

Warranty

• 5-Year Warranty

Documents

• Spec Sheet

• Instruction Sheet

Labels and Listings:

• IP65 weatherproof construction
