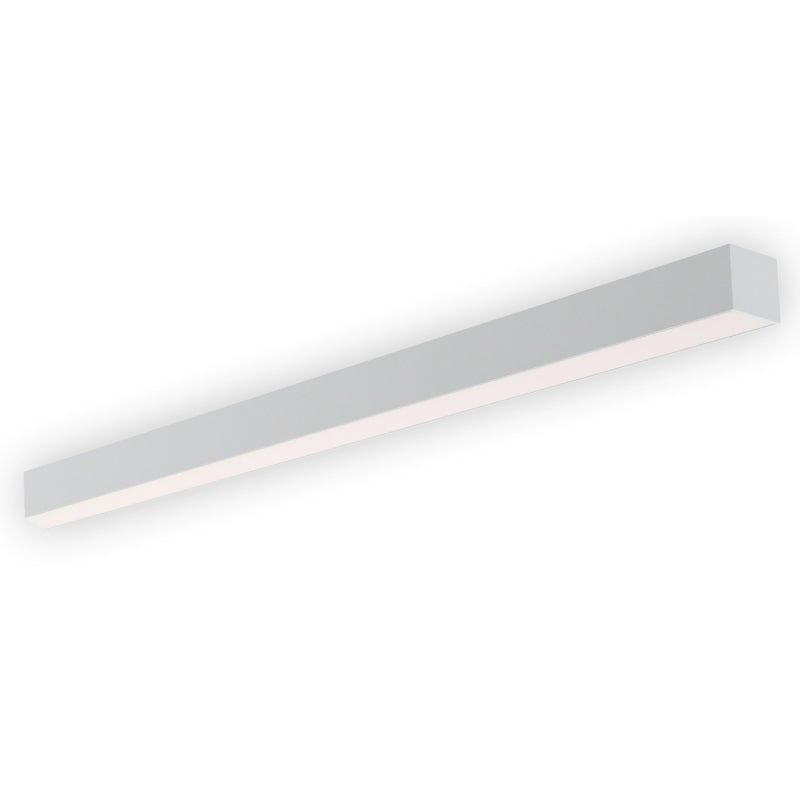

Westgate SCXT 4ft 20W/30W/40W LED Direct Linear Light, CCT, Flat Lens

Linear Lighting can customize your desired length, look, and color temperature to either be suspended, surface mounted, or recessed to suit your needs. Ideal for Storage rooms, Offices Conference rooms, Retail Reception areas, Hallways Education facilities, hotels, and restaurants.

Features

• Wattage: 20W/30W/40W
• Voltage: 120-277 VAC
• CCT Selectable: 3000K/3500K/4000K(Selectable switch inside fixture)
• Color Temperature/Lumens:
• 3000K/2200 lm
• 3500K/3300 lm
• 4000K/4400 lm
• CRI: ≥80
• Beam Angle: 104.8°(H) x 100.5°(V)
• Dimming: 0~10V Dimmable
• Lens Type: Opal Polycarbonate Lens
• Low Profile Modern Design
• Aluminum housing with matte white finish
• Lens Snaps into Housing

• Mounting Options: Surface, Suspended, Recessed
• Each Fixture Comes With a 6-1/2” Pre-Installed Cable With Male RJ11 Connector Plugs Right Into The Driver
• External Driver needed. Calculate the total wattage and pick adequate driver(s) as power supply. each driver has 4 ports for 4 separate fixtures
• Do not exceed the maximum wattage of the driver
• Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions

Dimensions:

• Length: 48"

• Width: 1"
• Height: 1.3"
• Product Weight: 1.76 lbs
