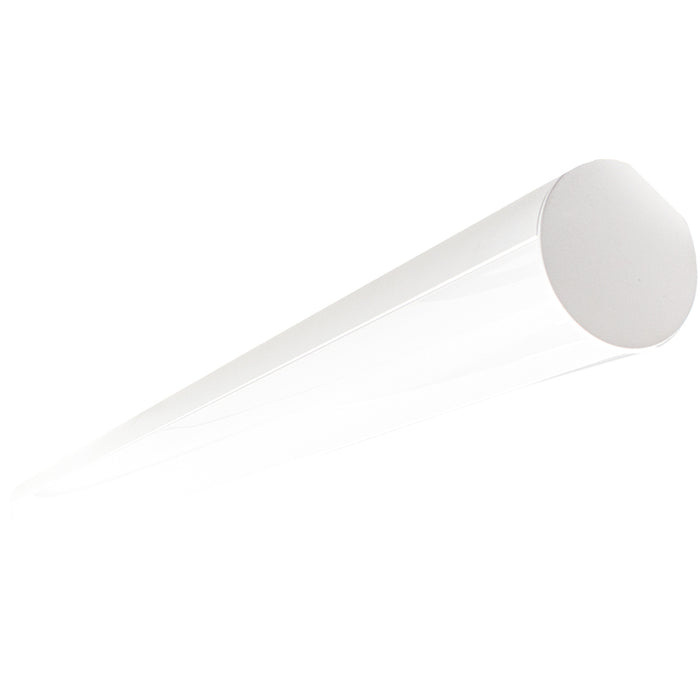

Westgate SCXR Series LED Linear Light, 4CCT Selectable, 0-10V Dimmable, 120-277V

Linear Lighting can customize your desired length, look, and color temperature to either be suspended, surface mounted, or recessed to suit your needs. Ideal for Storage rooms, Offices Conference rooms, Retail Reception areas, Hallways Education facilities, hotels, and restaurants.

Features

• Length: 2-ft, 4-ft, 8-ft
• Finish: White, Black
• Wattage:
  • 2-ft: 20W
  • 4-ft: 40W
  • 8-ft: 80W
• Voltage: 120-277 VAC
• CCT Selectable: 3000K/3500K/4000K/5000K (Selectable switch inside fixture)
• Lumens:
  • 2-ft: 2200
  • 4-ft: 4400
  • 8-ft: 8800
• CRI: ≥80
• Beam Angle: 104.8°(H) x 100.5°(V)
• Dimming: 0-10V Dimming Down to 5%
• Lens Type: Opal Polycarbonate Lens
• Low Profile Modern Design
• Aluminum housing with matte white finish
• Lens Snaps into Housing

• Make Different Connections Via L Joints on Both Ends
• Mounting Options: Surface, Suspended, Wall, Recessed

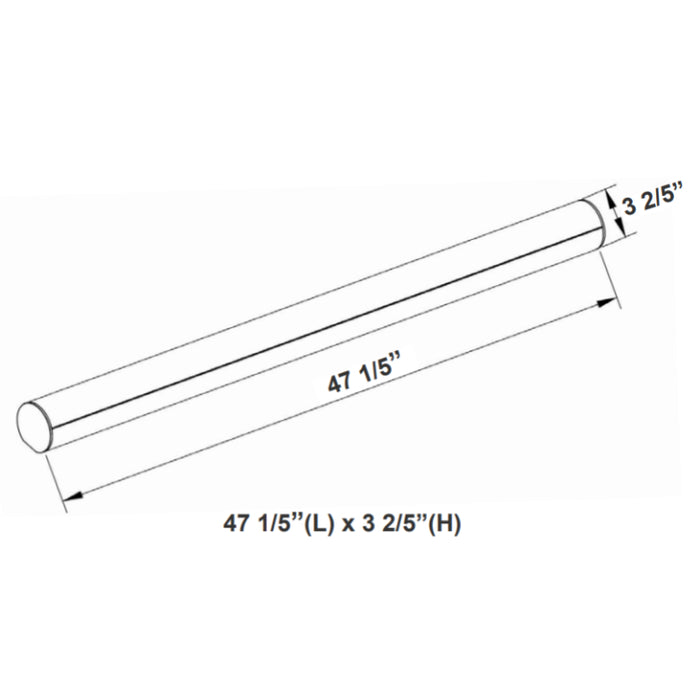

Dimensions

• 2-ft: 24"L x 3.4" H
• 4-ft: 47.2" L x 3.4" H
• 8-ft: 94" L x 3.4" H

Add On Options (Sold Separately):

• Indirect Add-On Option- For 4-ft
• Indirect Add-On Option- For 8-ft

Estimated Life

• 50,000 Hours Rated Life

Warranty

• 5-Year Warranty

Documents

• Spec Sheet - 2-ft
• Spec Sheet - 4-ft
• Spec Sheet - 8-ft
• Instruction Sheet

Accessory (Sold Separately):

• Corner Module: SCXR-LNL

Labels and Listings

• UL Listed
• IP Rating: IP54
