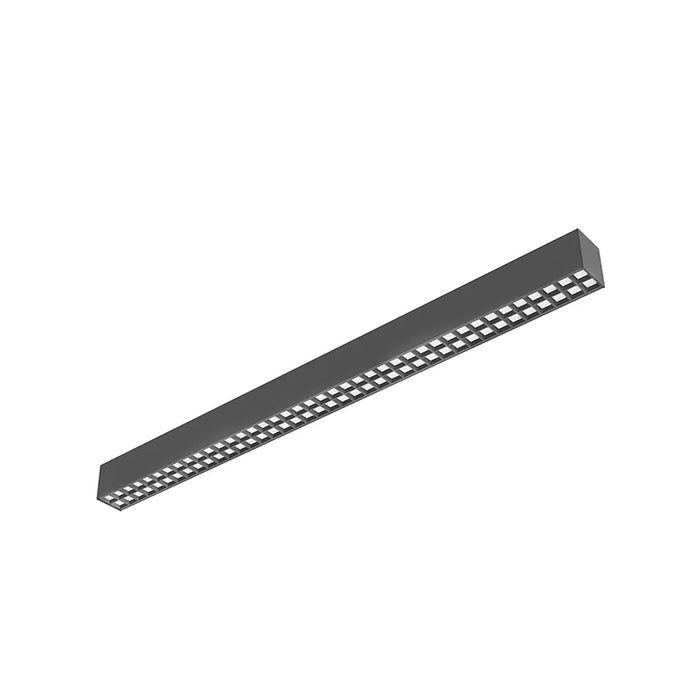

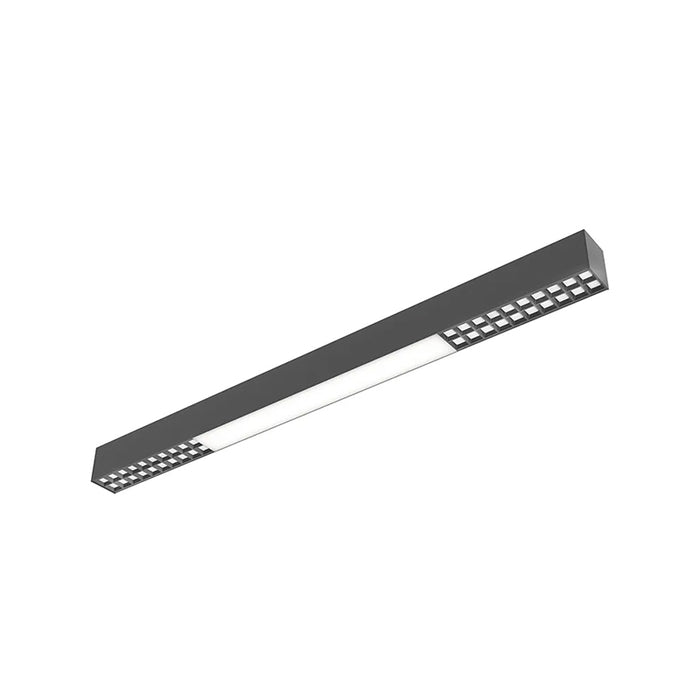

Westgate SCXA Series Architectural 2-3/4" LED Optic & Combined-Distribution Linear Light, 3CCT & Power Selectable, 120-277V

The SCX series offers the best and the most comprehensive selection for linear lighting. The various available lengths and widths allow the creation of the desired shape to elevate the areas aesthetics to a unique and modern look while providing an impressive illumination for the occupants. Ideal for, retail locations, offices, lobbies, conference rooms, reception areas, hallways, educational facilities, hotels, and restaurants.

Features

• Length: 2-ft, 4-ft, 6-ft, 8-ft
• Options: With Optic Lens, Without Optic Lens
• Finish: Black, White
• Wattage:
  • 2-ft : 10W/15W/20W
  • 4-ft : 20W/30W/40W
  • 6-ft : 40W/50W/60W
  • 8-ft : 60W/70W/80W
• Voltage: 120-277V
• Color Temperature: 3000K / 3500K / 4000K Selectable
• Lumens:
  • 2-ft : 1000/1500/2000
  • 4-ft : 2000/3000/4000
  • 6-ft : 4000/5000/6000
  • 8-ft : 6000/7000/8000
• CRI: 80+
• Dimmable: 0-10V Dimming Down to 5%
• Beam Angle: 104.8°(H) x 100.5°(V)
• Lens Snaps into Housing
• Make Different Connections Via T/L/X Joints on Both Ends
• Mounting Options: Surface, Suspended, Wall, Recessed

Dimensions

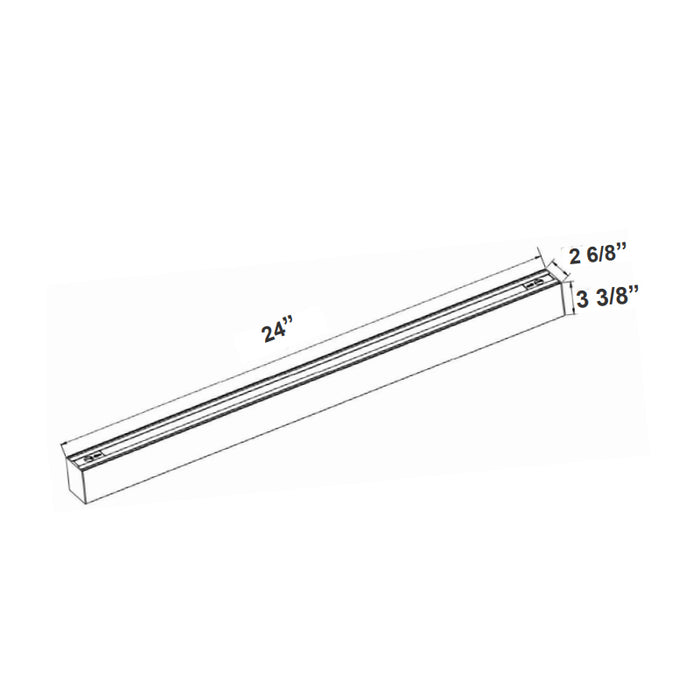

• 2-ft : 24" L x 2.75" W x 3.38" H

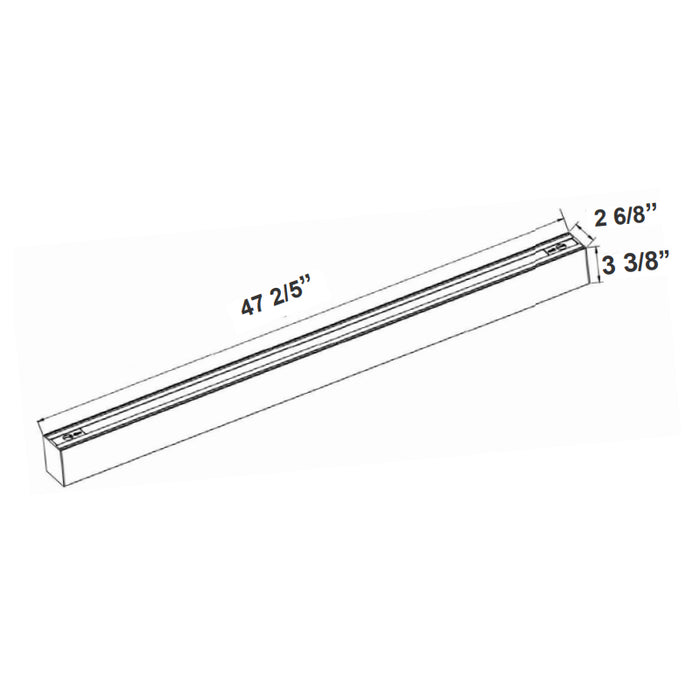

• 4-ft: 47.4" L x 2.75" W x 3.38" H

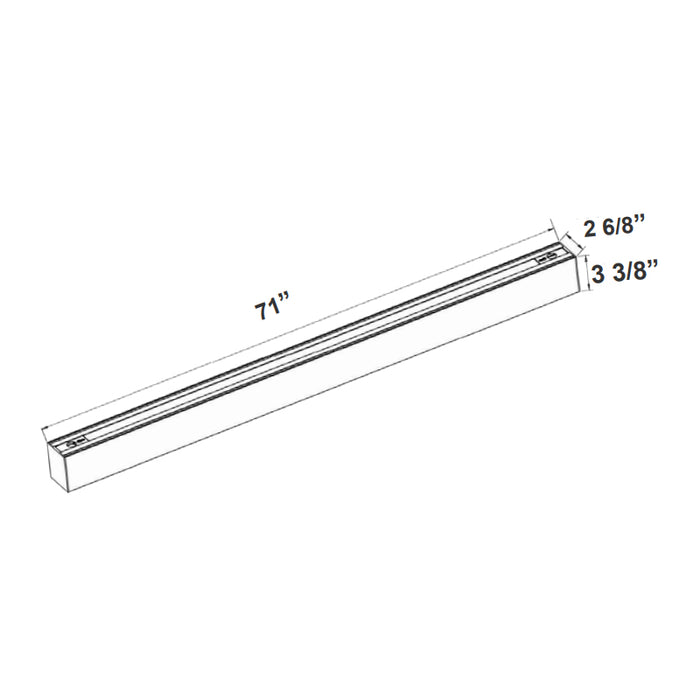

• 6-ft : 71" L x 2.75" W x 3.38" H

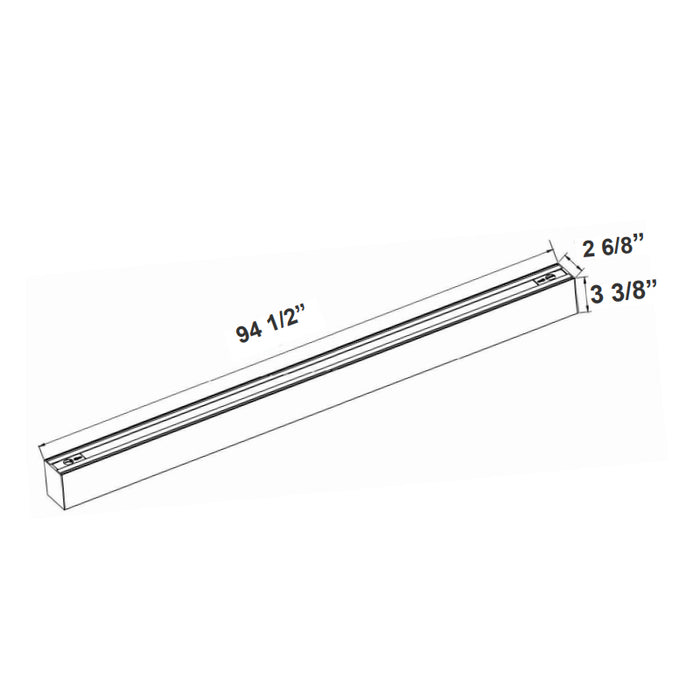

• 8-ft : 94.5" x 2.75" W x 3.38" H

Add On Options (Sold Separately):

• Wall Mount Backets - For 2-ft
• Wall Mount Backets - For 4-ft
• Wall Mount Backets - For 6-ft
• Wall Mount Backets - For 8-ft
• Recessed Mount with Flange - For 2-ft
• Recessed Mount with Flange - For 4-ft
• Recessed Mount with Flange - For 6-ft
• Recessed Mount with Flange - For 8-ft
• Flangless Recess Mount in Drywall - For 2-ft
• Flangless Recess Mount in Drywall - For 4-ft
• Flangless Recess Mount in Drywall - For 6-ft
• Flangless Recess Mount in Drywall - For 8-ft
• T-Bar Installation
• Indirect Add-On Option- For 4-ft
• Indirect Add-On Option- For 6-ft
• Indirect Add-On Option- For 8-ft
• Suspension Rod Kits (SET OF 2)

Estimated Life

• 50,000 Hours Rated Life

Warranty

• 5-Year Warranty

Documents

• Spec Sheet - 2-ft with Optic Lens
• Spec Sheet - 2-ft without Optic Lens
• Spec Sheet - 4-ft with Optic Lens
• Spec Sheet - 4-ft without Optic Lens
• Spec Sheet - 6-ft with Optic Lens
• Spec Sheet - 6-ft without Optic Lens
• Spec Sheet - 8-ft with Optic Lens
• Spec Sheet - 8-ft without Optic Lens

• Instruction Sheet

Labels and Listings

• UL Listed
• IP Rating: IP54
