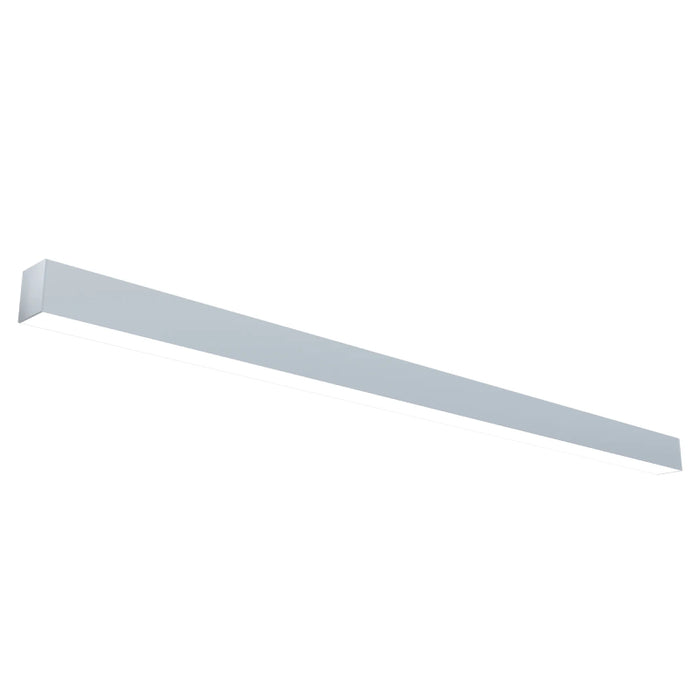

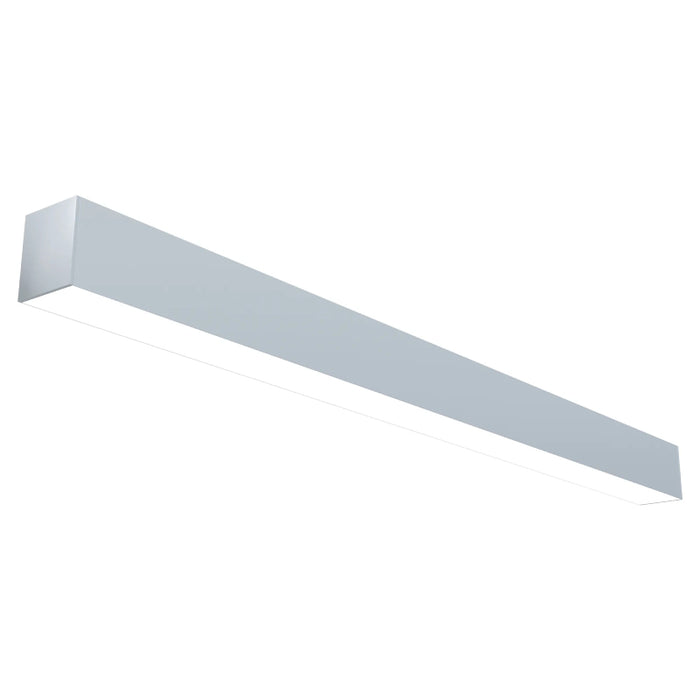

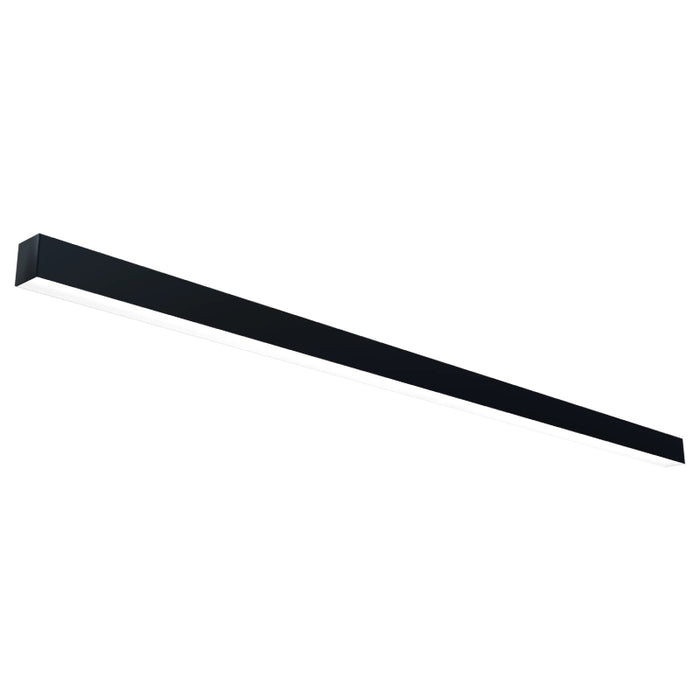

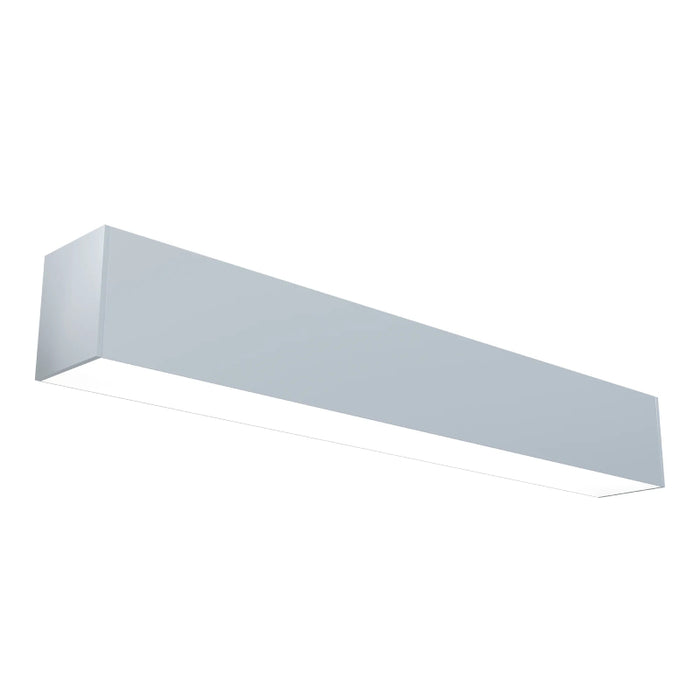

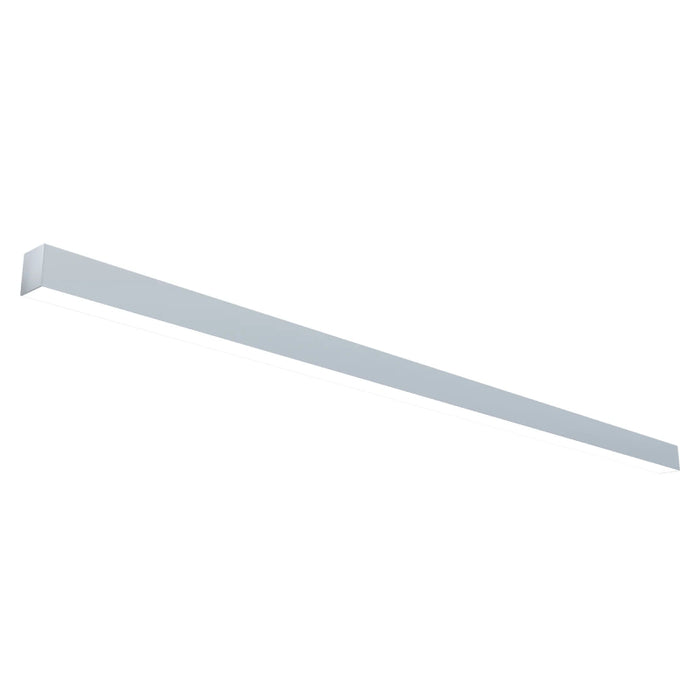

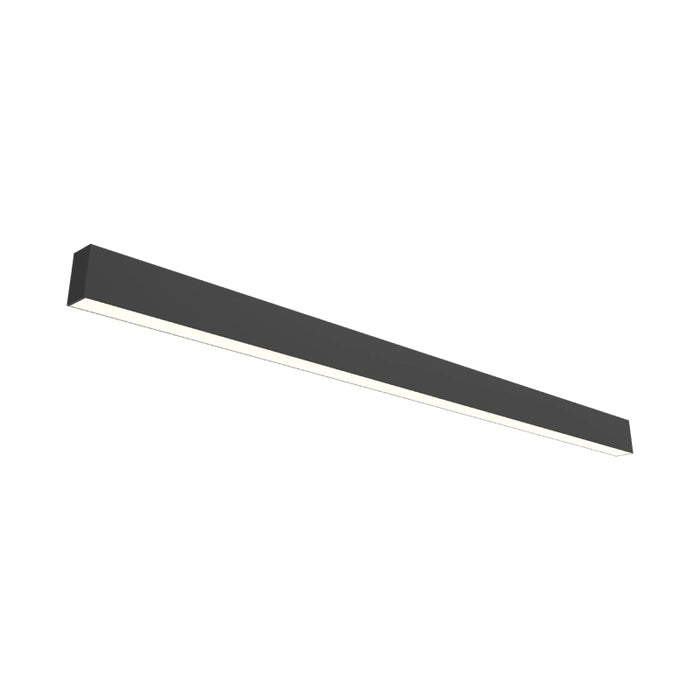

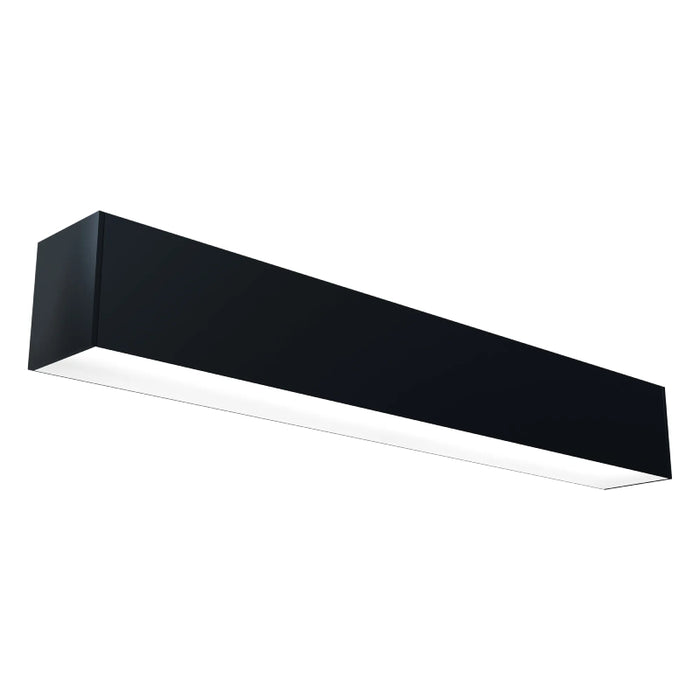

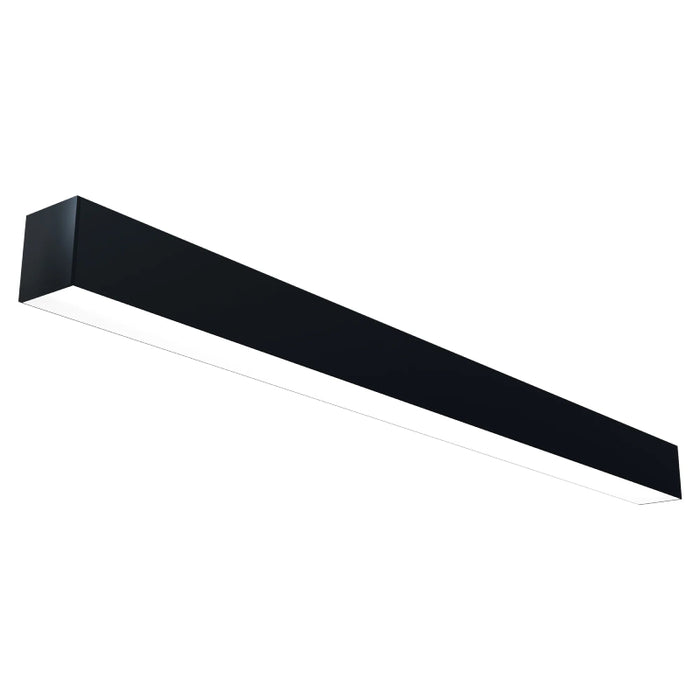

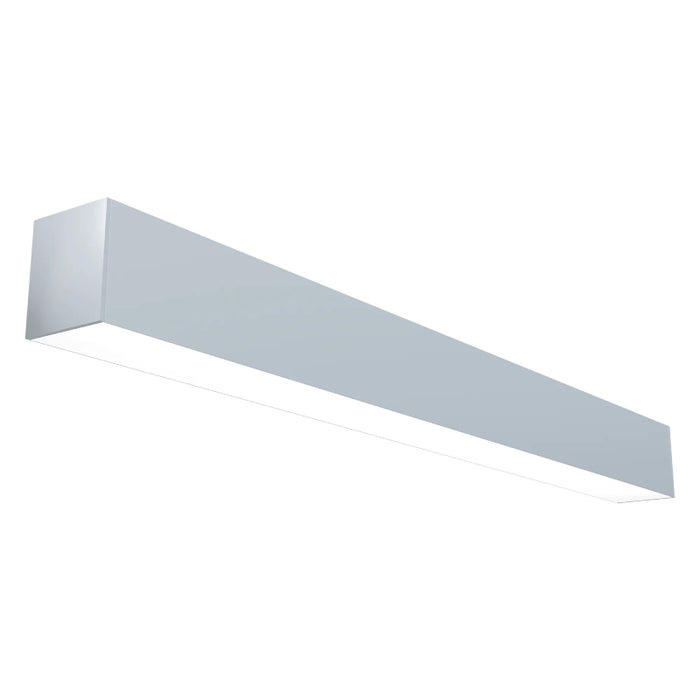

Westgate SCX1.5 Series Up/Down LED Linear Light, 5CCT & Power Selectable, 120-277V

The SCX series offers the best and the most comprehensive selection for linear lighting. The various available lengths and widths allow the creation of the desired shape to elevate the areas aesthetics to a unique and modern look while providing an impressive illumination for the occupants. Ideal for, retail locations, offices, lobbies, conference rooms, reception areas, hallways, educational facilities, hotels, and restaurants.

Features

• Length: 2-ft, 3-ft, 4-ft, 6-ft, 8-ft
• Finish: Black, White
• Wattage:
  • 2-ft : 8W/11W/13W/15W
  • 3-ft : 12W/17W/20W/23W
  • 4-ft: 16W/22W/26W/30W
  • 6-ft : 24W/34W/40W/45W
  • 8-ft : 32W/44W/52W/60W
• Voltage: 120-277V
• Color Temperature: 2700K/3000K/3500K/4000K/5000K Selectable
• Lumens:
  • 2-ft : 880/1210/1430/1650
  • 3-ft : 1320/1870/2200/2530
  • 4-ft: 1760/2420/2860/3300
  • 6-ft : 1540/3740/4400/4950
  • 8-ft : 3520/4400/5720/6600
• CRI: 80+
• Dimmable: 0-10V Dimming Down to 5%
• Beam Angle: 104.8°(H) x 100.5°(V)
• Integrated uplight module with selectable uplight proportions

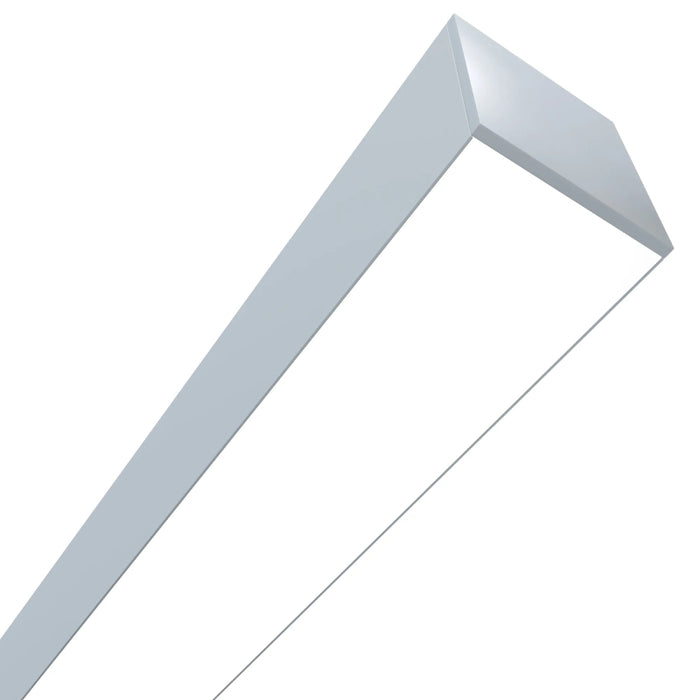

• Lens Snaps into Housing
• Make Different Connections Via T/L/X Joints on Both Ends
• Mounting Options: Surface, Suspended, Wall, Recessed

Dimensions

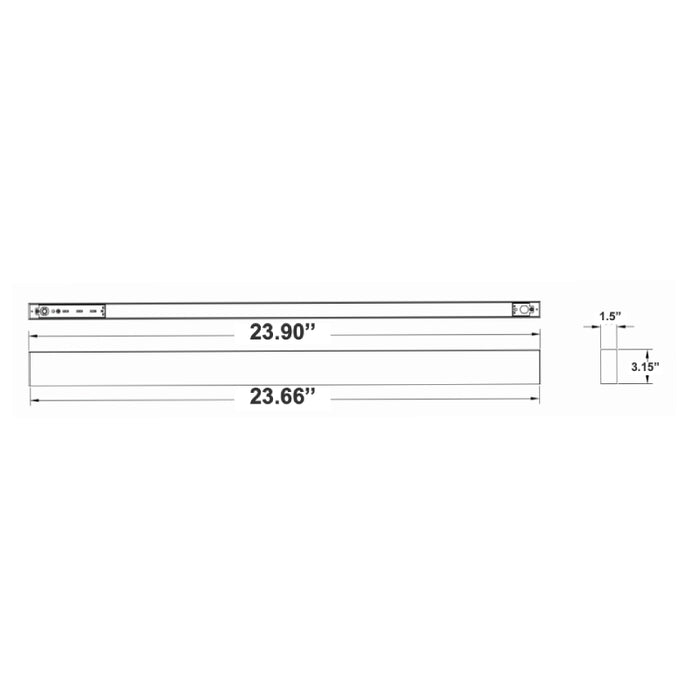

• 2-ft : 23.9" L x 1.5" W x 3.15" H

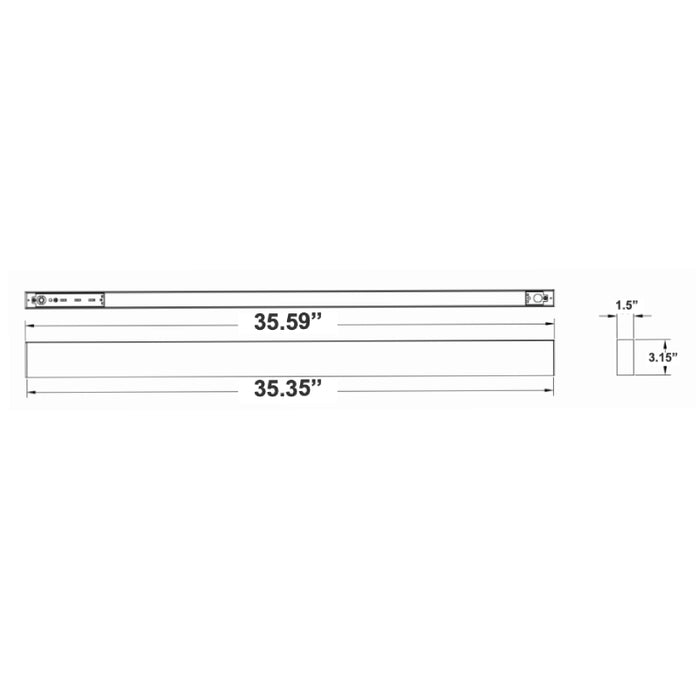

• 3-ft: 35.59" L x 1.5" W x 3.15" H

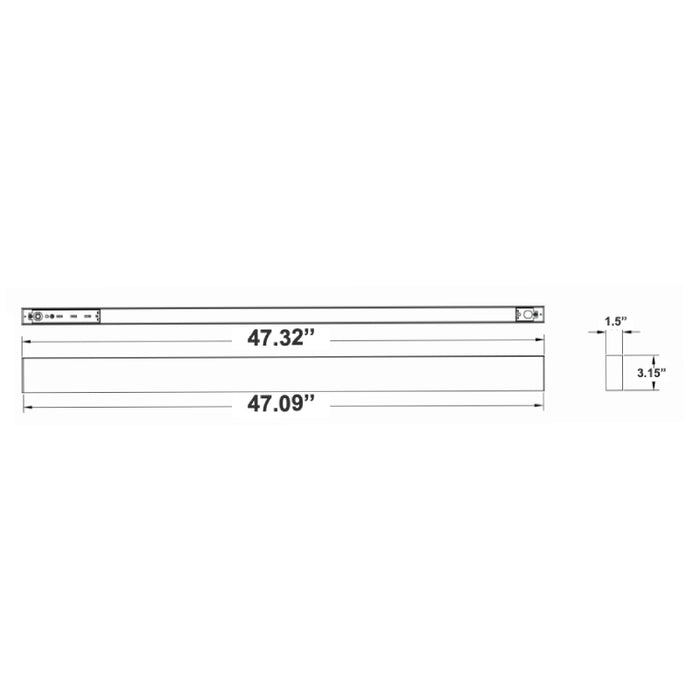

• 4-ft: 47.32" L x 1.5" W x 3.15" H

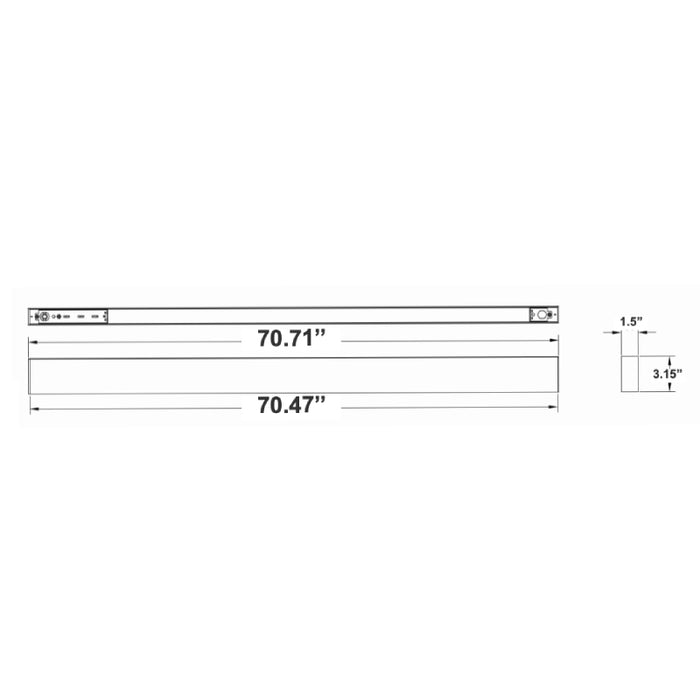

• 6-ft : 70.71" L x 1.5" W x 3.15" H

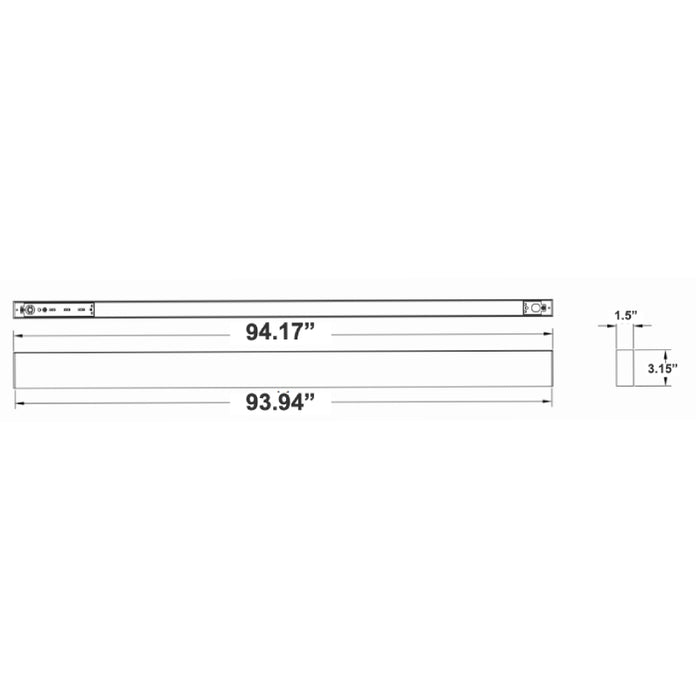

• 8-ft : 94.17" x 1.5" W x 3.15" H

Estimated Life

• 50,000 Hours Rated Life

Warranty

• 5-Year Warranty

Documents

• Spec Sheet - 2-ft

• Spec Sheet - 3-ft
• Spec Sheet - 4-ft

• Spec Sheet - 6-ft

• Spec Sheet - 8-ft

• Instruction Sheet

Accessory (Sold Separately)

• Connection Buckle: SCX1.5-CONKIT
• Module: SCX1.5-UD-MCT5

Labels and Listings

• UL Listed
• IP Rating: IP54
