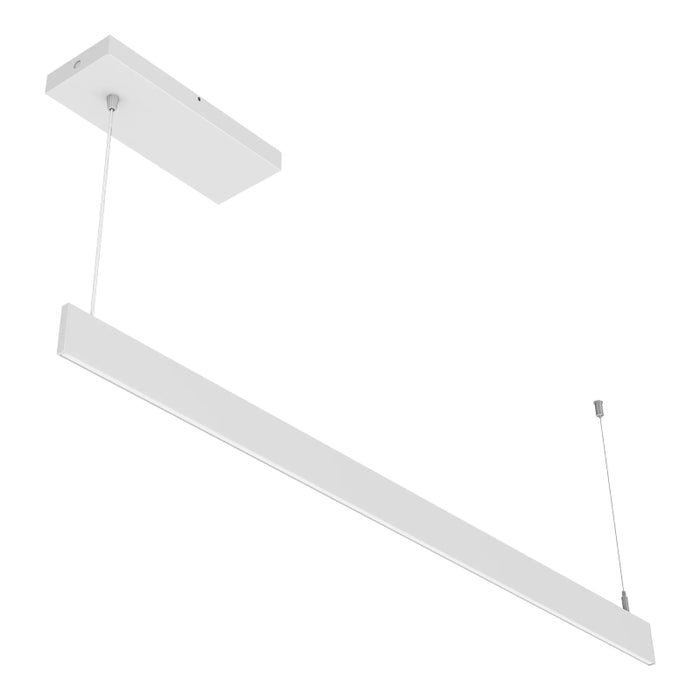

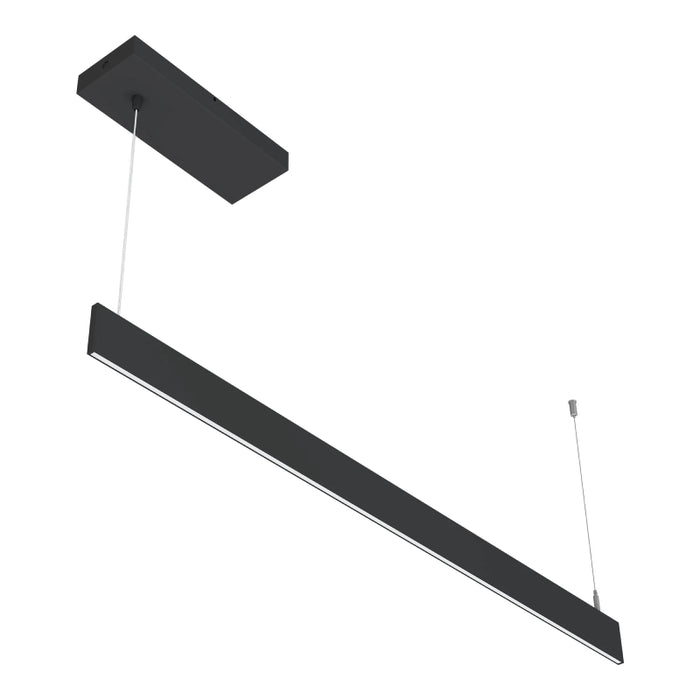

Westgate SCSSL-UD-AP Series LED Slim Architectural Up & Down Linear Light /w Aperture Optics Lens, 5CCT Selectable, 120-277V

A modern decorative Euro-design suspended light suitable for conference tables, creative offices and department stores.

Features

• Size: 4-ft, 6-ft, 8-ft
• Finish: Black, White

• Wattage:

  • 4-ft: 10W / 15W / 20W
  • 6-ft: 15W / 23W / 30W
  • 8-ft: 20W / 30W / 40W
• Voltage: 120-277V
• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable
• Lumens:
• • 4-ft: 700 / 1050 / 1400
  • 6-ft: 1050 / 1610 / 2100
  • 8-ft: 1400 / 2100 / 2800
• CRI: ≥80
• Dimming: (Dual Function) Triac Dimmable at 120V & 0-10V Dimming at 120-277V

• Beam Angle: 120°

• MCTP: Multi Color Temperature and Power (Selectable, the switches are inside the Canopy)

• Aluminum Housing With Sandy Black and White Finish
• Two 10FT Adjustable Suspension Cables with Canopies Included

• Lens: Aperture Optics Lens

Dimensions

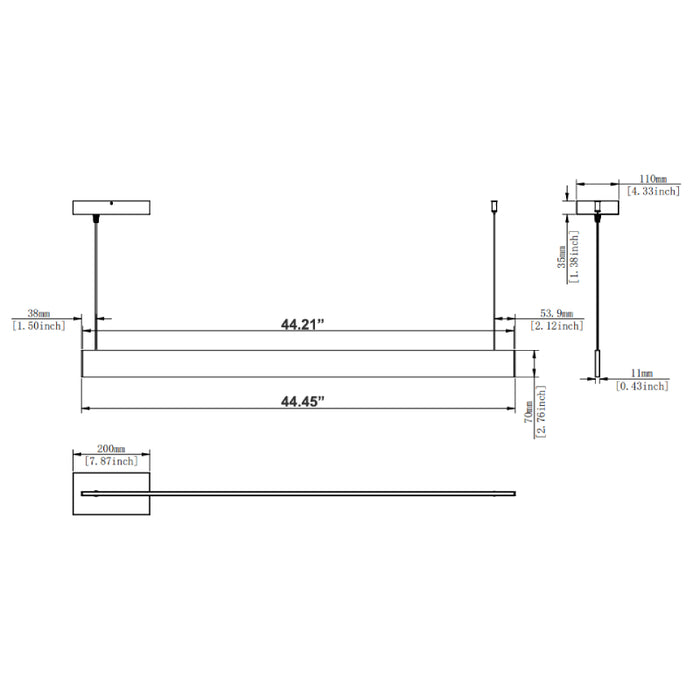

• 4-ft: 44.45" W x 2.79"H x 7.87"D

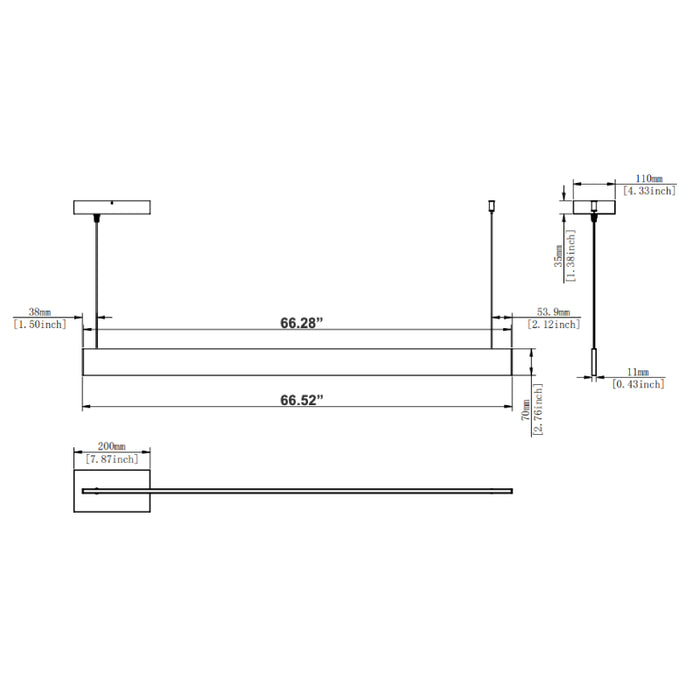

• 6-ft: 66.52" W x 2.79"H x 7.87"D

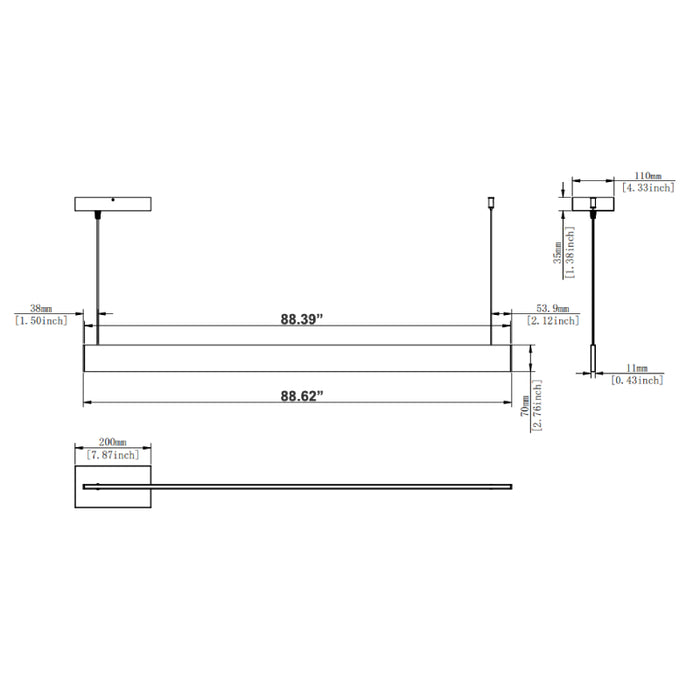

• 8-ft: 88.62"W  x 2.79"H x 7.87"D

Estimated Life

• 50,000 hours

Warranty

• 5-year warranty

Documents

• Spec Sheet - 4-ft
• Spec Sheet - 6-ft

• Spec Sheet - 8-ft
• Instruction Sheet

Accessories (Sold Separately):

• Rounded End Cap: SCSSL-REC
• Coupling End Cap: SCSSL-CEC
