Westgate SCRR Series LED Regressed Architectural Panel Light, 5CCT & Power Selectable

A modern decorative Euro-design suspended light suitable for conference tables, creative offices and department stores.

Features

• Finish: White
• Size: 16", 18", 24", 36", 48"
• Wattage:
  • 16" : 10W / 15W / 20W / 25W / 30W

  • 18" : 15W / 20W / 25W / 30W / 35W
  • 24" : 30W / 35W / 40W / 45W / 50W
  • 36" : 40W / 60W / 80W / 100W / 120W
  • 48" : 120W / 140W / 160W / 180W
• Voltage: 120-277V
• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable
• Lumens:
  • 16" : 1300 / 1950 / 2600 / 3250 / 3900
  • 18" : 1950 / 2600 / 3250 / 3900 / 4550
  • 24" : 4500 / 4550 / 5200 / 5850 / 6500
  • 36" : 5200 / 7800 / 10400 / 13000 / 15600
  • 48" : 15600 / 18200 / 20800 / 23400
• CRI: 80+
• Dimmable: 0~10V Dimming
• Beam Angle: 114°(H) x 114°(V)
• Multi Color Temperature & Power (Switches are inside the canopy)

• Regressed lens design helps reduce visible glare and creates a cleaner, more comfortable lighting appearance
• Three 10FT Adjustable Suspension Cables
• Opal Polycarbonate Lens - Direct Down Light

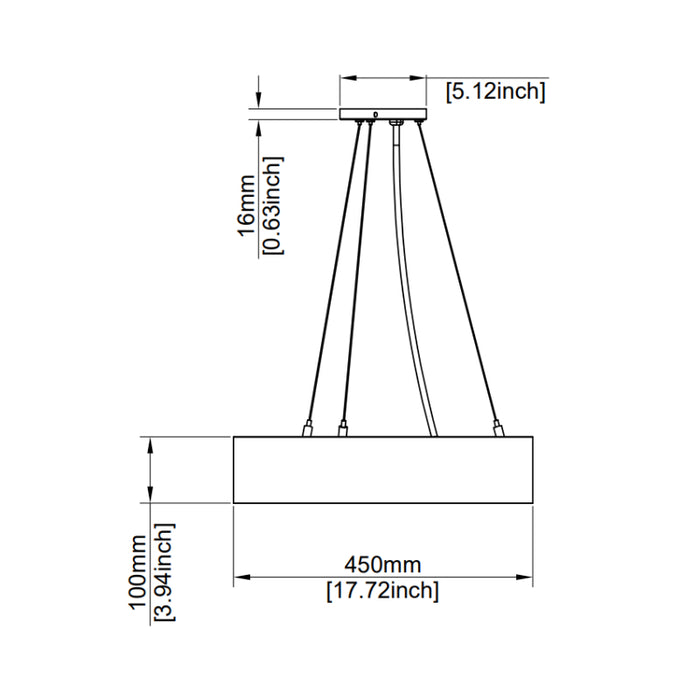

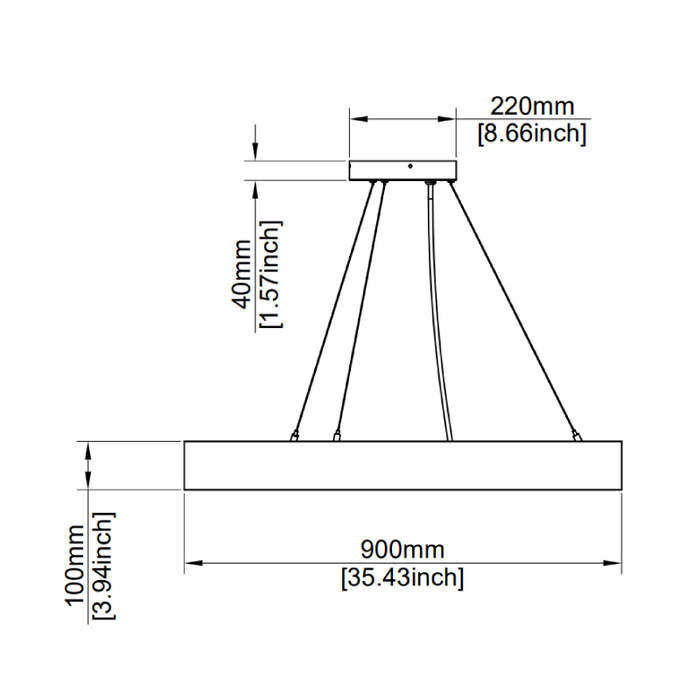

Dimension

• Diameter: 15.75", 17.72", 23.62", 35.43", 47.24"

• Height: 3.94"
• Canopy:
  • 16", 18" & 24" : 5.12" Dia. x 0.63" H
  • 36" & 48" : 8.66" Dia. x 1.57" H

Estimated Life

• 50,000 Hours Rated Life

Warranty

• 5-year warranty

Document

• Spec Sheet - 16"
• Spec Sheet - 18"
• Spec Sheet - 24"
• Spec Sheet - 36"
• Spec Sheet - 48"

Accessory (Sold Separately):

• Uplight Kit
