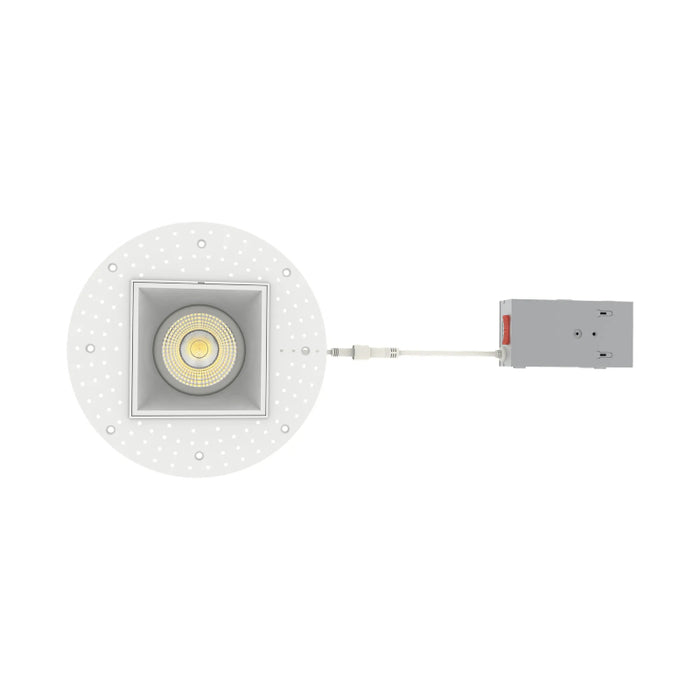

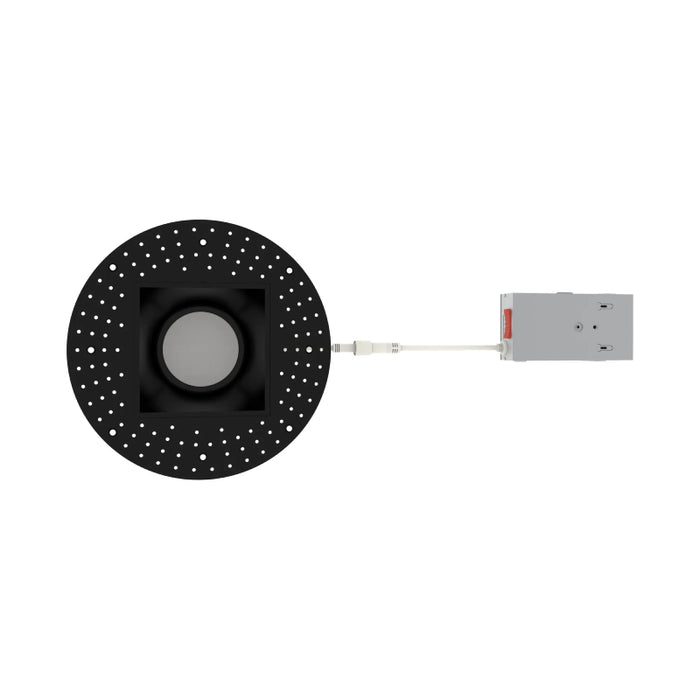

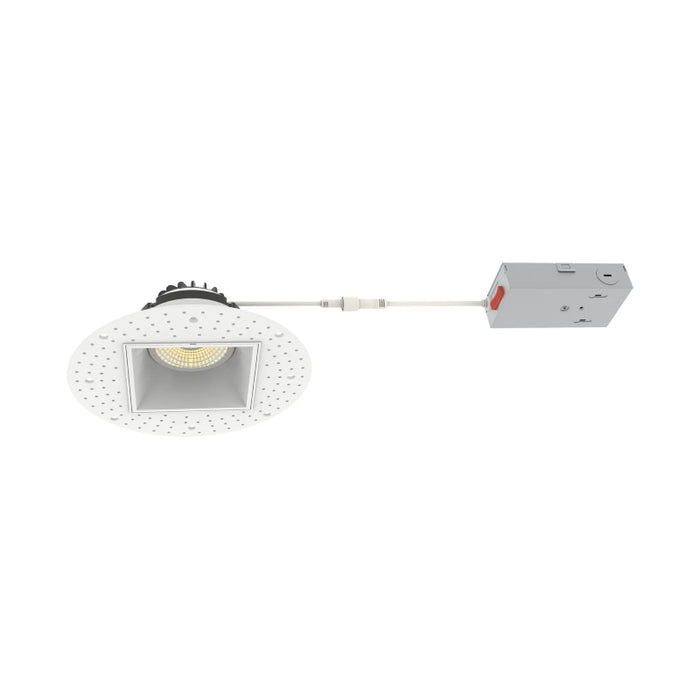

Westgate RDSG4TL 4" LED Square Gimbal Trimless Recessed Downlight, 5CCT Selectable

The RDSG4TL-MCT5 Series is a 4" square gimbal trimless recessed light designed for higher-output directional lighting in architectural interiors. The fixture combines a square finished aperture with a round mud-in plate for easier ceiling preparation. Its adjustable gimbal, remote driver box, selectable 5CCT operation, CRI 90 performance, and wet location/IC-rated construction make it ideal for accent, display, hospitality, retail, and premium residential ceiling applications.

Features

• Size: 4"
• Finish: White, Black

• Wattage: 15W

• Voltage: 120V
• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable
• Lumen: 1250

• CRI: 90
• TRIAC/ELV dimming
• Gimbal adjustable aiming
• 360° rotation and 30° tilt
• Polycarbonate lens
• Remote driver box included
• CCT selectable switch located on remote driver box
• FT4 rated cable with male/female quick connector
• Die-cast aluminum heatsink
• Round mud-in plate for simplified installation
• Suitable for 0.5" to 1" ceiling thickness
• IC rated for direct contact with insulation
• Wet location rated for covered ceiling mount only
• Package includes fixture, trim, driver box, screws, and template

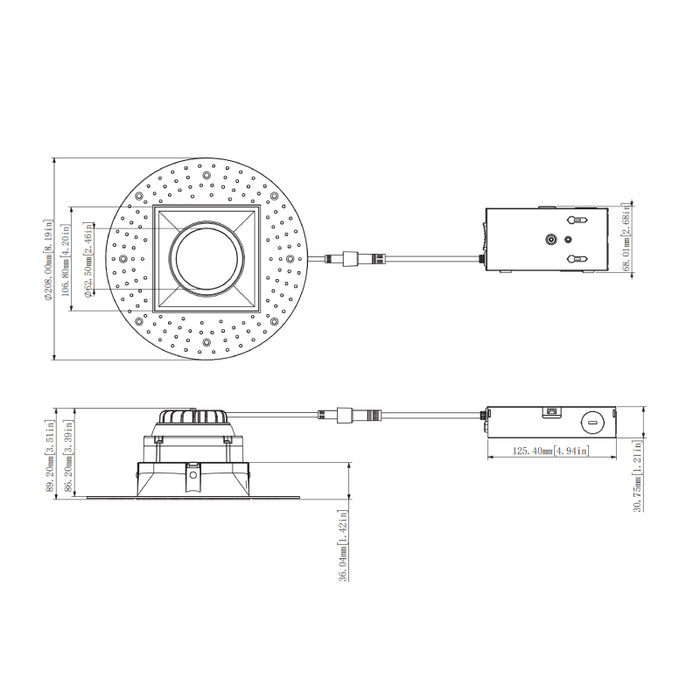

Dimensions

• Width: 8.19"

• Height: 3.51"
• Ceiling cutout: 6.25"

Warranty

• 5-year warranty

Documents

• Spec Sheet

Labels and Listings:

• JA8-2025 compliant
• Conforms to UL 1598
• cETLus listed
• FCC compliant
