Westgate RDSG3TL 3" LED Square Gimbal Trimless Recessed Downlight, 5CCT Selectable
SKU RDSG3TL-MCT5
Original price
$0.00
-
Original price
$0.00
Original price
$51.74
$51.74
-
$51.74
Current price
$51.74
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here!
OVERVIEW

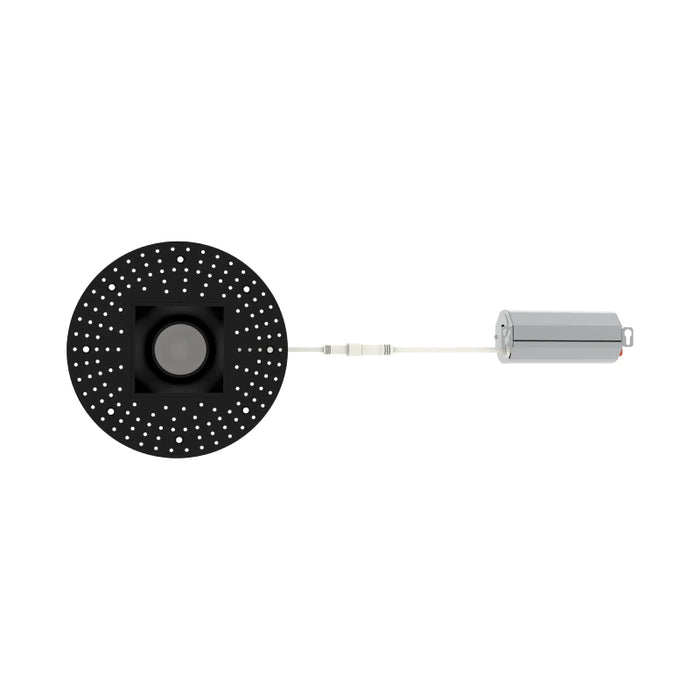

The RDSG3TL-MCT5 Series is a 3” square gimbal trimless recessed light for directional accent lighting in refined interior spaces. The round mud-in plate simplifies installation while the square aperture provides a clean architectural look. With adjustable aiming, 5CCT selection, a remote driver box, CRI 90 LED performance, and wet location/IC-rated construction, it is ideal for hospitality, retail, residential, and commercial ceiling applications.
Features
- Size: 3"
- Finish: White, Black
- Wattage: 9W
- Voltage: 120V
- Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable
- Lumen: 730
- CRI: 90
- TRIAC/ELV dimming
- Gimbal adjustable aiming
- 360° rotation and 30° tilt
- Polycarbonate lens
- Remote driver box included
- CCT selectable switch located on remote driver box
- FT4 rated cable with male/female quick connector
- Die-cast aluminum heatsink
- Round mud-in plate for simplified installation
- Suitable for 0.5" to 1" ceiling thickness
- IC rated for direct contact with insulation
- Wet location rated for covered ceiling mount only
- Package includes fixture, trim, driver box, screws, and template

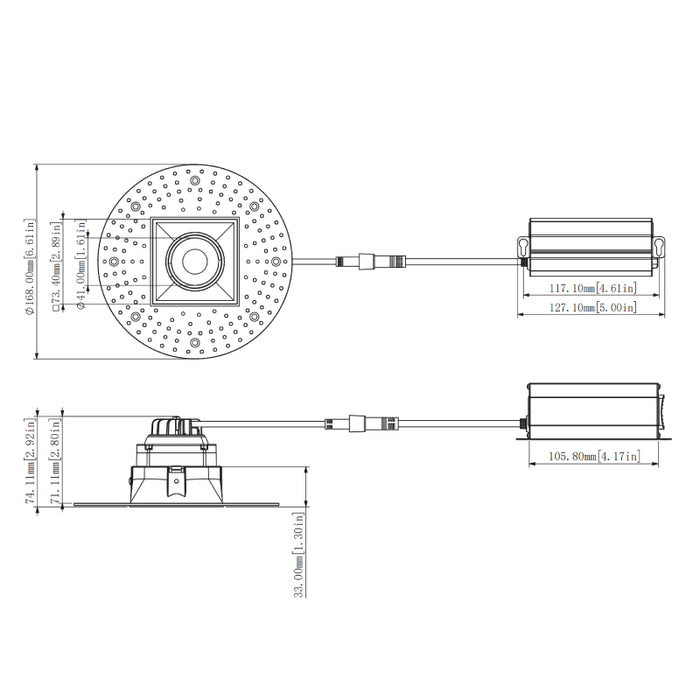

Dimensions
- Width: 6.61"
- Height: 2.92"
- Ceiling cutout: 4.38"
Warranty
- 5-year warranty
Documents
Labels and Listings:
- JA8-2025 compliant
- Conforms to UL 1598
- cETLus listed
- FCC compliant
