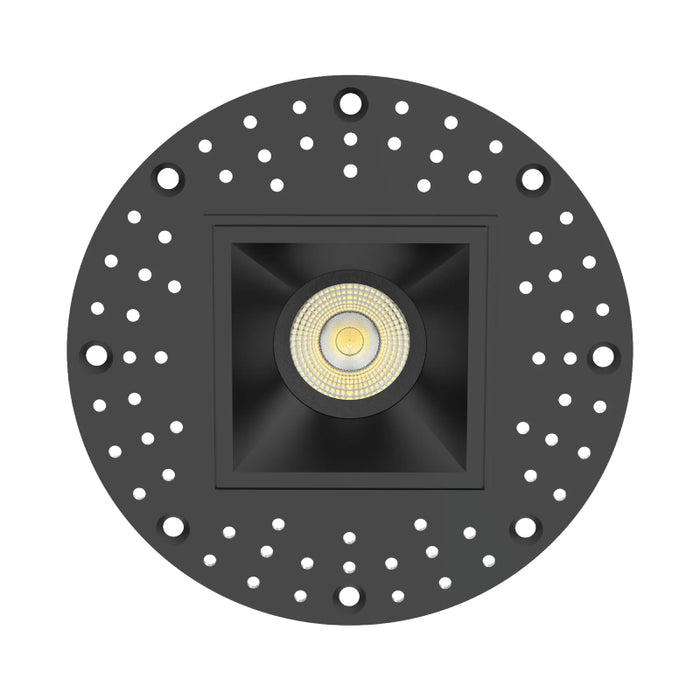

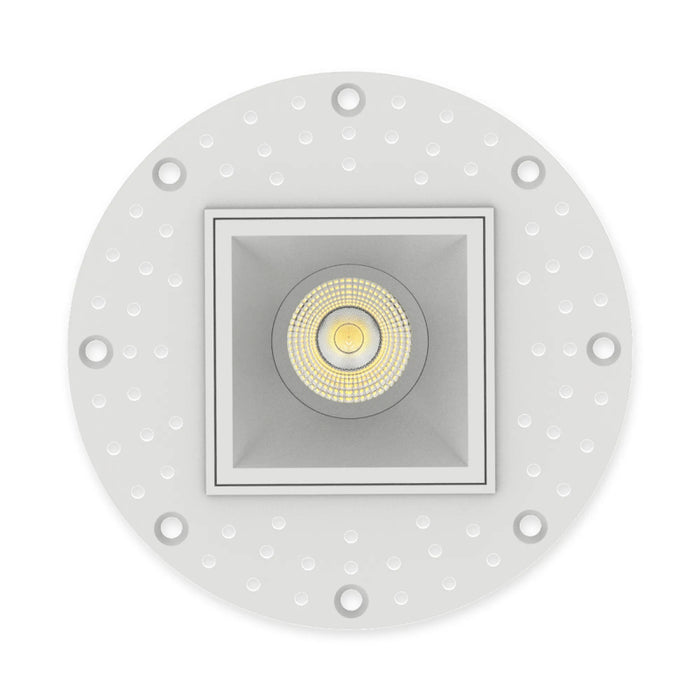

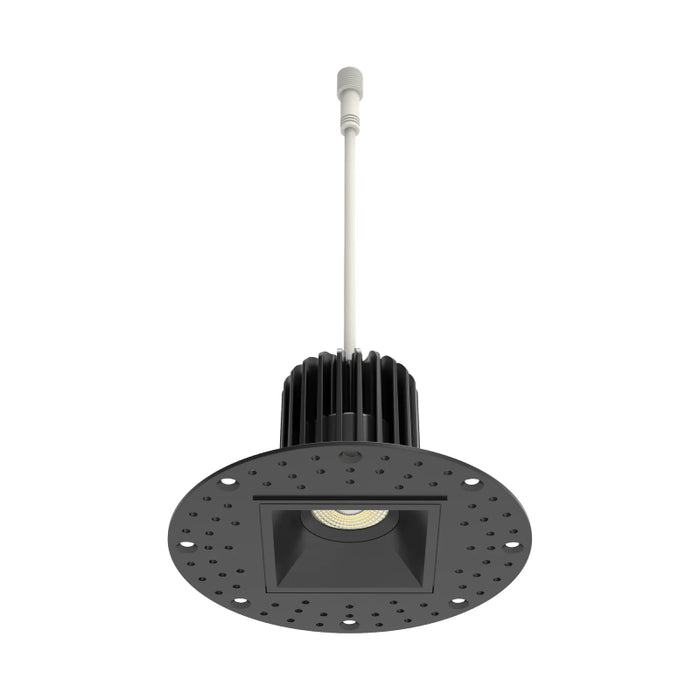

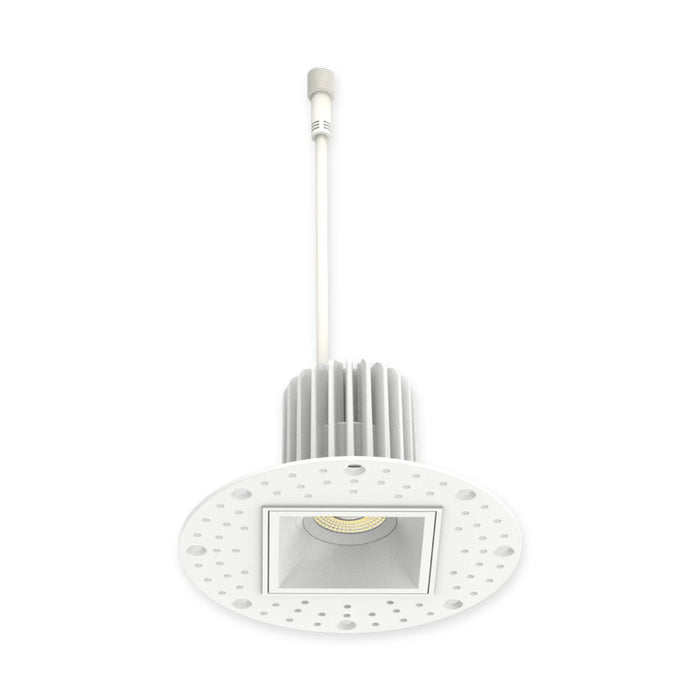

Westgate RDS2TL 2" LED Square Trimless Recessed Downlight, 5CCT Selectable

The RDS2TL-MCT5 Series is a 2" square trimless recessed downlight that provides a clean architectural aperture with simplified installation. The fixture uses a round mud-in plate and round ceiling cutout while delivering a square finished appearance. With a remote driver box, 5CCT field selection, CRI 90 light quality, and wet location/IC-rated construction, it is ideal for residential, hospitality, and commercial interiors where a square trimless detail is preferred.

Features

• Size: 2"
• Finish: White, Black

• Wattage: 9W

• Voltage: 120V
• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable
• Lumen: 600

• CRI: 90
• Polycarbonate lens
• TRIAC/ELV dimming
• Remote driver box included
• CCT selectable switch located on remote driver box
• FT4 rated cable with male/female quick connector
• Suitable for 0.5" to 1" ceiling thickness
• IC rated for direct contact with insulation
• Wet location rated for covered ceiling mount only
• Package includes fixture, trim, driver box, screws, and template

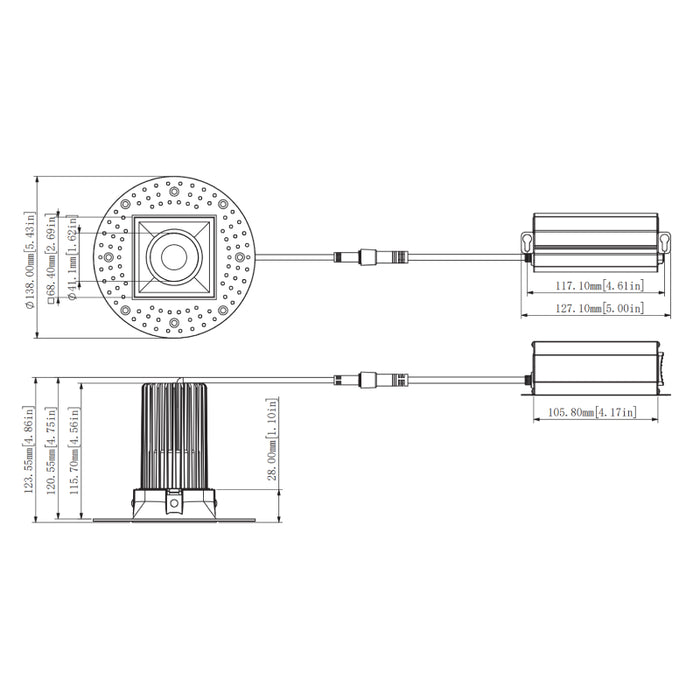

Dimensions

• Width: 5.43"

• Height: 4.86"
• Ceiling cutout: 4.38"

Warranty

• 5-year warranty

Documents

• Spec Sheet

Labels and Listings:

• Wet location rated
• JA8-2025 compliant
• Conforms to UL 1598
• cETLus listed
• FCC compliant
