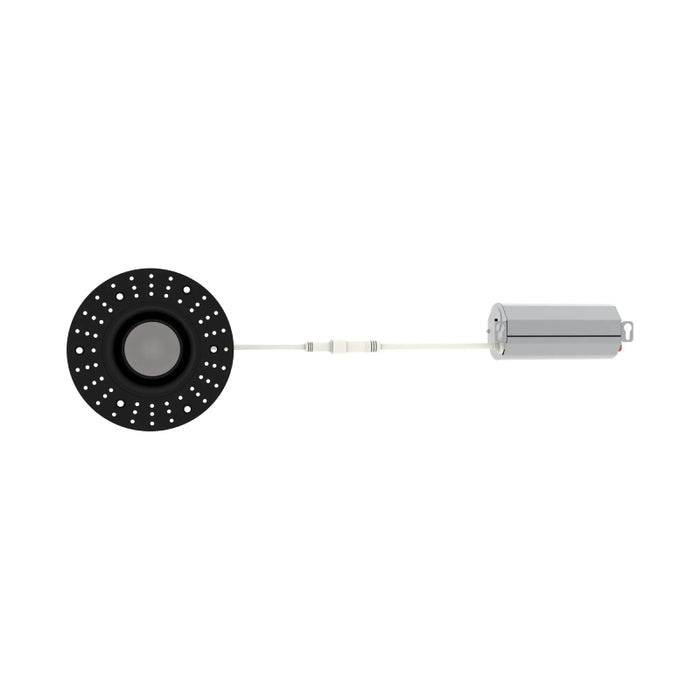

Westgate RDG3TL 3" LED Round Gimbal Trimless Recessed Downlight, 5CCT Selectable

The RDG3TL-MCT5 Series is a 3” round gimbal trimless recessed light designed for accent and directional lighting applications. The fixture features an adjustable gimbal, mud-in trimless installation, and remote driver box with 5CCT selectable operation. With CRI 90 color quality, wet location rating, and IC-rated construction, it is ideal for residential, hospitality, retail, restaurant, and commercial interiors where directional illumination and clean ceiling integration are required.

Features

• Size: 3"
• Finish: White, Black

• Wattage: 9W

• Voltage: 120V
• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable
• Lumen: 730

• CRI: 90
• TRIAC/ELV dimming
• Gimbal adjustable aiming
• 360° rotation and 30° tilt
• Polycarbonate lens
• Remote driver box included
• CCT selectable switch located on remote driver box
• FT4 rated cable with male/female quick connector
• Die-cast aluminum heatsink
• Round mud-in plate for simplified installation
• Suitable for 0.5" to 1" ceiling thickness
• IC rated for direct contact with insulation
• Wet location rated for covered ceiling mount only
• Package includes fixture, trim, driver box, screws, and template

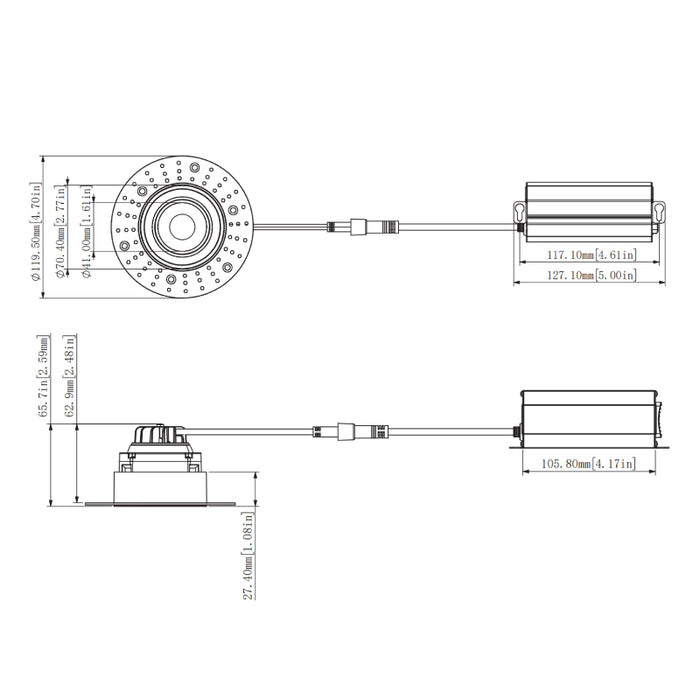

Dimensions

• Width: 4.7"

• Height: 2.59"
• Ceiling cutout: 3"

Warranty

• 5-year warranty

Documents

• Spec Sheet

Labels and Listings:

• JA8-2025 compliant
• Conforms to UL 1598
• cETLus listed
• FCC compliant
