Westgate RDG2TL 2" LED Round Gimbal Trimless Recessed Downlight, 5CCT Selectable

The RDG2TL-MCT5 Series is a compact 2” round gimbal trimless recessed light designed for directional accent lighting in architectural ceiling applications. The adjustable gimbal allows precise aiming, while the mud-in trimless design creates a clean finished ceiling appearance. With a remote driver box, selectable 5CCT operation, CRI 90 performance, and wet location/IC-rated construction, it is well suited for accent, display, hospitality, residential, and sloped ceiling applications.

Features

• Size: 2"
• Finish: White, Black

• Wattage: 6W

• Voltage: 120V
• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable
• Lumen: 400

• CRI: 90
• TRIAC/ELV dimming
• Gimbal adjustable aiming
• 360° rotation and 30° tilt
• Polycarbonate lens
• Remote driver box included
• CCT selectable switch located on remote driver box
• FT4 rated cable with male/female quick connector
• Die-cast aluminum heatsink
• Round mud-in plate for simplified installation
• Suitable for 0.5" to 1" ceiling thickness
• IC rated for direct contact with insulation
• Wet location rated for covered ceiling mount only
• Package includes fixture, trim, driver box, screws, and template

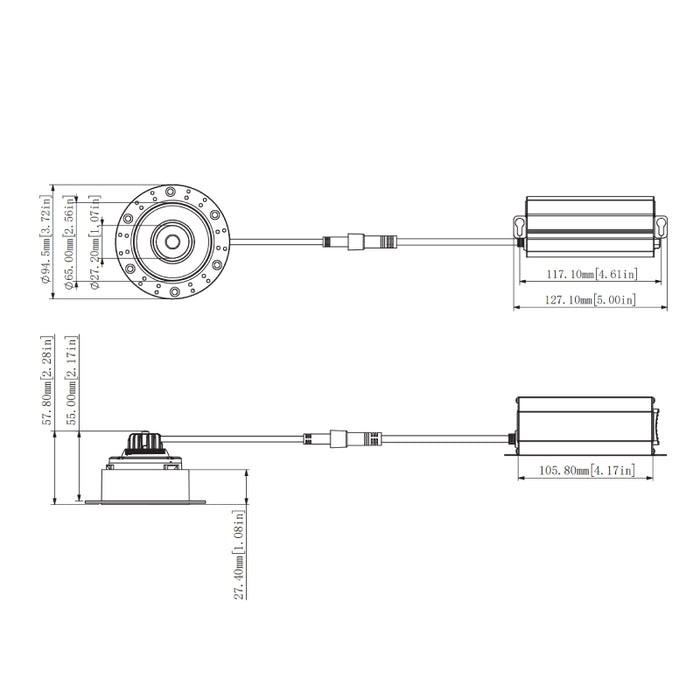

Dimensions

• Width: 3.72"

• Height: 2.28"
• Ceiling cutout: 2.81"

Warranty

• 5-year warranty

Documents

• Spec Sheet

Labels and Listings:

• JA8-2025 compliant
• Conforms to UL 1598
• cETLus listed
• FCC compliant
