Westgate LTRW Series LED Architectural Advanced Edge-Lit Wing Design Troffer, Power & 4CCT Selectable, 120-277V, 0-10V Dimming

This modern, energy-efficient troffer is designed with a sloped lens for enhanced light distribution, offering flexibility with selectable wattage and color temperature (CCT). Ideal for commercial and architectural spaces, it provides seamless integration with varied design aesthetics while delivering superior illumination performance. Featuring adjustable power settings, this troffer maximizes energy savings without compromising lighting quality, ensuring compliance with energy codes and standards. Perfect for office, retail, and educational environments.

Features

• Finish: White
• Size: 2x2, 2x4

• Wattage:
  • 2x2: 24W / 36W
  • 2x4: 42W / 50W
• Voltage: 120-277V
• Color Temperature: 3000K / 3500K / 4000K / 5000K Selectable
• Lumens:
• • 2x2: 2760 / 4140
  • 2x4: 4830 / 5750
• CRI: ≥80
• Dimmable: 0~10V Dimming
• Selectable Multi-CCT & Power Switches Inside The Driver Box

• High Quality LED Chips Provide High Efficiency, Heat Dissipation, Stability, and Lumen Maintenance
• Individual, Pure Aluminum Heat Sinks Offers Heat Transmission Faster Than Die Cast Steel
• Driver disconnect provided where required to comply with US and Canadian codes
• Performance Engineered Optical Lens Assembly Delivers Unique Beam Angles and Reduces Glare
• Polycarbonate Lens

Dimension

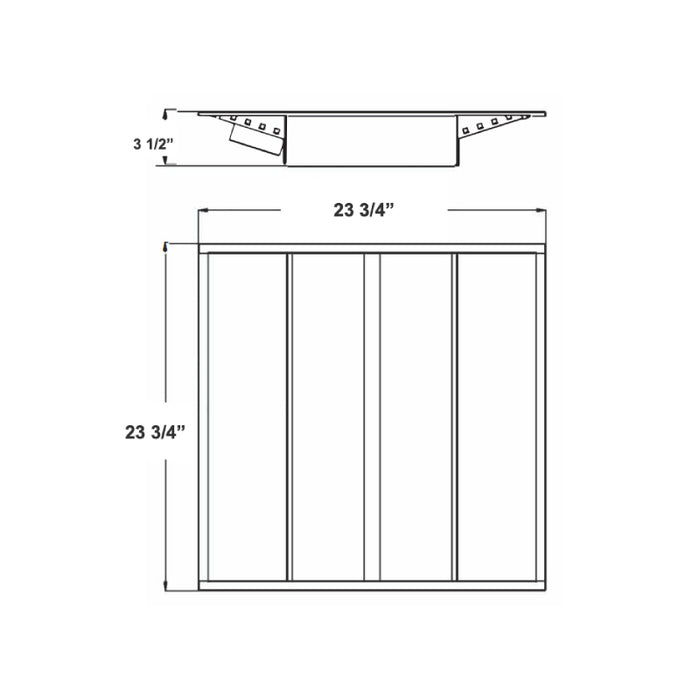

• 2x2: 23.75"(L) x 23.75" (W) x 3.5"(H)

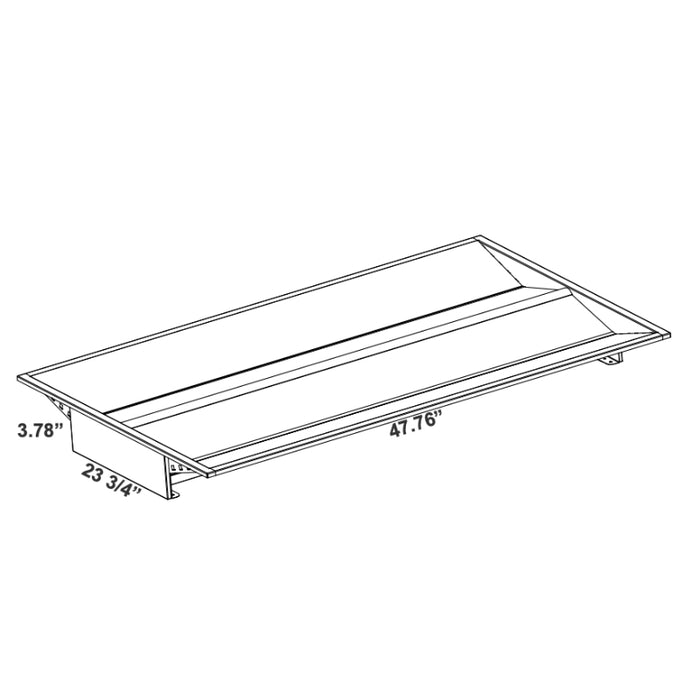

• 2x4: 47.76"(L) x 23.75" (W) x 3.78"(H)

Estimated Life

• 70,000 Hours Rated Life


Warranty

• 7-Year Warranty

Document

• Spec Sheet - 2x2
• Spec Sheet - 2x4
