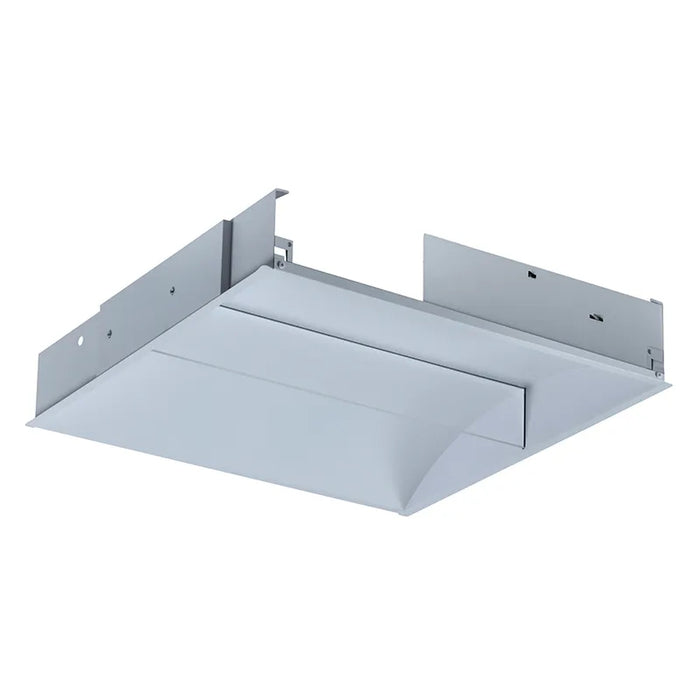

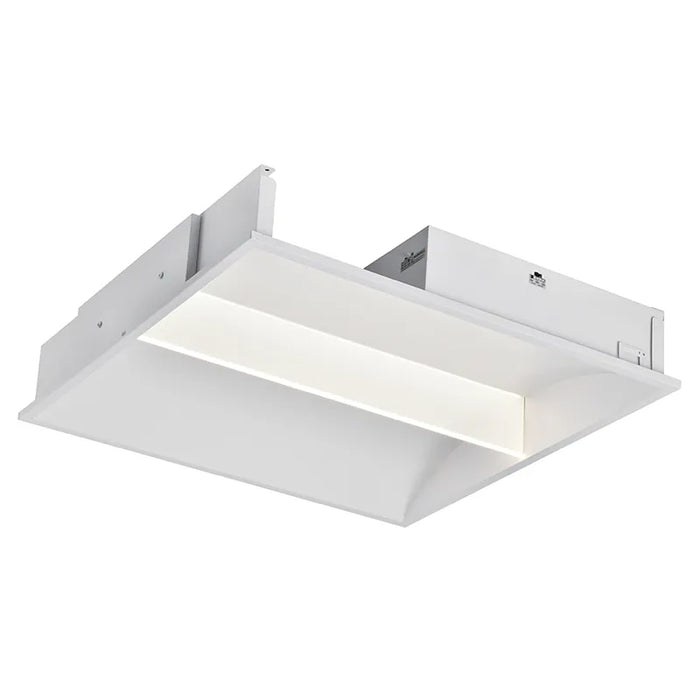

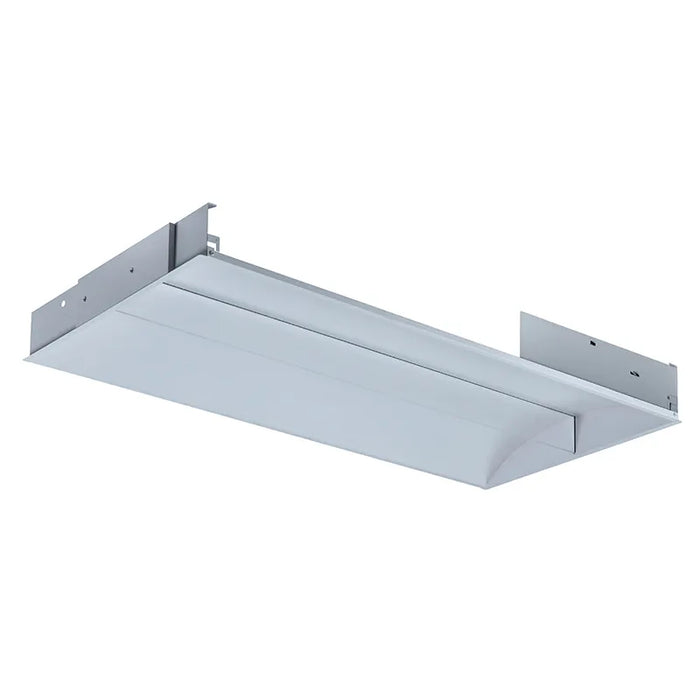

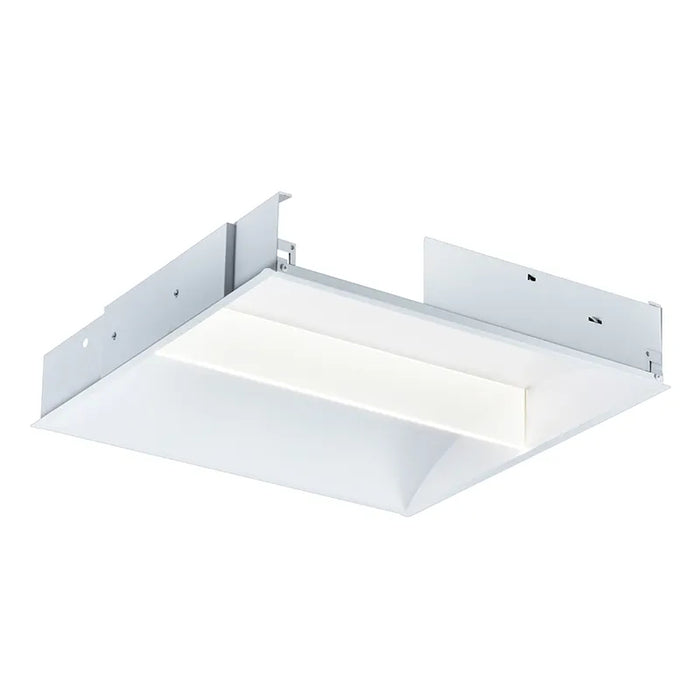

Westgate LTRL Series LED Architectural Advanced Blade Design Troffer Lights, Power & 4CCT Selectable, 120-277V, 0-10V Dimming

The Architectural Advanced Blade Design Troffer is a highperformance lighting fixture designed for modern interiors. Featuring an innovative blade-style diffuser, it delivers uniform, glare-free illumination while enhancing architectural aesthetics. Ideal for commercial and office spaces, this troffer offers energy efficiency, sleek design, and advanced optical control for optimal lighting distribution.

Features

• Finish: White
• Size: 2x2, 2x4

• Wattage:
  • 2x2: 30W / 40W / 50W
  • 2x4: 50W / 60W / 72W
• Voltage: 120-277V
• Color Temperature: 3000K / 3500K / 4000K / 5000K Selectable
• Lumens:
• • 2x2: 3450 / 4600 / 5750
  • 2x4: 5750 / 6900 / 8280
• CRI: ≥80
• Dimmable: 0~10V Dimming
• Selectable Switch On Back Of Fixture

• Cold-Rolled Steel
• Earthquake Hooks Built Into The Housing


Dimension

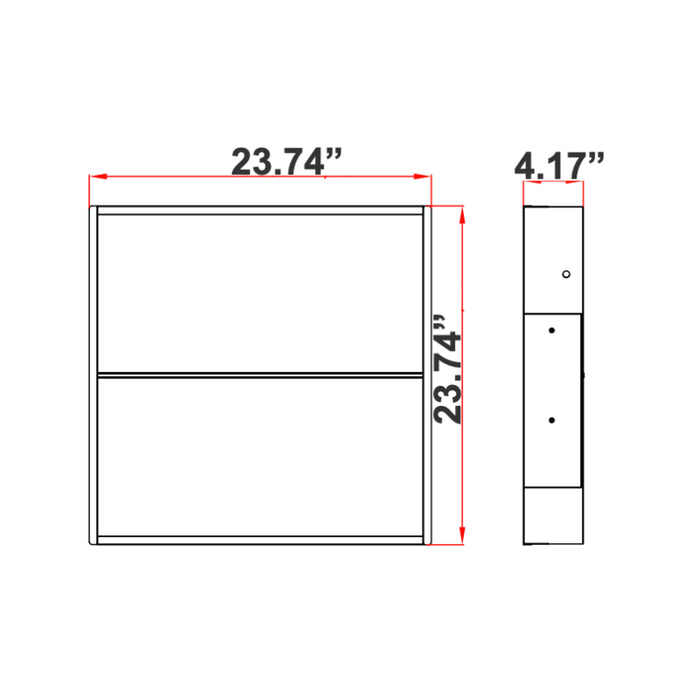

• 2x2: 23.74"(L) x 23.74" (W) x 4.17"(H)

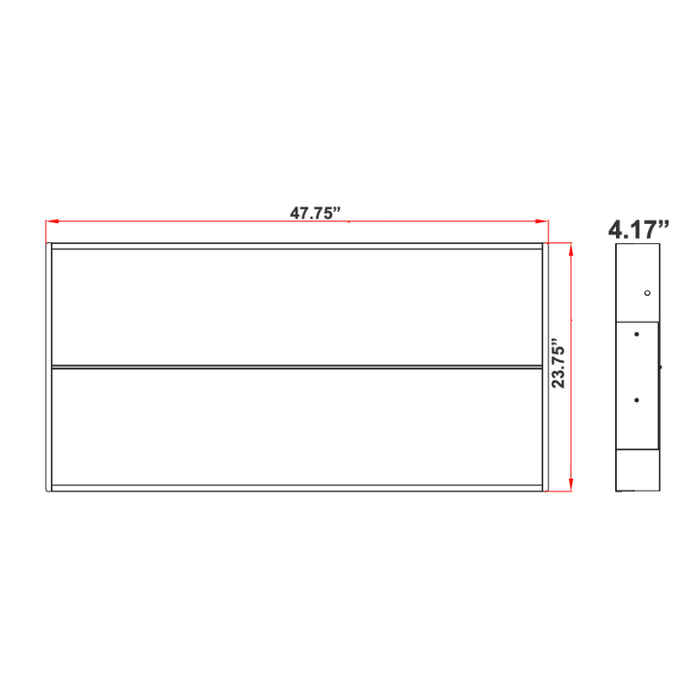

• 2x4: 47.75"(L) x 23.75" (W) x 4.17"(H)

Estimated Life

• Rated Life: 50,000 Hours


Warranty

• 5-Year Warranty

Document

• Spec Sheet - 2x2
• Spec Sheet - 2x4
• Instruction Sheet
