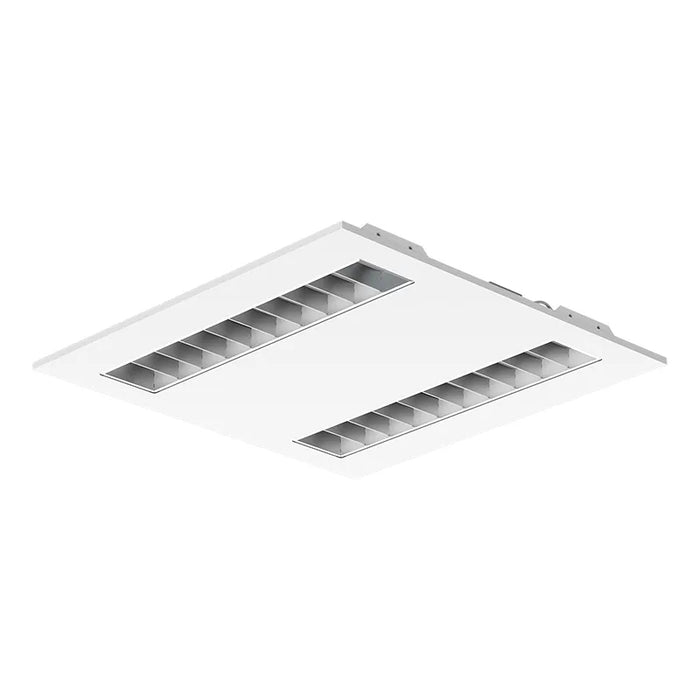

Westgate LTRG Series LED Architectural Grille Troffer, Power & 3CCT Selectable, 120-277V, 0-10V Dimming

The Architectural Grille Troffer with wattage and CCT selectability offers customizable illumination for commercial and architectural spaces. Featuring adjustable light output and color temperatures (3000K-5000K), it provides energy-efficient, versatile, and aesthetically pleasing lighting.

Features

• Finish: White
• Size: 1x4, 2x2, 2x4

• Wattage:

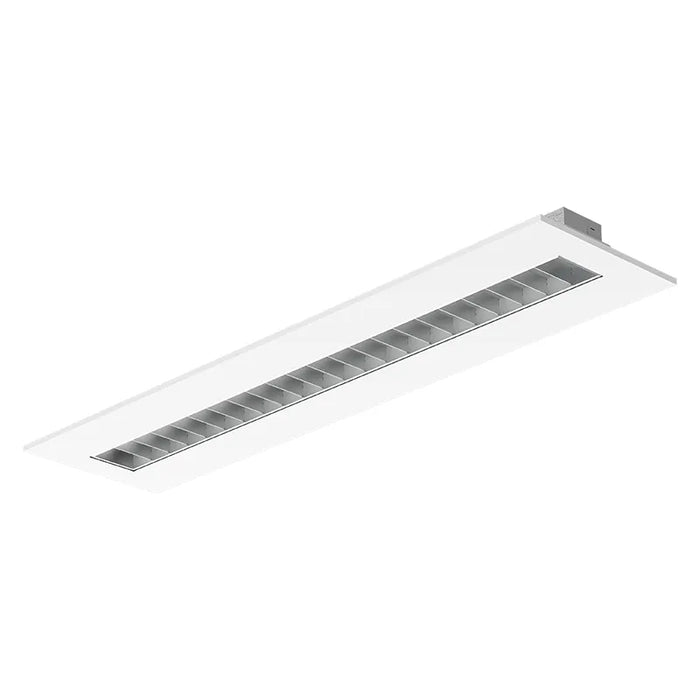

  • 1x4: 24W / 28W / 36W
  • 2x2: 24W / 28W / 36W

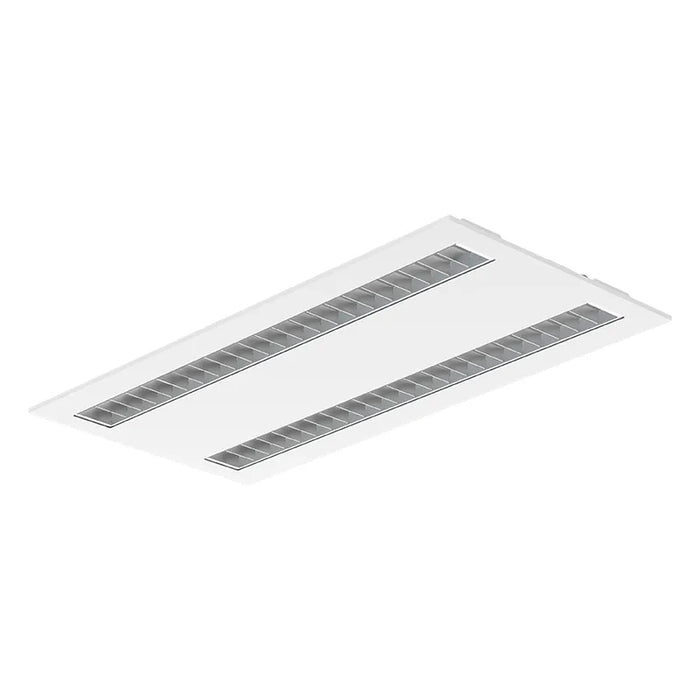

  • 2x4: 30W / 40W / 50W
• Voltage: 120-277V
• Color Temperature: 3500K / 4000K / 5000K Selectable
• Lumens:
• • 1x4: 2880 / 3360 / 4320
  • 2x2: 2880 / 3360 / 4320
  • 2x4: 3600 / 5400 / 6000
• CRI: ≥80
• Dimmable: 0~10V Dimming

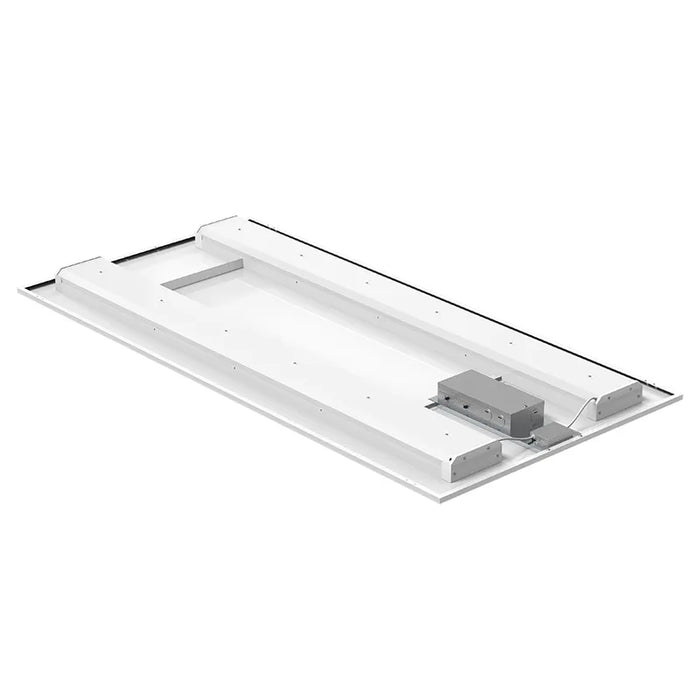

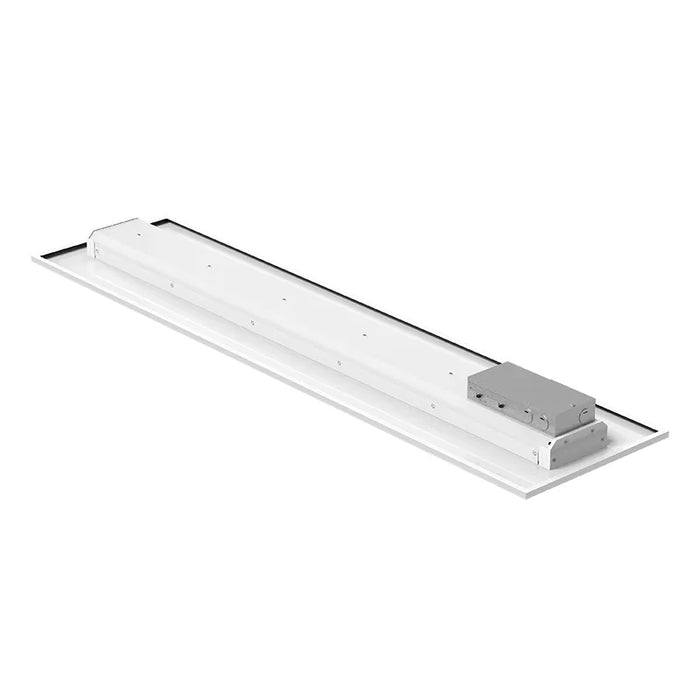

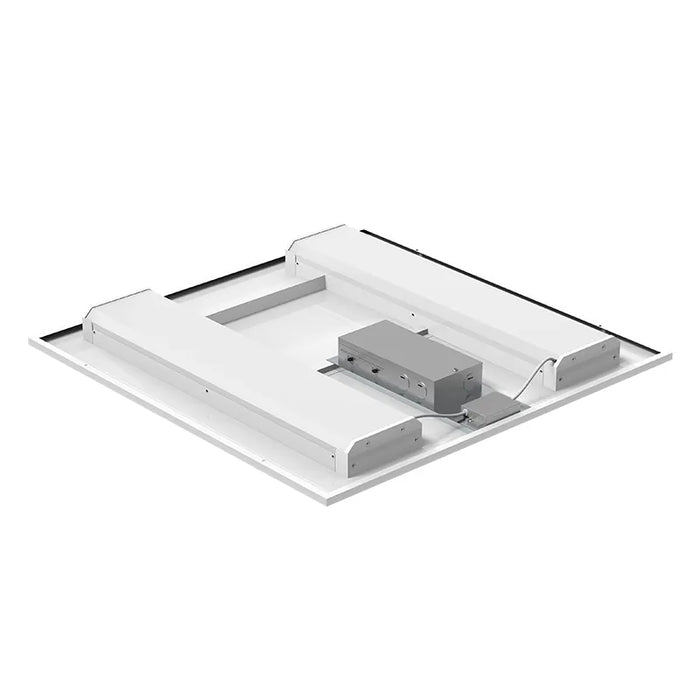

• Selectable Multi-CCT & Power Switches Inside The Driver Box
• High Quality LED Chips Provide High Efficiency, Heat Dissipation, Stability, and Lumen Maintenance
• Individual, Pure Aluminum Heat Sinks Offers Heat Transmission Faster Than Die Cast Steel
• Driver disconnect provided where required to comply with US and Canadian codes
• Performance Engineered Optical Lens Assembly Delivers Unique Beam Angles and Reduces Glare
• Polycarbonate Lens

Dimension

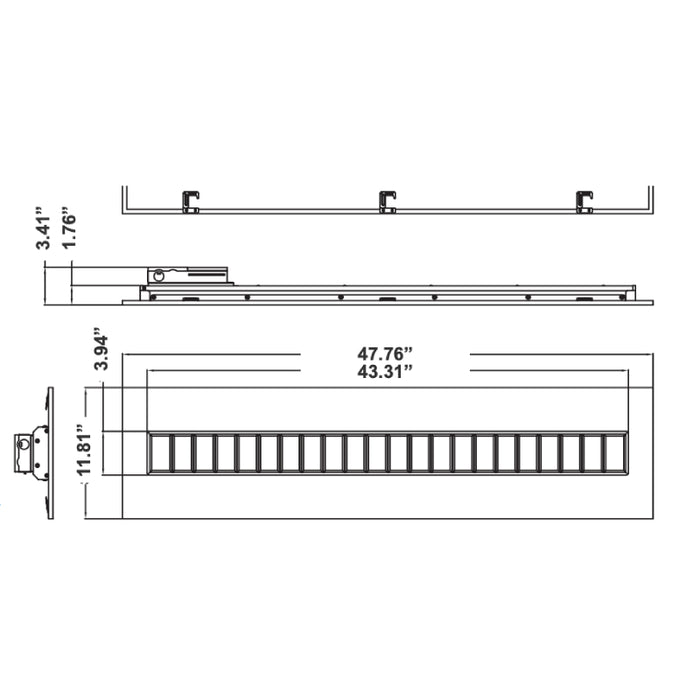

• 1x4: 47.76"(L) x 11.81" (W) x 3.41"(H)

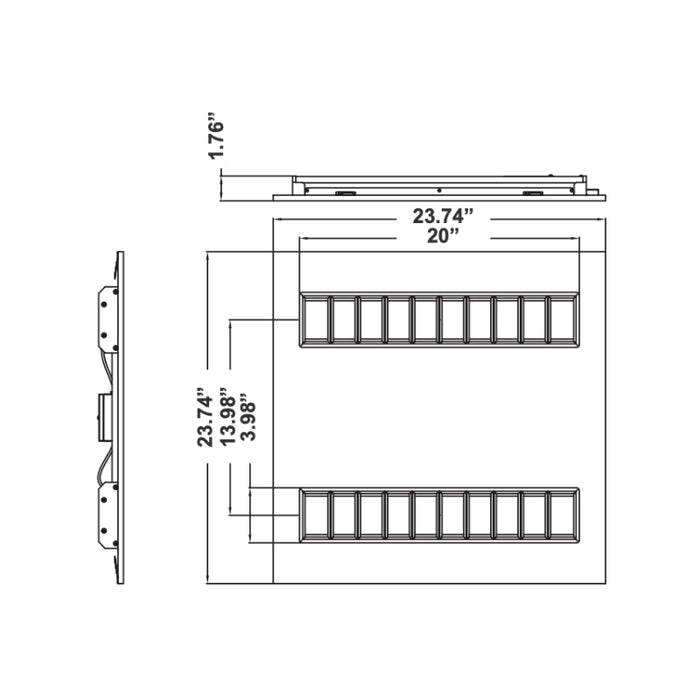

• 2x2: 23.74"(L) x 23.74" (W) x 1.76"(H)

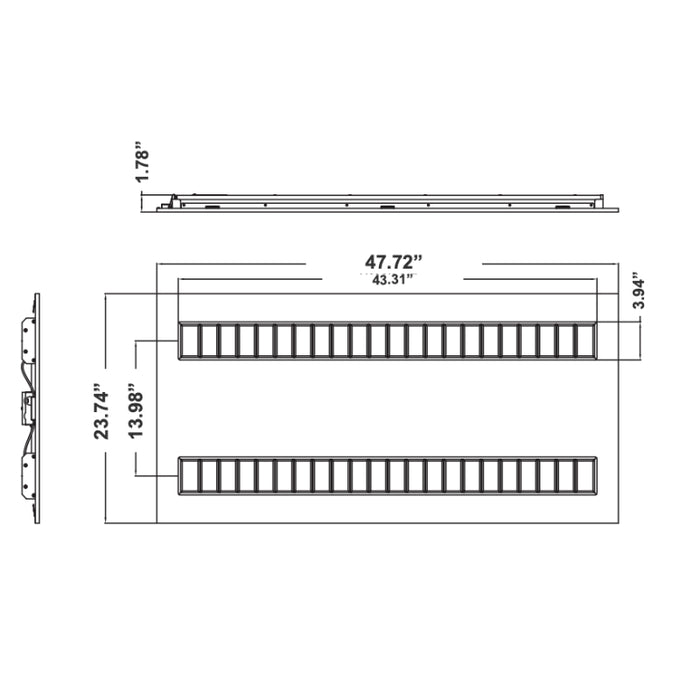

• 2x4: 47.72"(L) x 23.74" (W) x 1.78"(H)

Estimated Life

• 70,000 Hours Rated Life


Warranty

• 7-Year Warranty

Document

• Spec Sheet - 1x4
• Spec Sheet - 2x2
• Spec Sheet - 2x4
