Westgate LTRA Series LED Aperture Grille Troffer, Power & 3CCT Selectable, 120-277V, 0-10V Dimming

The Architectural Grille Troffer with wattage and CCT selectability offers customizable illumination for commercial and architectural spaces. Featuring adjustable light output and color temperatures (3000K-5000K), it provides energy-efficient, versatile, and aesthetically pleasing lighting.

Features

• Finish: White

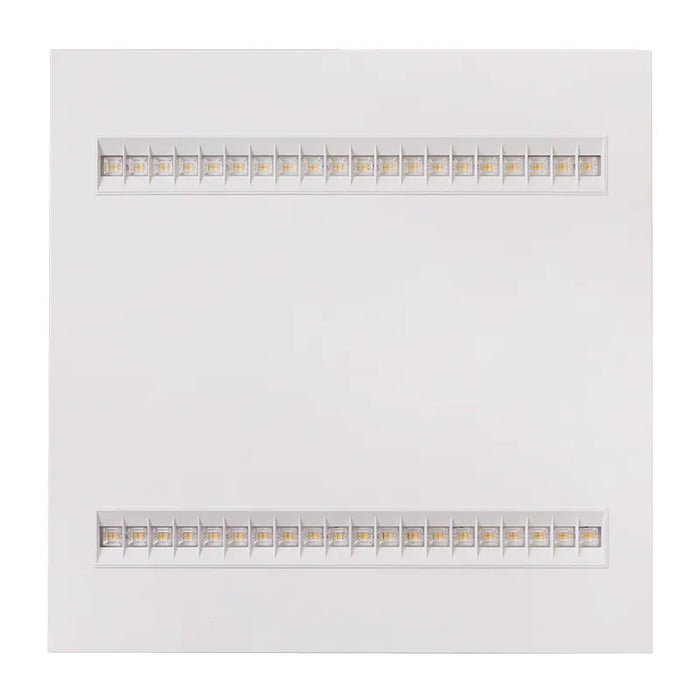

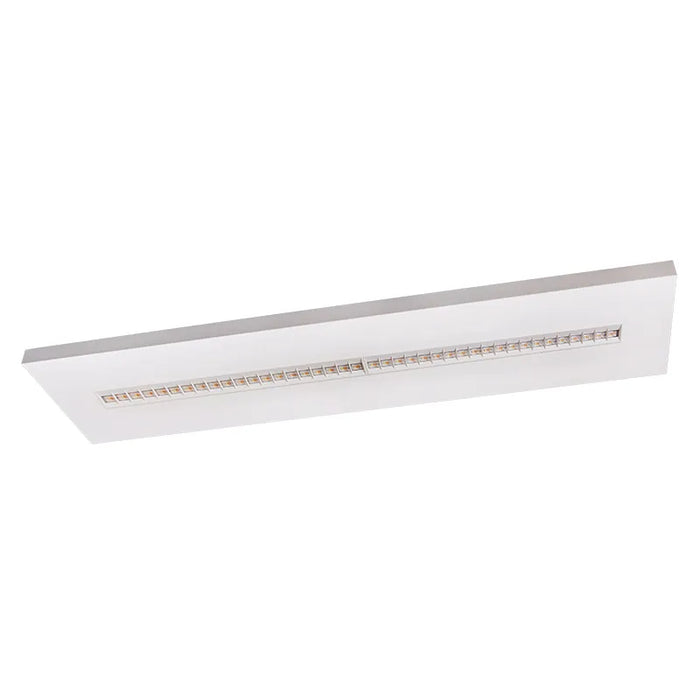

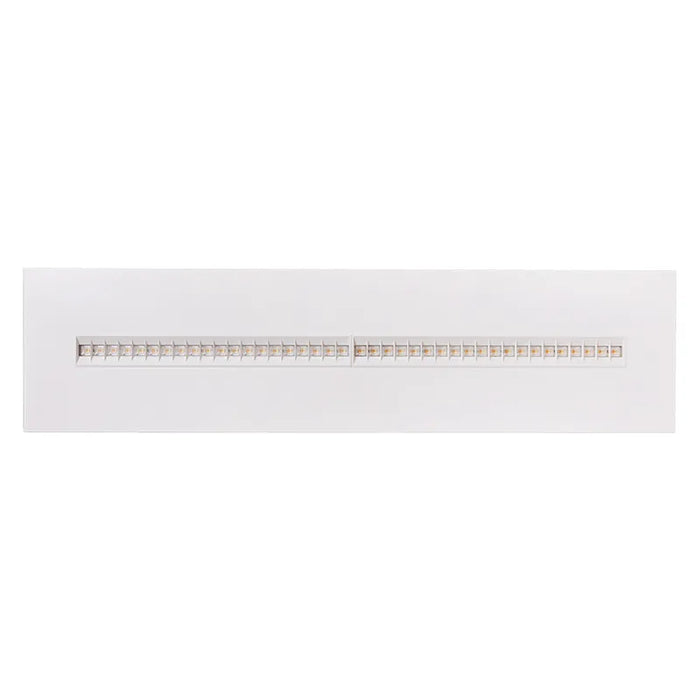

• Size: 1x4, 2x2, 2x4

• Wattage:
  • 1x4: 20W / 25W / 30W / 40W
  • 2x2: 20W / 25W / 30W / 40W
  • 2x4: 30W / 40W / 50W / 60W
• Voltage: 120-277V
• Color Temperature: 3500K / 4000K / 5000K Selectable
• Lumens:
• • 1x4: 2500 / 3125 / 3750 / 5000
  • 2x2: 2500 / 3125 / 3750 / 5000
  • 2x4: 3750 / 5000 / 6250 / 7500
• CRI: ≥80
• Dimmable: 0~10V Dimming
• Selectable Multi-CCT & Power Switches Inside The Driver Box
• High Quality LED Chips Provide High Efficiency, Heat Dissipation, Stability, And Lumen Maintenance
• Individual, Pure Aluminum Heat Sinks Offers Heat Transmission Faster Than Die Cast Steel
• Driver Disconnect provided Where Required to Comply With US And Canadian Codes
• Performance Engineered Optical Lens Assembly Delivers Unique Beam Angles and Reduces Glare
• Polycarbonate Lens

Dimension

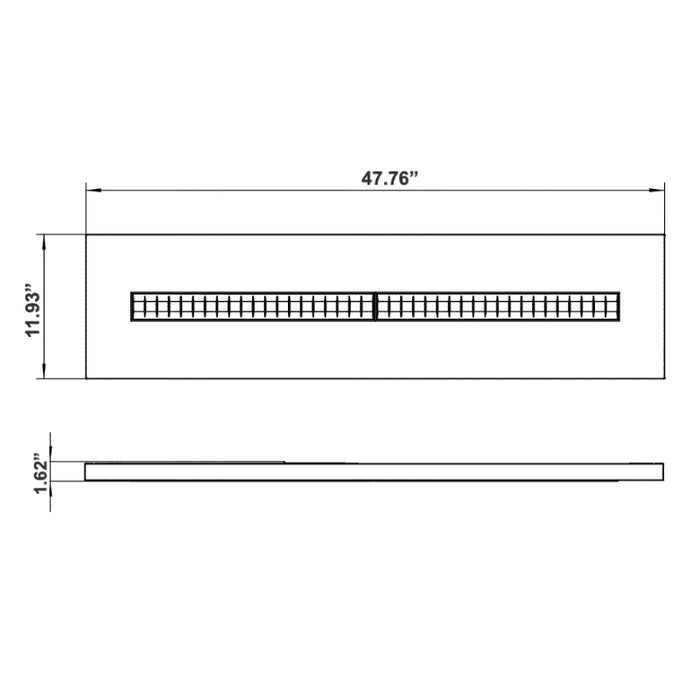

• 1x4: 47.76"(L) x 11.93" (W) x 1.62"(H)

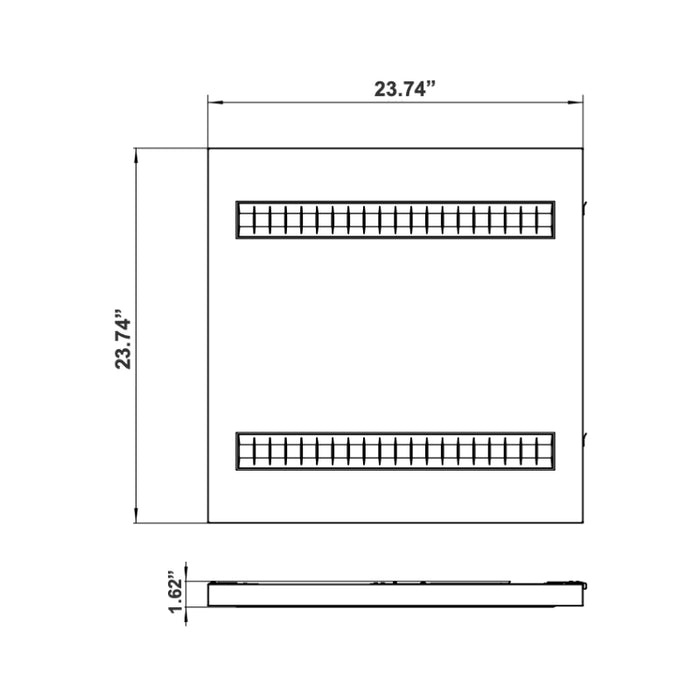

• 2x2: 23.74"(L) x 23.74" (W) x 1.62"(H)

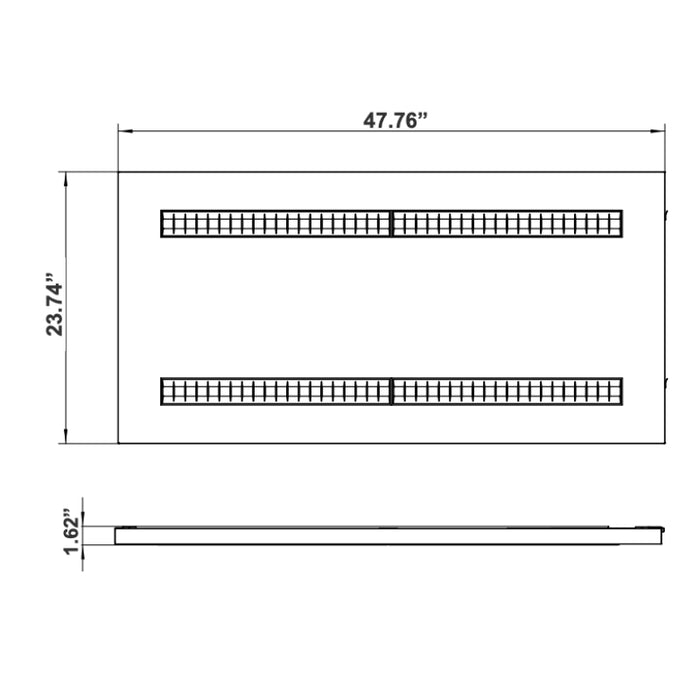

• 2x4: 47.76"(L) x 23.74" (W) x 1.62"(H)

Estimated Life

• Rated life: 50,000 hrs

Warranty

• 5-Year Warranty

Document

• Spec Sheet - 1x4
• Spec Sheet - 2x2

• Spec Sheet - 2x4
