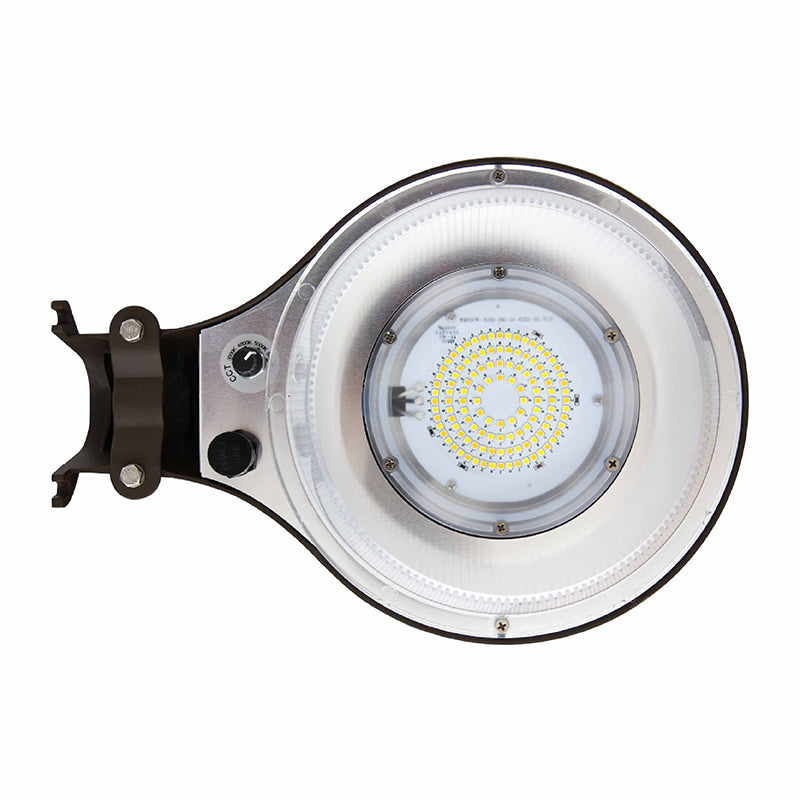

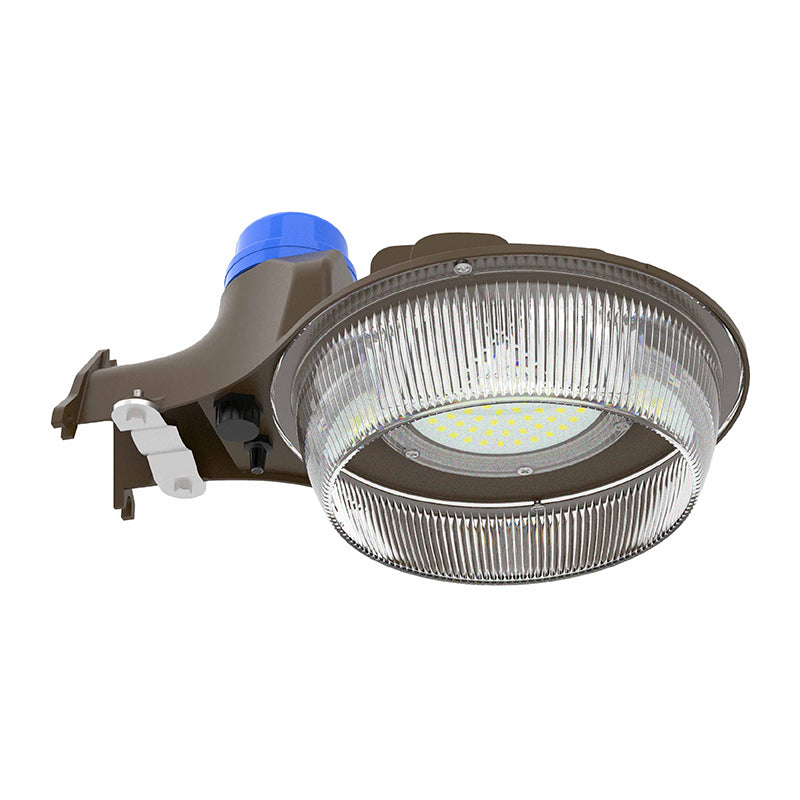

Westgate LRX 20W/30W/40W/50W LED Area Light, CCT

LED Dusk to Dawn Light with Photocell ideal for general site lighting, yarn/barn lighting, loading docks, doorway, pathway and parking areas.

Features

• Wattage: 20W / 30W / 40W / 50W Selectable

• Voltage: 120-277V
• Color Temperature: 3000K / 4000K / 5000K / 5700K Selectable
• Lumens: Up to 6800

• Dimmable: 0-10V dimming

• CRI: ≥70
• Beam Angle: 90° x 110°
• Multi CCT, Switch is on bottom of Fixture
• Die-Cast ADC12 Aluminum Alloy, Outdoor Powder Coated
• Polycarbonate Lens

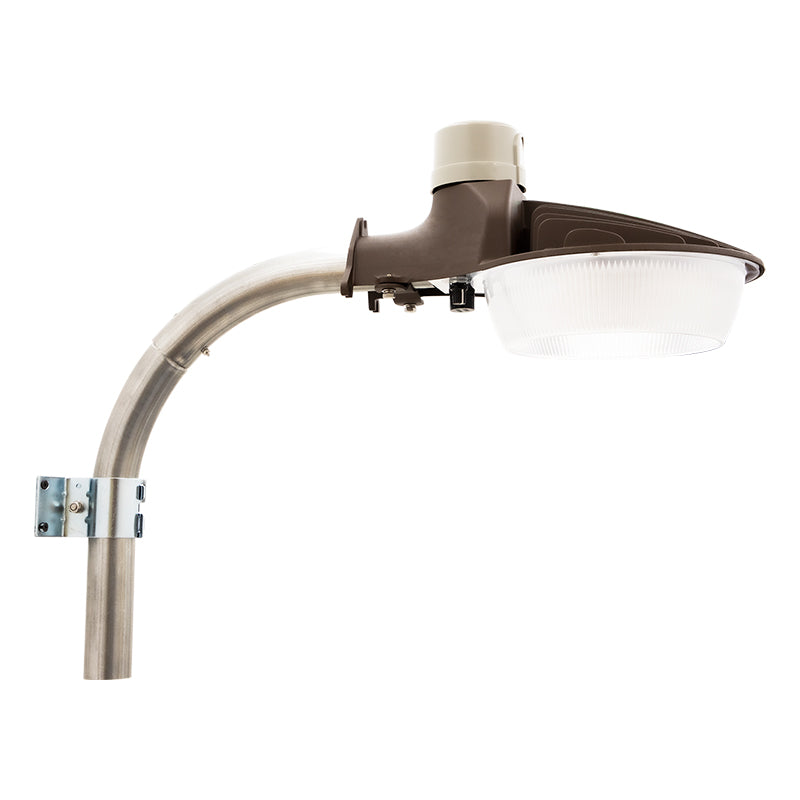

• 1.25” EMT Elbow & Mounting Strap Included
• NEMA Twist-Lock Photocell Included
• IP 44 rated

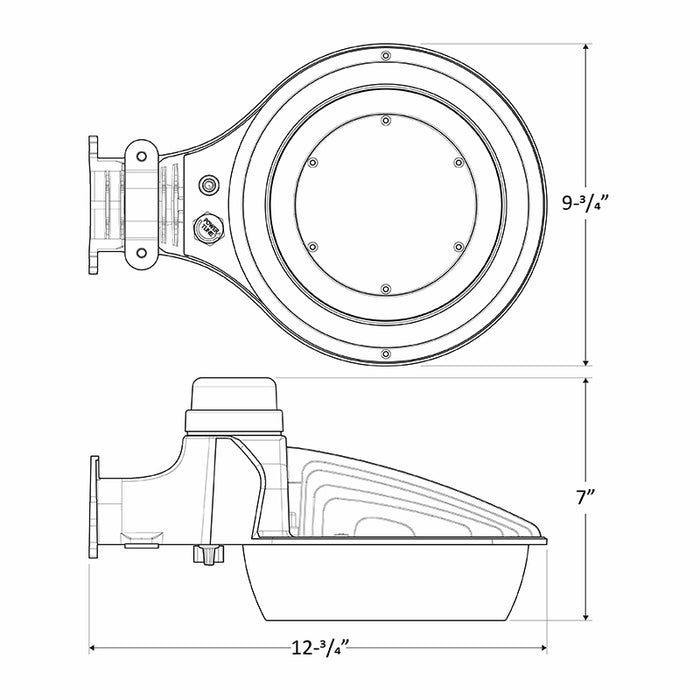

Dimensions

• Width: 9.75"

• Height: 7"
• Depth: 12.75"

Estimated Life

• 70,000 hours

Warranty

• 7-Year Warranty

Documents

• Spec Sheet
• Instruction Sheet
• Photometry & Revit (BIM)
• LRX-20 .IES
