by Westgate

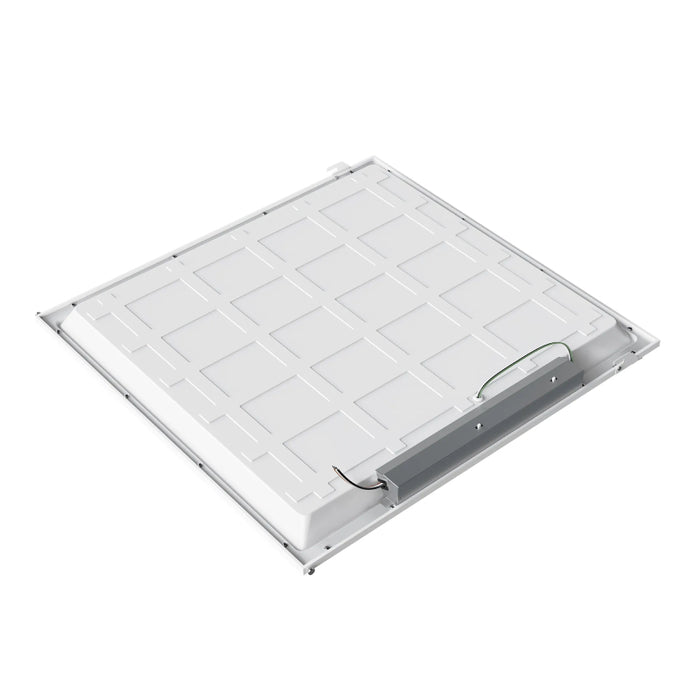

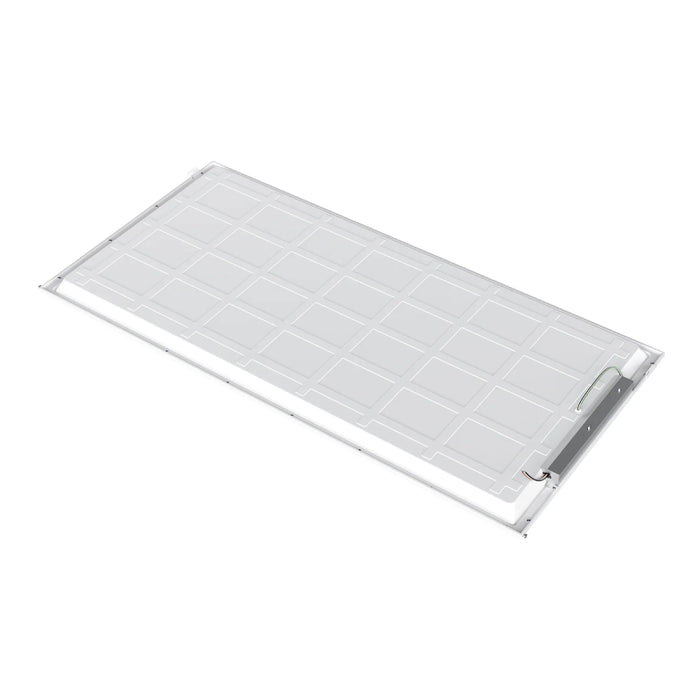

Westgate LRP-HL Series LED DLC Premium High-Lumen LED Retrofit Panel, Power & 3CCT Selectable, 120-277V, 0-10V Dimming
SKU LRP-HL-1X4-MCTP-SR
Original price
$0.00
-
Original price
$0.00
Original price
$64.74
$54.74
-
$75.74
Current price
$64.74
Availability:
in stock, ready to be shipped
Availability:
Out of stock
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here!
OVERVIEW
Features
- Finish: White
- Size: 1x4, 2x2, 2x4
- Wattage:
- 1x4: 20W / 25W / 30W
- 2x2: 20W / 25W / 30W
- 2x4: 20W / 30W / 40W
- Voltage: 120-277V
- Color Temperature: 3500K / 4000K / 5000K Selectable
- Lumens:
-
- 1x4: 2800 / 3500 / 4200
- 2x2: 2800 / 3500 / 4200
- 2x4: 3000 / 3750 / 5000
- CRI: ≥80
- Dimmable: 0~10V Dimming
-

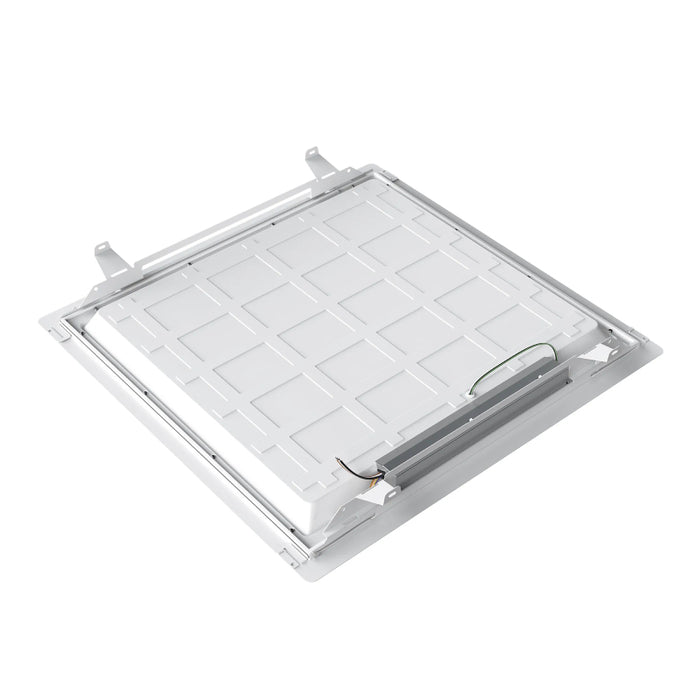

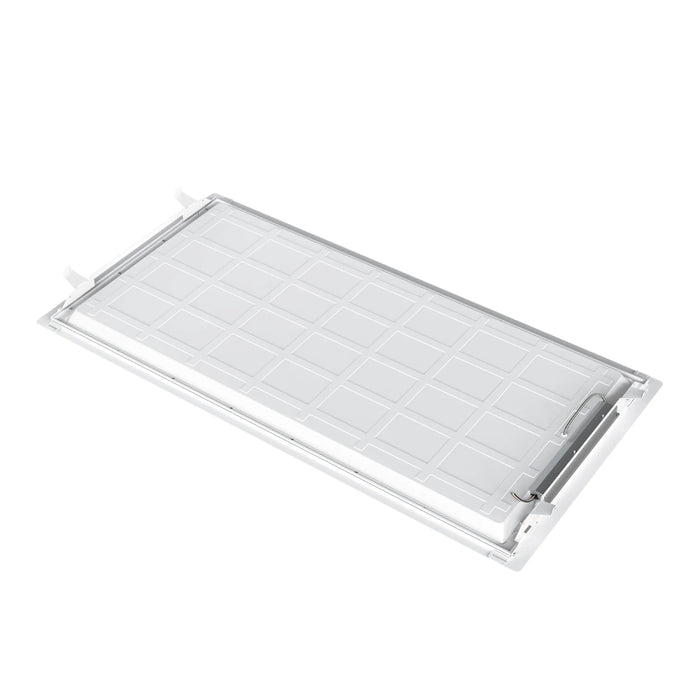

Integrated securement tabs for existing troffer housing
- Minimum 3" depth required for clearance and installation
- Powder coated after fabrication for durability and corrosion resistance
- Tool-free installation; light module removable from below ceiling
- Sensor-ready plug-and-play design
Dimension
- 2x2: 22" (L) x 21.4" (W) x 1.48" (D)
- 2x4: 24" (L) x 22" (W) x 1.48" (D)
Estimated Life
-
Rated life: 50,000 hrs
Warranty
- 5-Year Warranty
