Westgate LLB 8-ft 60W/70W/80W Linear Low Bay with Emergency Backup, Power & 3CCT Selectable, 120-277V

The LLB Series 8FT Linear Low Bay provides high-output, high-efficiency illumination for large commercial and industrial spaces.

Features

• Finish: Matte White
• Wattage: 60W / 70W / 80W
• Voltage: 120-277V
• Color Temperature: 3500K / 4000K / 5000K Selectable
• Lumens: 9000 / 10500 / 12000
• CRI: 80+
• Dimming: 0-10V dimming
• Beam Angle: 110°

• Smooth PMMA cover lens

• 22-gauge metal housing
• Lens and LED board built-in-one design
• V-hook included
• Pre-installed emergency backup reduces field installation time

• Provides emergency illumination during power loss
• Emergency Output Power: 8W
• Emergency Runtime: ≥1.5 Hours
• Emergency Driver Input Voltage: 100-347VAC
• Battery: LiFePO4, 6.4V / 3000mAh
• Charging Time: 24 Hours
• Test switch and indicator light included

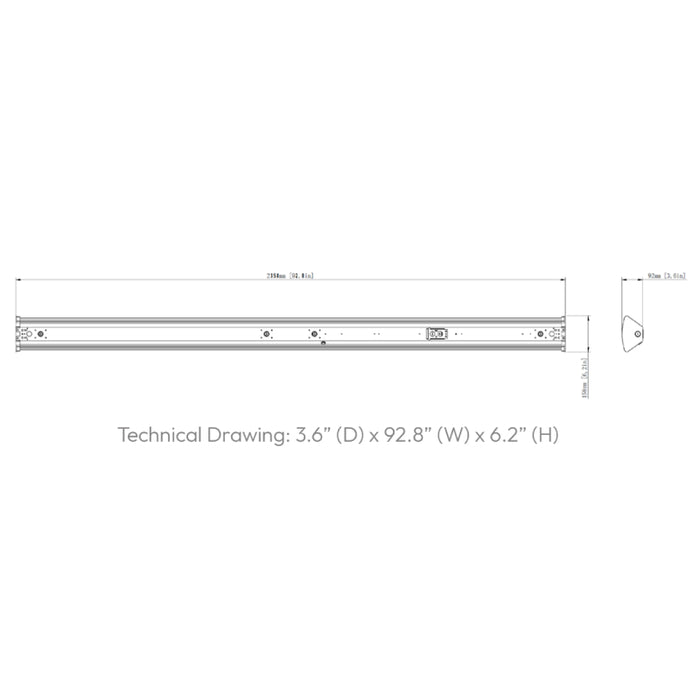

Dimensions

• Length: 92.8"

• Height: 6.2"
• Depth: 3.6"

Warranty

• 5-Year Warranty

Documents

• Spec Sheet
• Instruction Sheet

Accessories (Sold Separately):

• Reflector Accessory: LLB-8FT-REFL

Labels and Listings

• UL Listed
