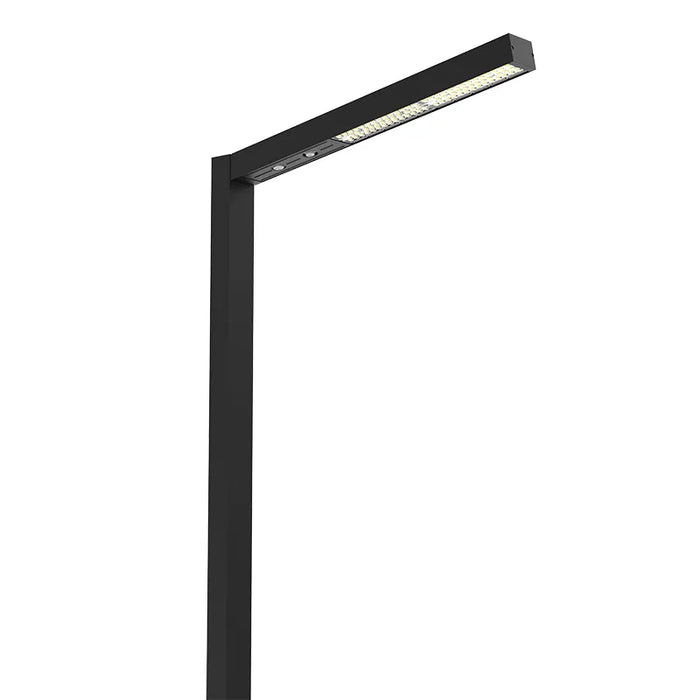

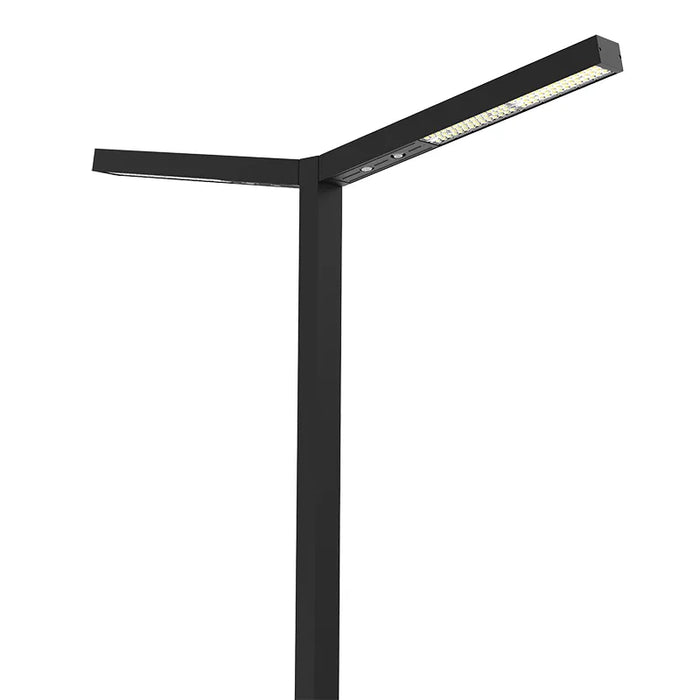

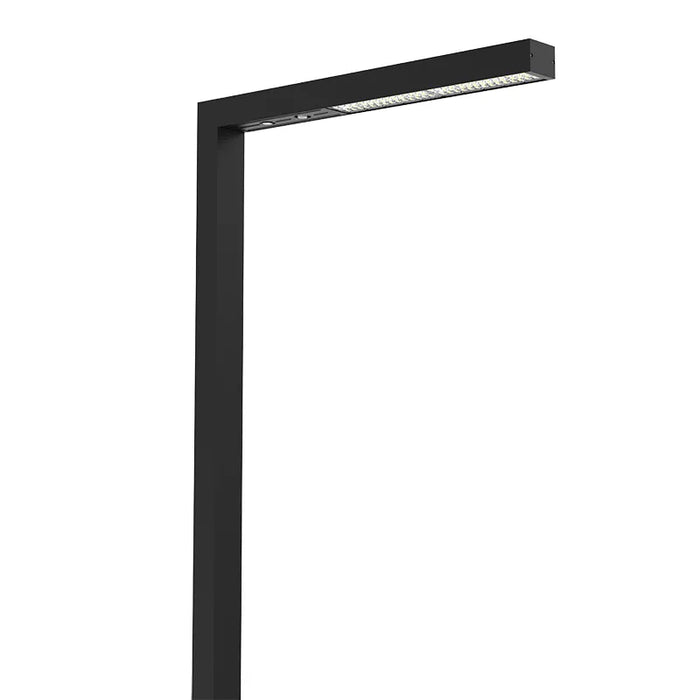

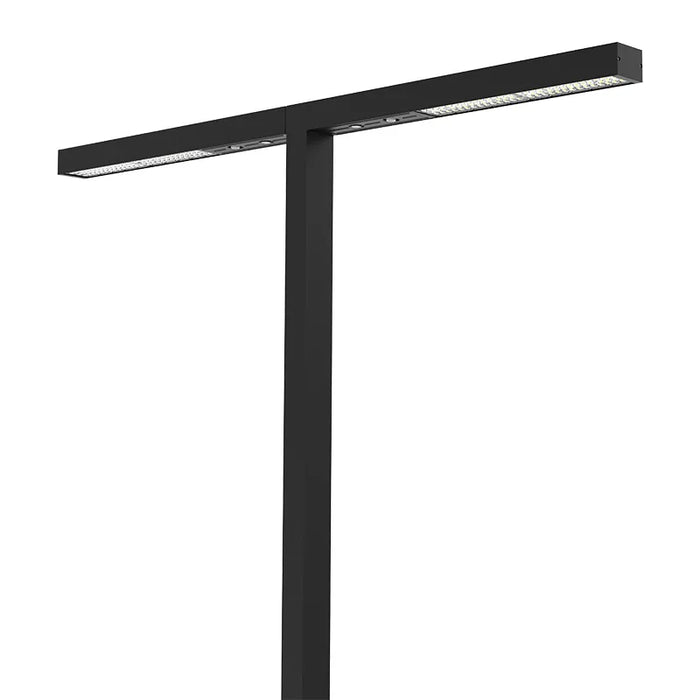

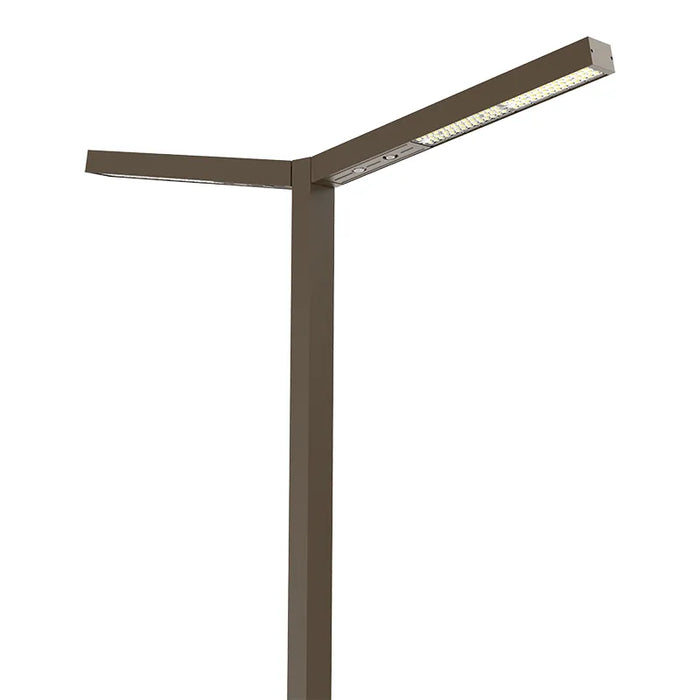

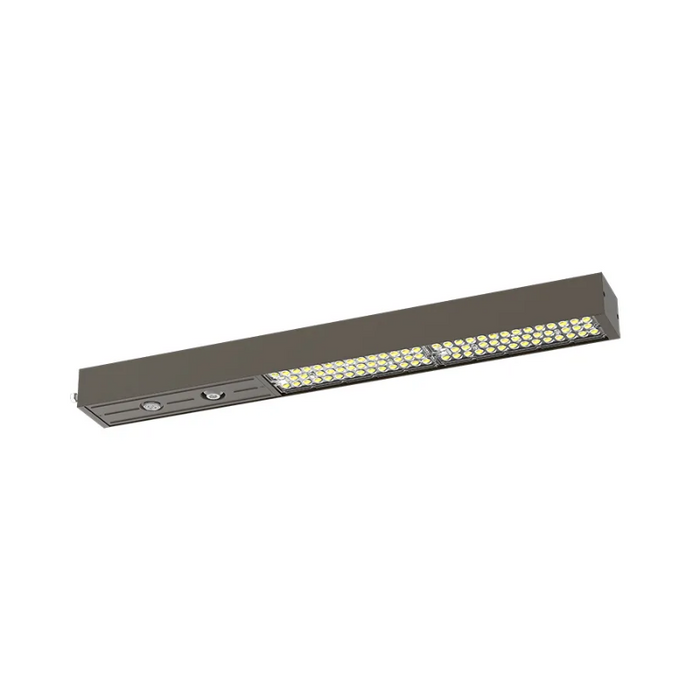

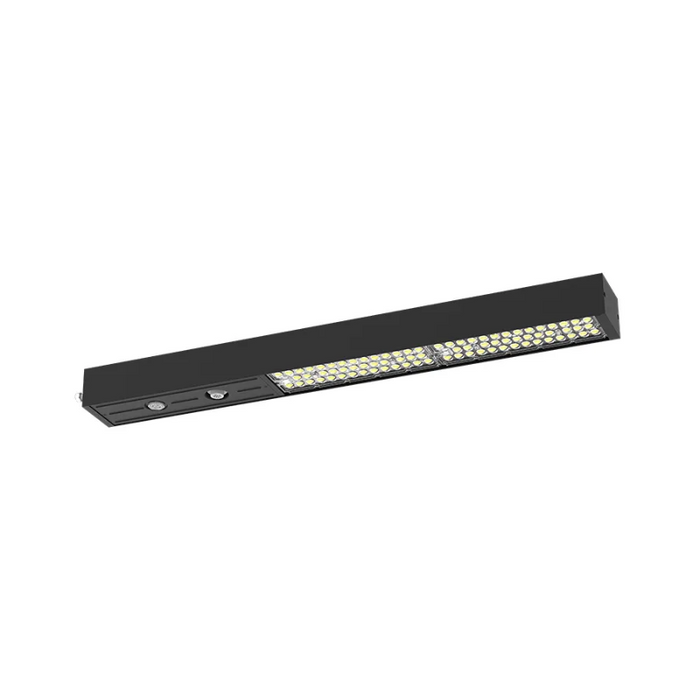

Westgate LFXU 90W/100W/150W LED Urban Area and Roadway Light for 4" Poles, 3CCT Selectable, 100-277V, Photocell Included

Features

• Finish: Bronze, Black
• Lens: High Light Transmittance PC, anti-UV and Fire Resistant
• Construction: AL1060 Aluminum Hosing, Outdoor Powder Coating
• Wattage: 90W / 100W / 150W
• Voltage: 100-277V
• Color Temperature: 3000K / 4000K / 5000K Selectable
• Lumens: 13550 / 15000 / 22500
• CRI: 70+

• Dimmable: 0-10V dimming
• Beam Angle: Type V 150° x 150°

• Aluminum LED Board: High Conductive, Waterproof, Aging Resistance, Salt Resistance
• 10KV Lightning Surge Protection
• Multi CCT and Power: Selectable Switch inside of the Fixture

• 10° Wedge Mounting Adaptor is included with each Fixture
• Photocell included (With Disconnect Switch)

• EPA Rating: 3.25 sq. ft.
• IP66 rated
• Poles not include.

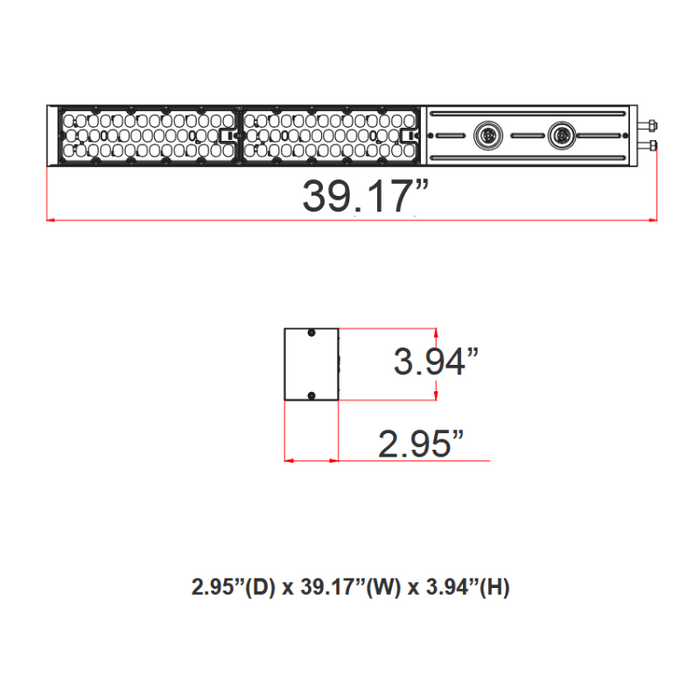

Dimensions

• Width: 39.17"
• Height: 3.94"
• Depth: 2.95"

• Power Cable: 1.5-ft

Estimated Life

• 70,000 hours

Warranty

• 7-year limited warranty

Documents

• Spec Sheet
• Instruction Sheet

Accessories:

• Replacement Lens: LFXU-LENS-TYPE2, LFXU-LENS-TYPE4 (Sold Separately)

• Universal Pole Grabber Mounting: LFXU-UPG (Sold Separately)
