Westgate ELB-2048 20W Split Emergency Battery Backup

WestgateSKU: ELB-2048

Price:
$106.74
Stock:
In stock (919 units), ready to be shipped

Description

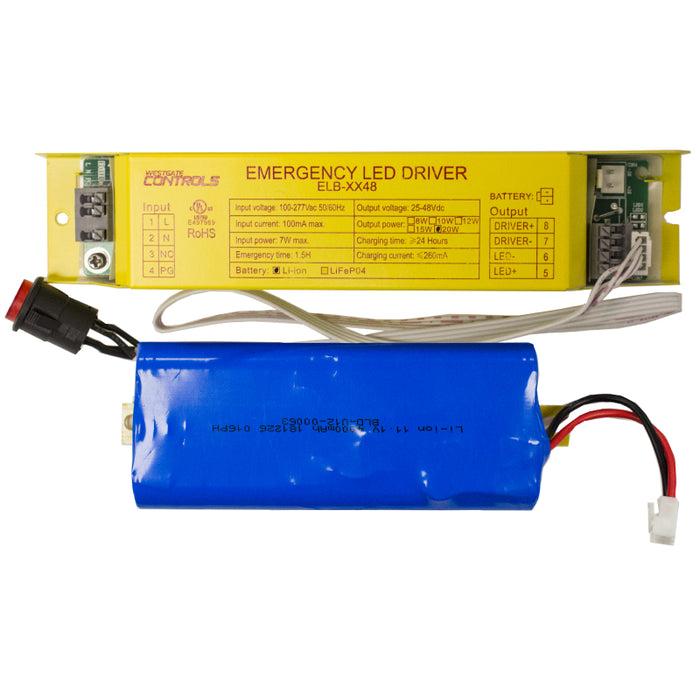

ELB-2048 is a CEC-Compliant, UL-Listed and approved for field installation emergency lighting system for fixtures with Isolated drivers. For use with LED modules driven by a constant current source. The complete split system includes the EM driver, battery charger, battery, test switch with integrated indicator light.

Features

  • Output Power: 20W Max
  • Output Voltage: 25-48V
  • Input Voltage: 100-277VAC
  • AC Input Power: 7W max
  • Battery: Li-ion (Lithium-ion), 11.1V / 4000mAh
  • Test Switch w/ Integrated Indicator Light

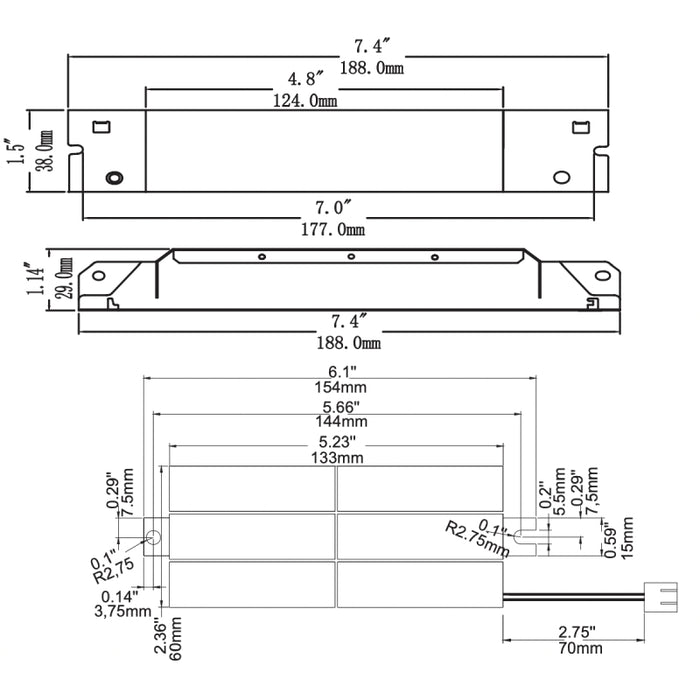

Dimension

  • Case: 7.4''x1.5''x 1.14''(mounting center 7.0")
  • Battery: 6.1"x 2.36''(mounting center 5.66'')

Document
