Description

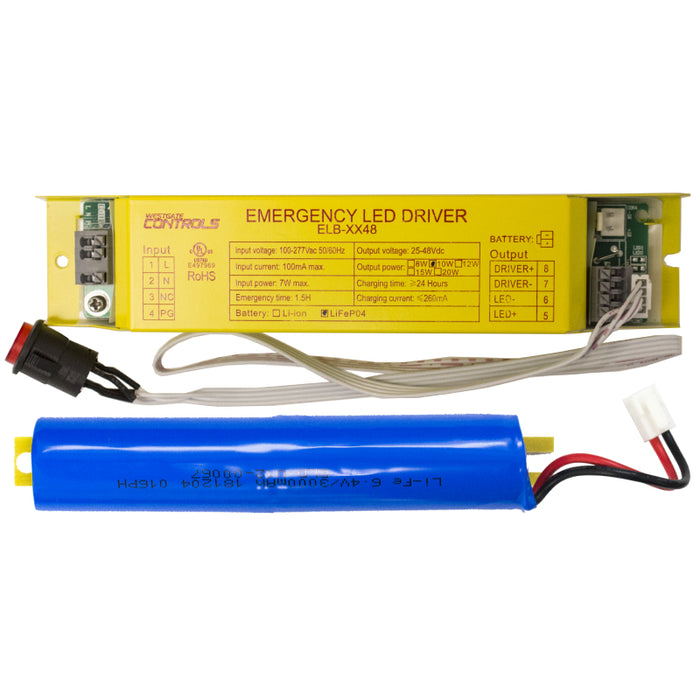

ELB-1048-HH is a CEC-Compliant, UL-Listed and approved for field installation emergency lighting system for fixtures with Isolated drivers. For use with LED modules driven by a constant current source. The LiFeP04 battery’s high heat tolerance makes this unit suitable for installation in enclosed fixtures. The complete split system includes the EM driver, battery charger, battery, test switch with integrated indicator light.
Features
- Output Power: 10W Max
- Output Voltage: 25-48V
- Input Voltage: 100-277VAC
- AC Input Power: 7W max
- Battery: LiFeP04 (Lithium Iron Phosphate), 6.4V / 3000mAh
- Test Switch w/ Integrated Indicator Light

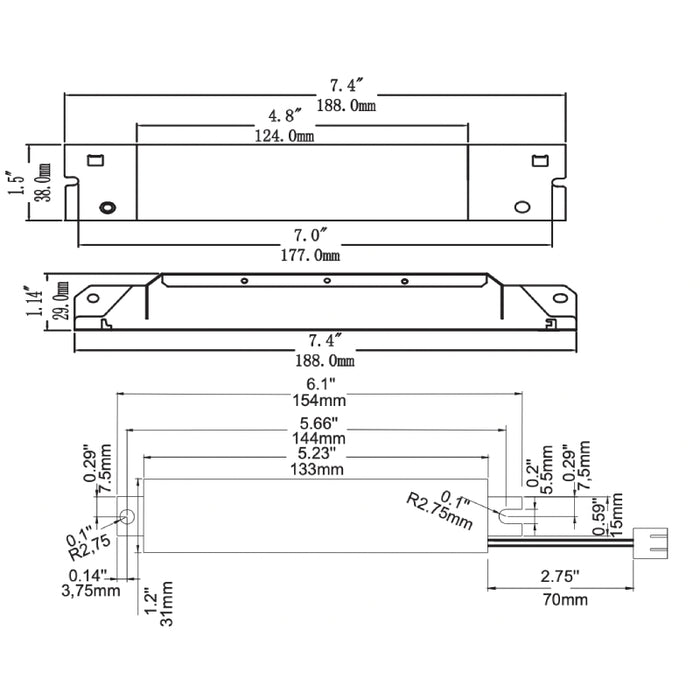

Dimension
- Case: 7.4''x1.5''x1.1''(mounting center-7.0")
- Battery: 6.1"x1.2''(mounting center-5.66'')
Document
Labels
