by Wattstopper

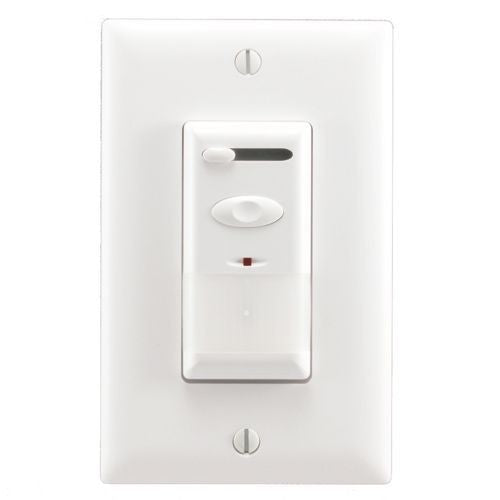

WD-270 Passive Infrared Dimmable Wall Switch Sensor
SKU WD-270-W
Original price
$0.00
-
Original price
$0.00
Original price
$78.48
$78.48
-
$78.48
Current price
$78.48
Estimated Shipping Widget will be displayed here! (with custom color)
OVERVIEW
The WD sensors are decorator style, dimmable automatic wall switches. They replace standard wall switches and work with fluorescent fixtures using ballasts with line voltage phase control input or Advance® Mark X™ electronic dimmable ballasts as well as incandescent fixtures.
Features
- Wallplate sold separately
- Color: White
- Voltage: 120 VAC; 60 Hz
- Load Rating: 10-500 W Ballast, 0-500W Tungsten
- Coverage: 180°, 300 ft2
- OFF Mode: Dim-bef-disconnect
- Light Output 1FCD: Automatic On/Off, Manual On/Off
- Response Time: 5 to 30 mins
- Occupancy sensing dimmable wall switch
- Slide dimmer adjusts light level
- Low profile, flat decorator design
- Works with dimming ballasts or incandescent lamps
- Vandal resistant, hard lens
- ASIC enhances reliability and helps to eliminate false triggers
