WaveLinx OCS-C-D12 CAT Dual Tech Ceiling Sensor, 1200 sqft
SKU OCS-C-D12
Original price
$0.00
-
Original price
$0.00
Original price
$177.87
$177.87
-
$177.87
Current price
$177.87
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here!
OVERVIEW
The WaveLinx CAT ceiling sensor is offered in two varieties - the passive infrared (PIR) and dual tech. The PIR technology detects the presence of people by sensing changes in heat, while dual tech combines PIR with acoustic feature that listens for sounds, such as talking or movement, to determine if an area is still occupied.
Features
- Color: White
- Voltage: 9.5 - 22.5 VDC supplied by communication bus
- Coverage: 1200 sq. ft.
- Wiring: 18 AWG stranded PTFE plenum rated
- Passive Infrared and Acoustic sensing technologies working together to detect motion up to 12 ft mounting height
- Built-in photocell to dim or turn off the lights based on daylight coming into the space
- LED Status Indicator for simple troubleshooting
- Draws power from CAT communications bus to simplify wiring
- Adjustable settings (e.g. occupancy time delays, photocell set-points) via WaveLinx software apps
- Remotely upgradeable firmware

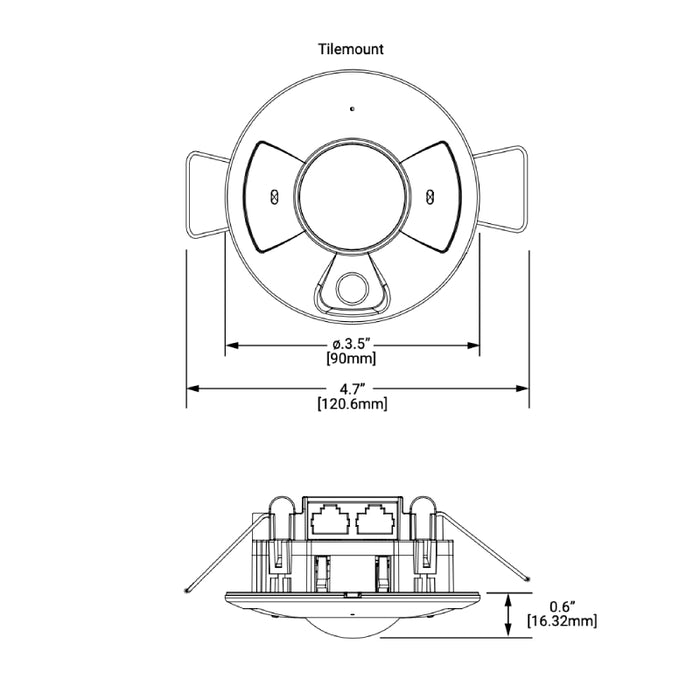

Dimension
- Diameter: 4.7"
- Height: 0.6"
Warranty
- 5-year warranty
