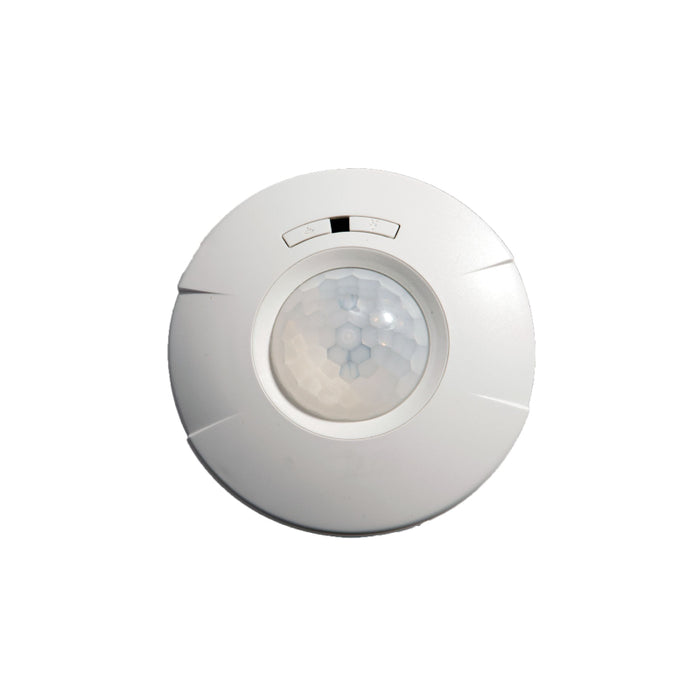

WaveLinx CWPD-1500 PRO Ceiling Sensor

The PRO Ceiling Sensor (CWPD-1500), a room based wireless sensor is an integral part of the WaveLinx System and offers Passive Infra Red (PIR) occupancy sensing. They have coverage patterns up to 1500 square feet. The room based sensor is battery powered and is one of the smallest ceiling mounted room based wireless occupancy sensors on the market.

Features

• Finish: White
• Passive Infrared (PIR) sensor with 1500 sqft coverage – Enables flexible placement of sensor within a space

• Daylight sensor with up to 1000 lux range – Increase energy savings by dimming the lights when the space is adequately lit by natural light
• Software configurable settings – Adjust the sensor settings (time delay, sensitivity, others) remotely using WaveLinx mobile and web applications
• Battery powered with up to 7 years battery life – Eliminates the need to pull additional wire, making installation quick and easy
• Housing: UV stabilized plastic

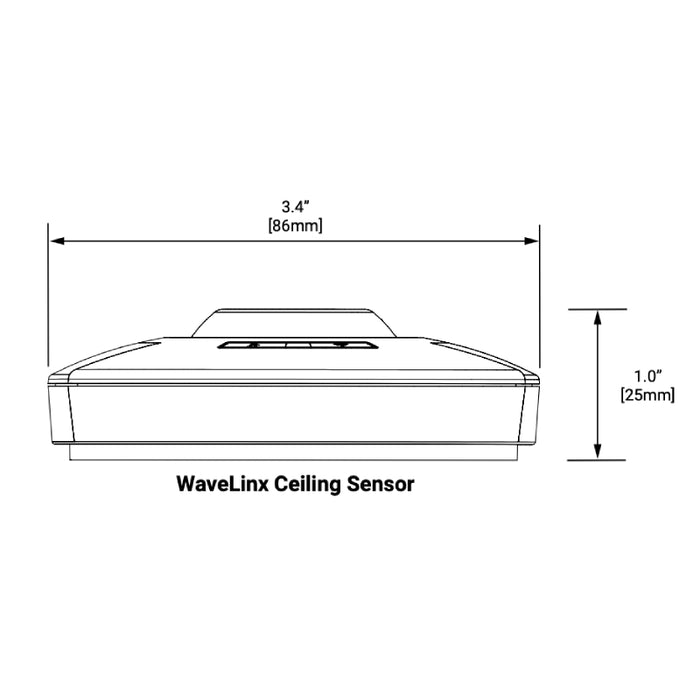

Dimensions

• Diameter: 3.4"
• Height: 1"

Warranty

• Five-year warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus Listed - Energy Management Equipment (UL916)
• RoHS Compliant
• Meets latest ASHRAE Standard 90.1 requirements
• Meets latest IECC requirements
• Meets latest CEC Title 24 requirements
