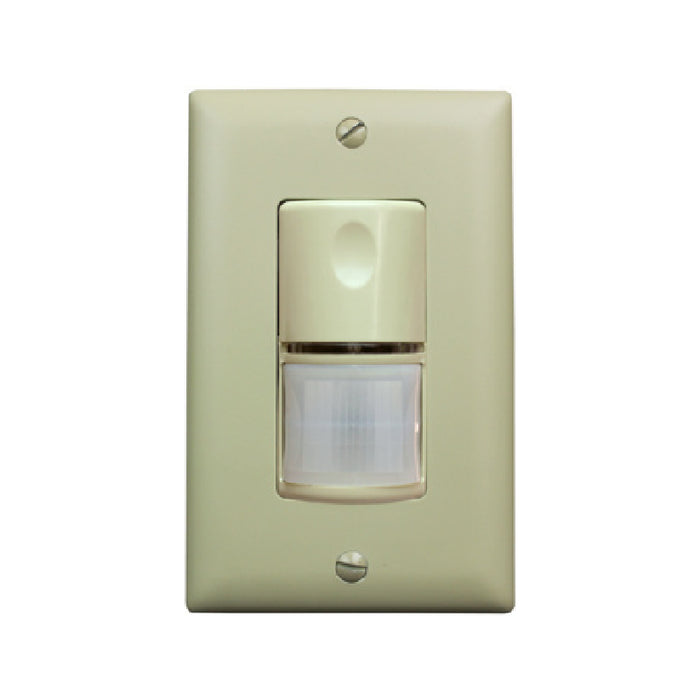

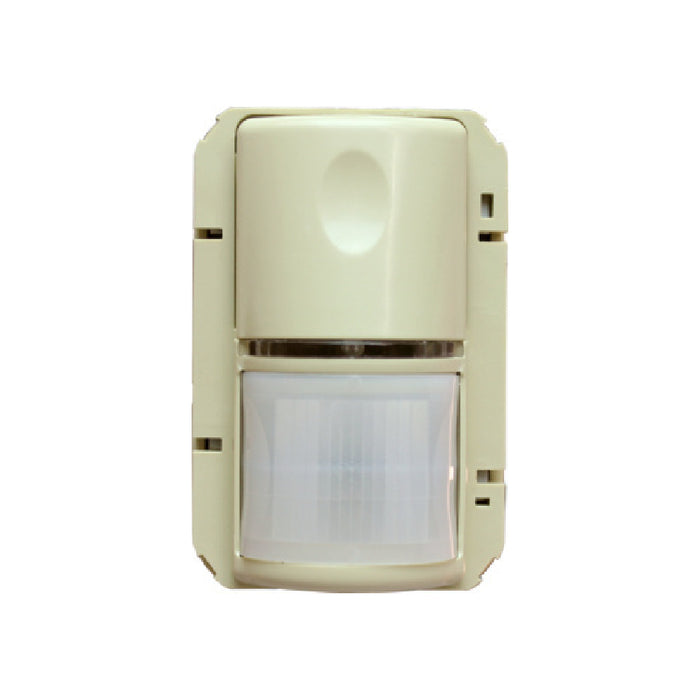

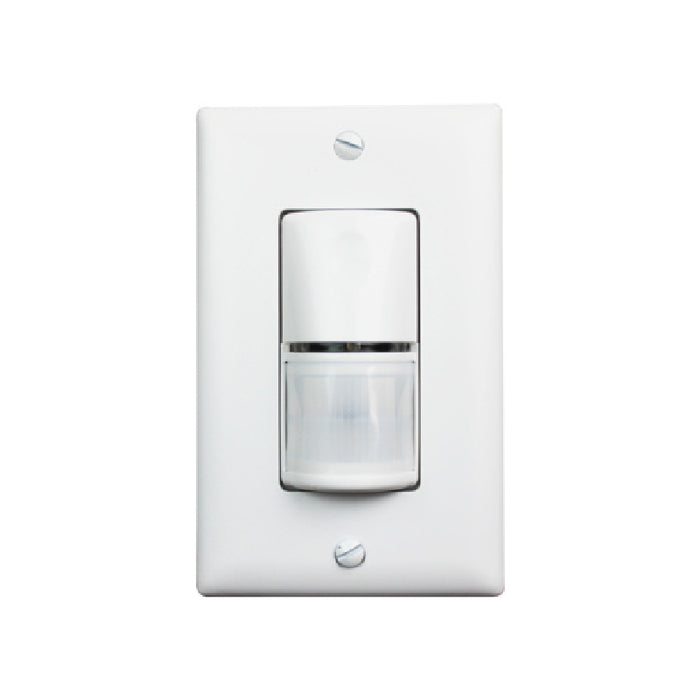

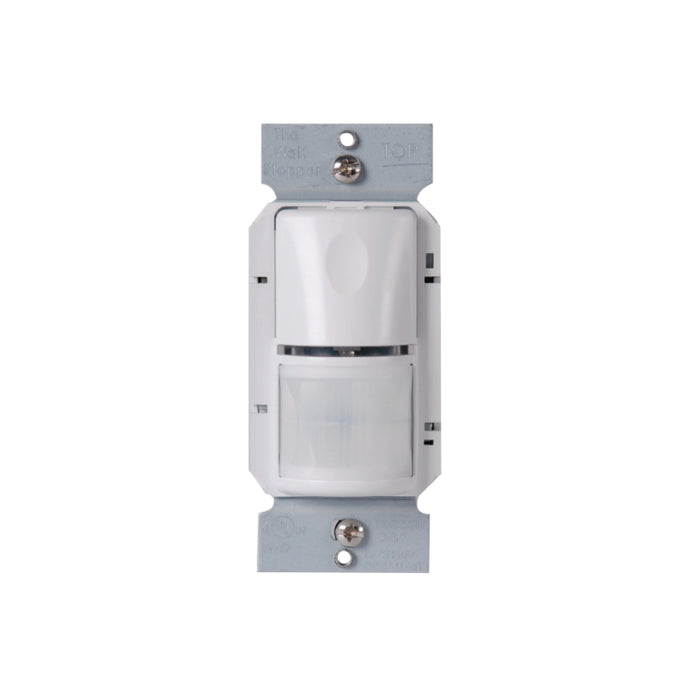

Wattstopper WS-301-I-U PIR Wall Switch Occupancy Sensor, BAA/BABA
SKU WS-301-I-U
Original price
$0.00
-
Original price
$0.00
Original price
$84.94
$84.94
-
$84.94
Current price
$84.94
Availability:
In stock
Availability:
In stock
Estimated Shipping Widget will be displayed here!
OVERVIEW
The WS-301 Passive Infrared (PIR) Wall Switch Sensor turns lighting or fan loads on and off based on occupancy and ambient light level. The sensor replaces existing wall switches and fits behind a standard decorator wall plate.
Features
- Wallplate sold separately
- Color: Ivory, White
- Voltage: 120/240/277VAC; 50/60Hz
- Load:
- 120VAC: 0-1000W ballast, LED, tungsten; 1/4 hp motor
- 240/277VAC: 0-1200W ballast, LED; 1/4 hp motor
- Coverage: Major motion 35’ x 30’ , Minor motion 20’ x 15’
- Time delay adjustable from 30 seconds up to 30 minutes
- Adjustable light level setting of 10 to 200 footcandles (107.6 to 2,153 lux)
- Adjustable sensitivity from 20% to 100%
- Defaults to Manual-ON operation for maximum energy savings
- 180° coverage, maximum of 900 ft2
- Shallow (1”) back housing and flying leads for easy installation
- Built-in light level sensor
- Button provides positive tactile feedback
Dimensions
- Length: 2.68"
- Width: 1.75"
- Depth: 1.04"
Documents
Documents
Labels and Listings
- UL and cUL listed
