Wattstopper LMPX-100 Digital PIR Corner Mount Occupancy Sensor

SKU LMPX-100
Original price $0.00 - Original price $0.00
Original price
$213.30
$213.30 - $217.44
Current price $213.30
Availability:
in stock, ready to be shipped
Availability:
Out of stock
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Coverage: High Density Lens

Estimated Shipping Widget will be displayed here!

OVERVIEW

The LMPX-100 Digital PIR Corner Mount Occupancy Sensor uses passive infrared (PIR) technology and one of four lenses to detect occupancy in different types of spaces for energy-efficient control of lighting and plug loads. It is a digital sensor, and is part of a Wattstopper Digital Lighting Management (DLM) system.

Features:

  • Type: Digital Occupancy Sensor
  • Color: White
  • Coverage Patterns: High Density Lens, Extended Height Lens
  • Typical Applications: Typical Applications: Large Offices, Computer Rooms, Kindergarten Classrooms, Aisleways, Warehouses, Open Offices
  • Special Features: Special Features: Infrared (IR) transceiver,LCD display and pushbuttons
  • IR Range On Axis: 2000 Sq. Ft.
  • Response Time: 1-30 minutes
  • Votlage: 24VDC
  • Current consumption: 7mA
  • Passive infrared sensor with a choice of four coverage patterns
  • Component of Digital Lighting Management integrated control system
  • Quick access to Push n??Learn for system personalization

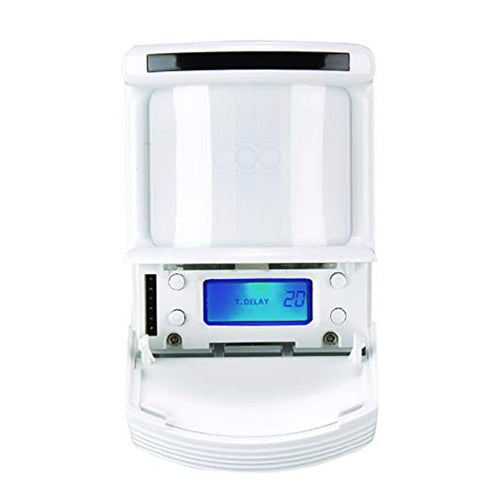

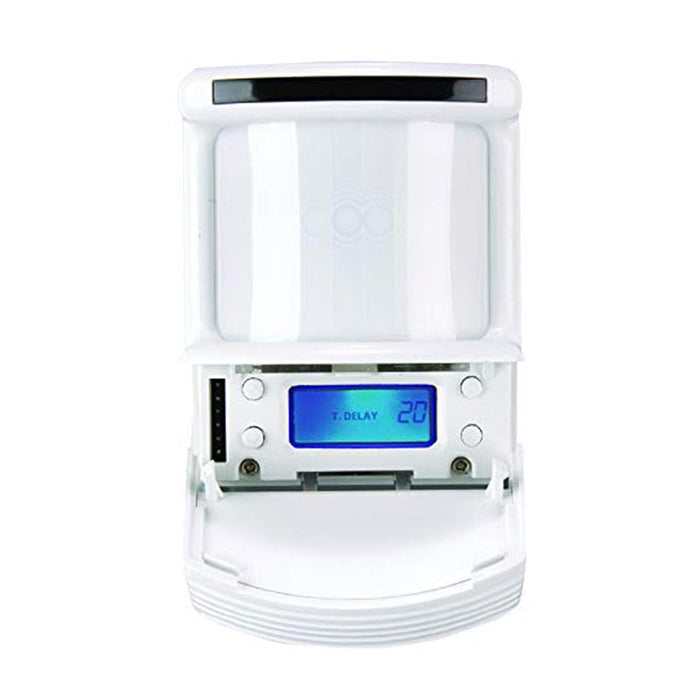

  • Digital sensor with LCD display and programming pushbuttons behind snap-down cover
  • IR transceiver for wireless configuration and remote control

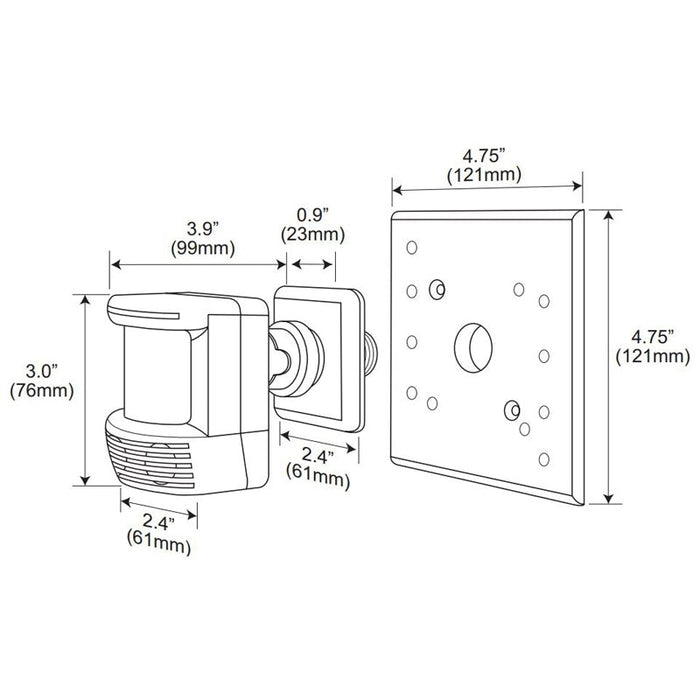

  • Compact 2.4??x 3??sensor mounts easily on a wall or ceiling

Models:

LMPX-100, LMPX-100-1, LMPX-100-3, LMPX-100-4
