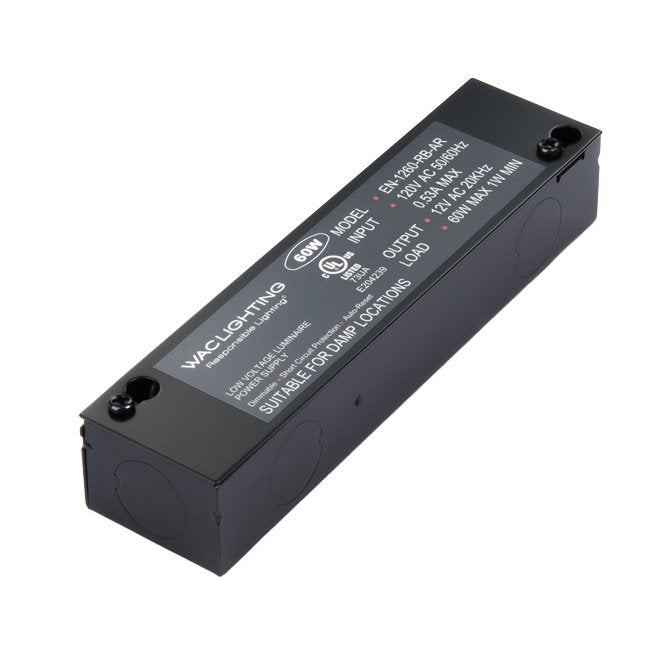

Low Voltage Class II electronic transformer designed to be used as an enclosed remote transformer. Enclosure has separate compartments for transformer, line and low voltage wiring.
- Type: Electronic
- Wattage: 60W
- Input Voltage: 120V 50/60HZ
- Output Voltage: 12V
- Minimum Load: 20W
- Maximum Load: 60W
- Dimmable with electronic low voltage dimmer. Dimmer should always be installed on the primary side of the transformer
- Built-in auto reset, soft start, short and overload circuit protection features. The soft start delayed start feature extends lamp life by delaying the abrupt inrush current to the lamp.
- Class II transformers are inherently protected and power limited, protecting the lighting system from both normal and abnormal short circuits
- Enclosure has knockouts on three sides. Screw holes are located on one long side for securing enclosure in place
