by Sure-Lites

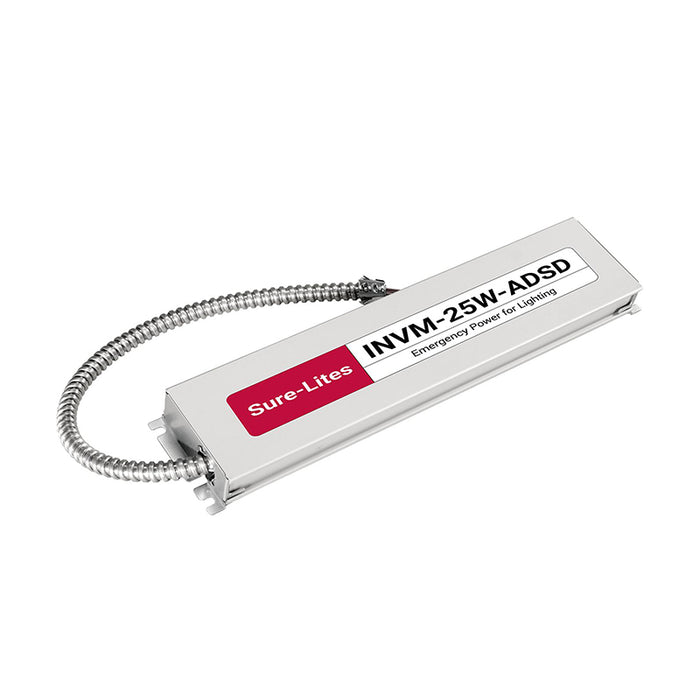

Sure-Lites INVM-25W-ADSD 25W Emergency Power for Lighting, 25VA Output Micro Inverter, 0-10V Auto-Dimming
SKU INVM-25W-ADSD
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$347.50
$347.50
-
$347.50
Current price
$347.50
Availability:
Out of stock
Estimated Shipping Widget will be displayed here!
OVERVIEW
The Emergency Lighting Micro/Mini Inverters are a perfect fit in a distributed emergency lighting systems where emergency LED drivers cannot be used, such as with Type B TLEDs, integral-base lamps, or luminaires with drivers integral to the LED array (e.g. flat panels or UFO high-bays).
Features
- Wattage: 25W
- Voltage: 120-277V
- Provides 90 minutes of 25VA emergency power to lighting fixtures
- 0-10V Auto dimming allows up to 200W* max dimmable load
- 25 VA max non-dimmable load
- Automatic code-compliant testing (Self-testing)
- Automatic load monitoring after commissioning (new UL 924 requirement)
- Works with LED and fluorescent fixtures
- Ideal for (but not limited to) screw-base LED lamps
- Compatible with AC (line voltage) driven TLED lamps
- Remote-mounting up to 250 feet maximum

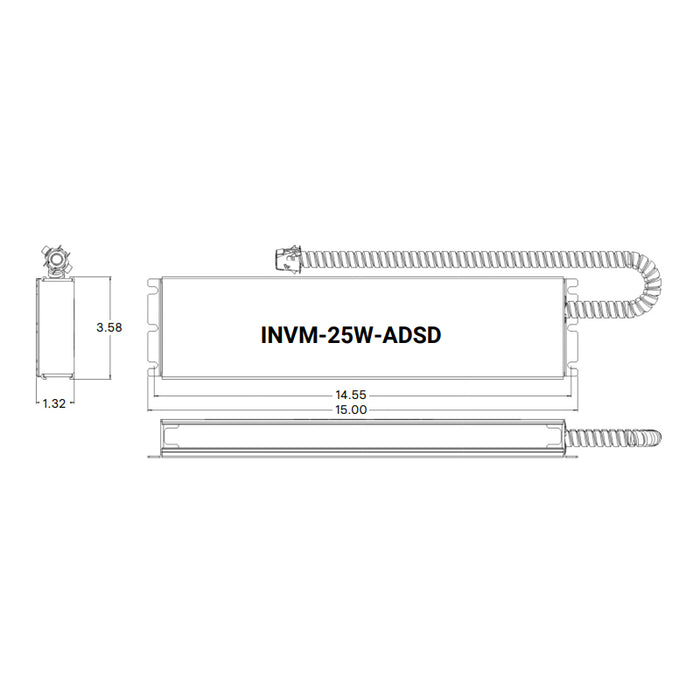

Dimensions
- Width: 15"
- Height: 3.58"
- Depth: 1.32"
- Weight: 5 lbs
Warranty
- 5-year limited warranty
Documents
Labels and Listings
- UL 924 damp location for factory or field installation
- NEC, NFPA, OSHA compliant
- CEC Title 20 compliant
- Complies with Part 15 of the FCC Rules
