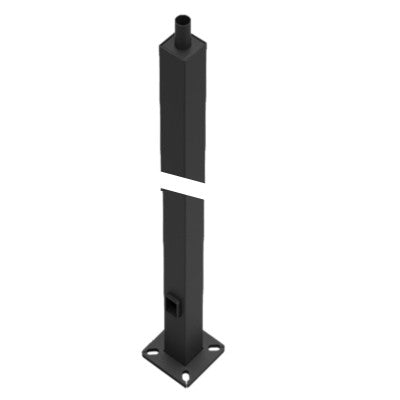

SON-QS-SSS10B4-BM-T 10Ft Mounting Height 4"x4" Square Straight Steel Pole Anchor Base, Gauge, Dark Bronze Finish Quick-Ship
Estimated Shipping Widget will be displayed here! (with custom color)
OVERVIEW
Note: All Poles are All Sales Final.
Pole

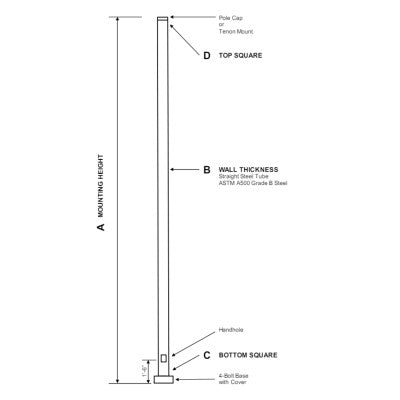

Pole shaft shall be weldable-grade, cold-rolled, commercial quality carbon steel tubing conforming to ASTM A500 Grade B.
Base Style

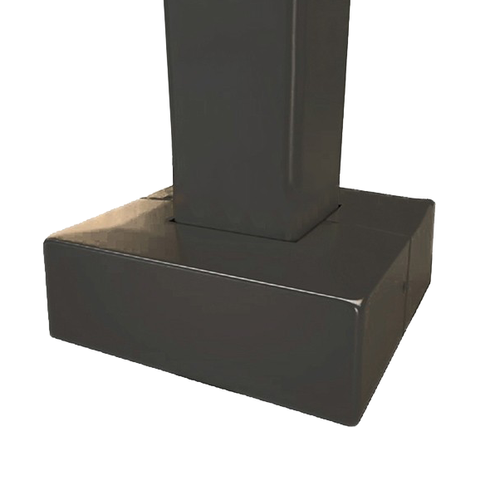

4-Bolt Steel Base Plate of fabricated hot rolled carbon steel conforming to ASTM A36 or equivalent with 2-piece Base Cover and attaching hardware.
Anchorage

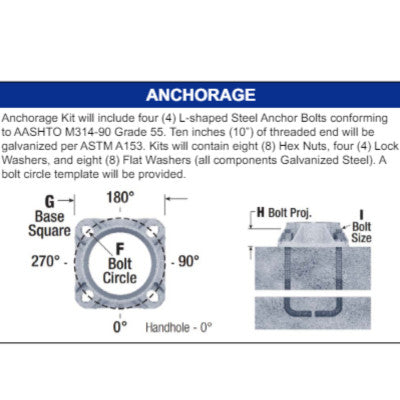

Anchorage Kit will include four (4) L-shaped Steel Anchor Bolts conforming to AASHTO M314-90 Grade 55. Ten inches (10”) of threaded end will be galvanized per ASTM A153. Kits will contain eight (8) Hex Nuts, four (4) Lock Washers, and eight (8) Flat Washers (all components Galvanized Steel). A bolt circle template will be provided.

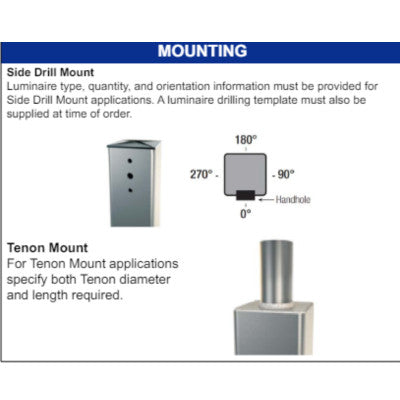

Anchor Bolts, Positioning Plate, Base Cover, & 2-3/8" Tenon are included.
EPA NOTES Effective Projected Area (EPA) in square feet. EPA’s calculated using wind velocity (mph) indicated in accordance with 2009 AASHTO LTS-5 using a 25 year design life. Maximum EPA is based on the luminaire weight shown. Increased luminaire weight may reduce the maximum EPA. If weight is exceeded, or if other design life or code is required,
