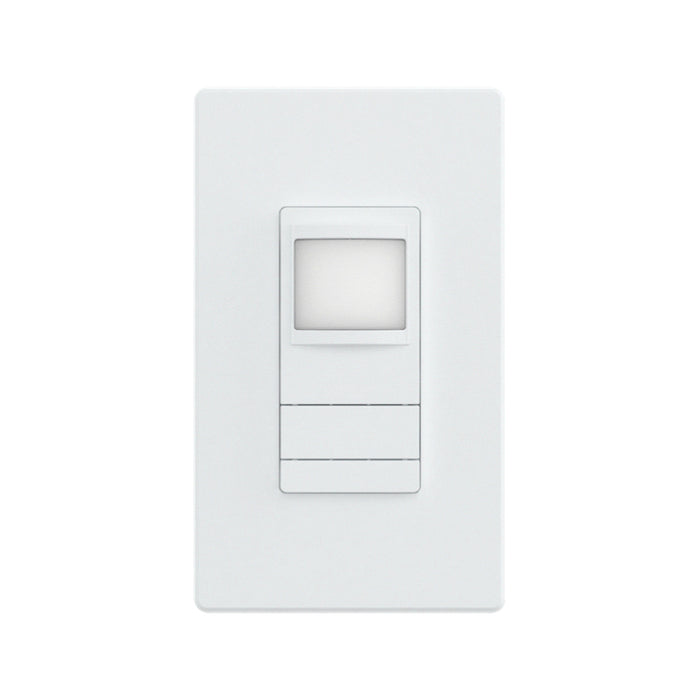

Sensor Switch WSXA MWO PDT SA Wall Switch Sensor, Multi-way Operation, Dual Technology, On/Off Dimming, Manual On/Automatic On

Our new WSXA MWO series allows for multi-location On/Off or 0-10 dimming up to 9 devices (2 device limit when neutral-less wiring used) on a single traveler.

Features

• Finish: White
• Type: Occupancy and Daylighting with Multi-way Operation
• Detection Mode: Dual Technology

• Voltage: 120-277 VAC
• Dimming: On/Off

• Operating Mode: Manual On (default) or Automatic On

• Temp / Humidity: Standard
• Single Pole devices can be programmed with Sensor Switch VLP app or traditional push button programming
• Devices can be spaced up to 250 ft with MWO option
• MWO option support up to 9 additional MWO enabled devices (2 neutral-less) on a single traveler
• 100% passive detection, no potential for interference with other building systems
• Small motion detection to up to 20 ft, Large motion detection up to 36ft
• Push-button programmable without removing cover plate - adjustable time delays & operating modes
• Dual technology (PDT) utilizes PIR/Microphonics detection (patented)
• Device accommodates powering over ground or neutral connection (patent pending)
• Fully meets NEC 2017 Section 404.2C neutral requirements - no current leakage to ground when connected to neutral
• Line power and load wires are interchangeable - impossible to wire backwards (patented)
• Integrated Photocell (disabled by default) prevents light from turning on if sufficient daylight is present
• New aesthetic with vandal resistant lens

Dimensions

• Width: 2.74"

• Height: 1.68"
• Depth: 1.63"

Warranty

• 5-Year Limited Warranty

Document

• Spec Sheet
• Instruction Sheet
