Sensor Switch WPD Phase Dimming Wall Switch

Sensor SwitchSKU: WPD WH

Price:
$49.20
Stock:
In stock

Description

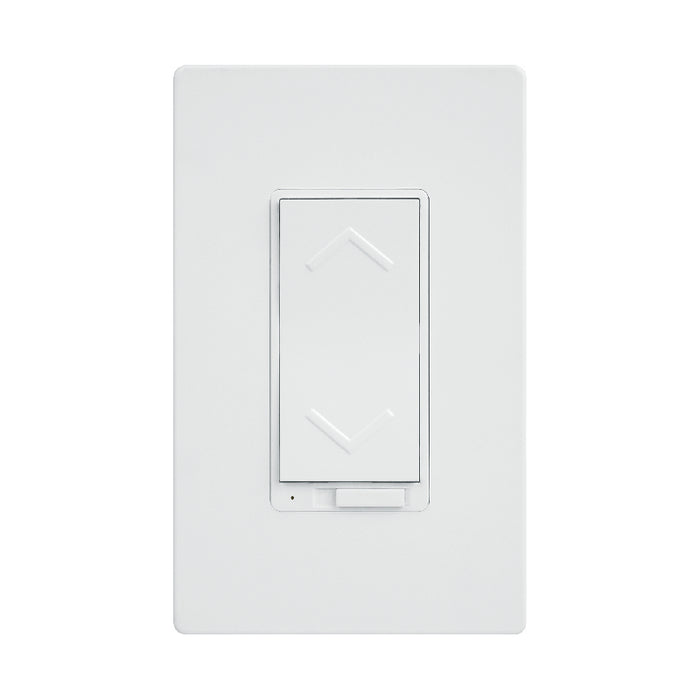

The Sensor Switch WPD is an economical commercial grade forward phase paddle dimmer for LED, CFT, Incandescent, and self ballast devices. The WPD allows the user or installer to set high and low trim settings and return to default easily and efficiently. Its elegant design does not compromise function, whereas this device offers extremely smooth dimming control that meets NEMA SSL-7A requirements.

Features

  • Finish: White
  • Perfect Replacement for regular wall ON/OFF & Dim switch, 120VAC
  • Manual ON/OFF& Dim control of any permanently installed incandescent, dimmable LED, and CFL lamp fixture
  • Preset light level option allows the dimmer will turn on to the light level that it was adjusted to the previous time when the light was on.
  • Can be used for single pole or 3-way control with a regular ON/OFF mechanical switch (sold separately)
  • Capable of setting maximum and minimum dimming range (see installation instructions)
  • Air-Gap Switch feature meets UL requirements and disconnects power from load locally.
  • Programming Status LED Indicator
  • Includes screw-less wall plate
