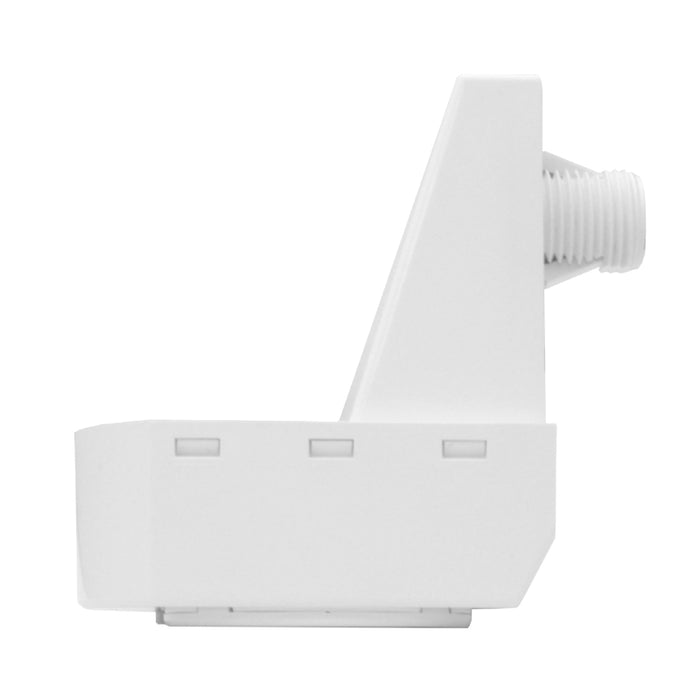

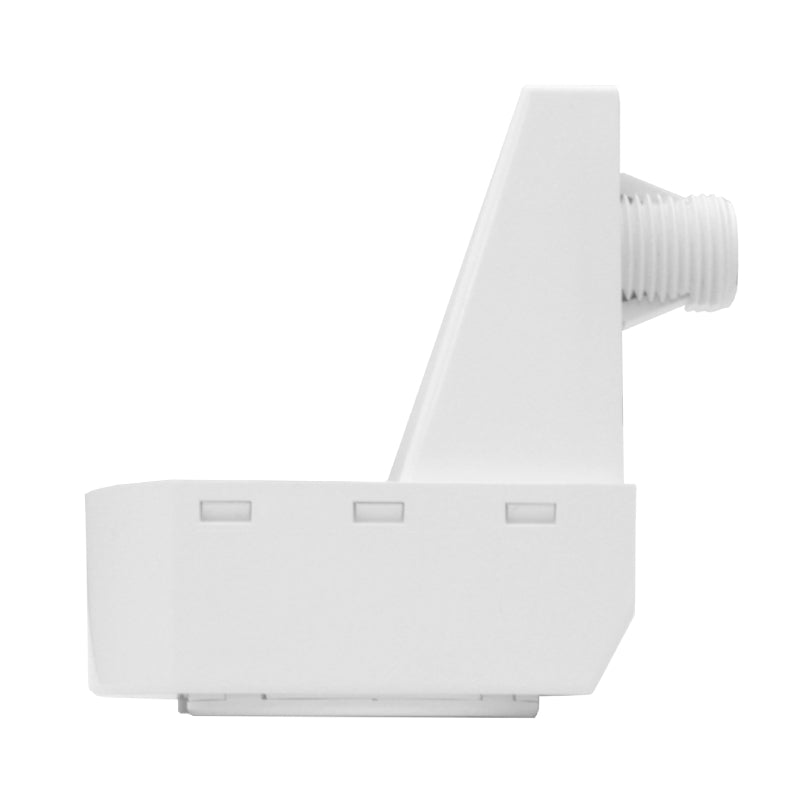

Sensor Switch LSXR Passive Infrared Occupancy Sensor, High & Low Mount 360º

Sensor SwitchSKU: LSXR 610

In stock


The LSXR Family of fixture mount occupancy sensors provides reliable and versatile solutions for commercial and industrial lighting control applications.


  • Finish: White
  • Lens: High & Low Mount 360º
  • Voltage: 120-277V
  • Lead Length: 8"
  • Default Time Delay: 10 min
  • Four interchangeable lenses - high mount 360º, low mount 360º, high mount aisleway, and small motion 360º
  • Integrated mounting bracket drops lens down 3” from chase nipple - no bracket accessory required
  • 100% digital PIR detection - provides excellent RF immunity
  • No PIR field calibration or sensitivity adjustments required
  • Single or dual relay versions - designed with robust protection from the harsh switching requirements of T5 fluorescent and LED loads
  • Powers from single or two-phase line connections
  • Reversible hot & load wires - eliminates backwards wiring
  • Photocell and 0-10 VDC dimming options
  • Digital push-button programming - no tools or analog adjustments required
  • Non-volatile settings memory
  • Convenient test mode - quickens initial walk and/or photocell testing
  • Green LED indicator
