OVERVIEW

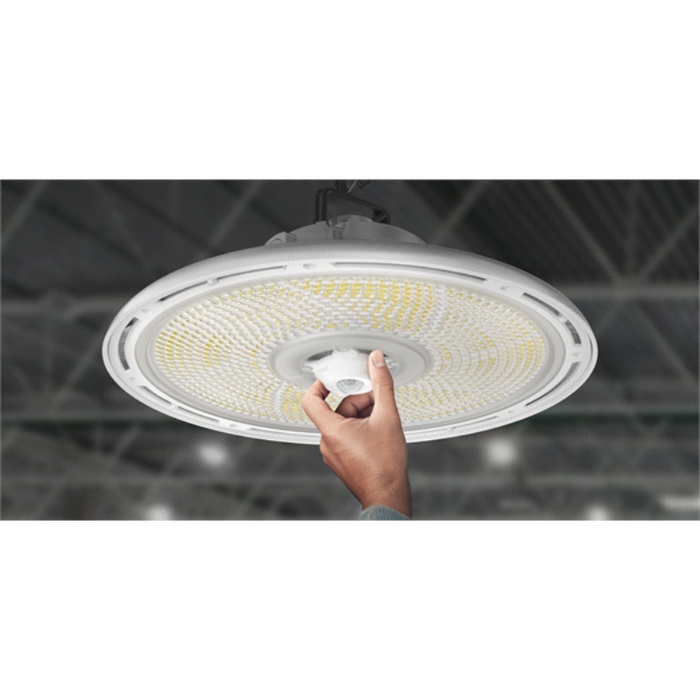

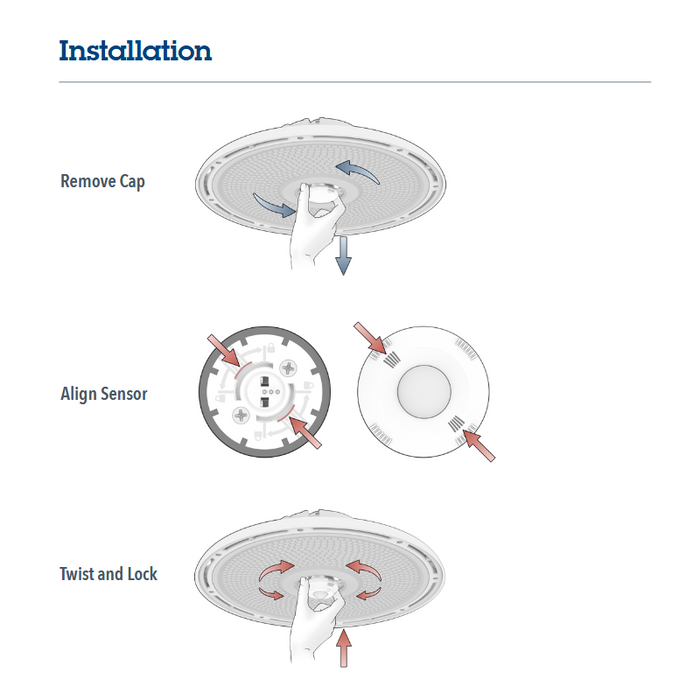

The SensorSwitch™ TLS, twist-to-lock sensor is a field-installable or luminaire-embedded solution for industrial lighting control applications. When installing the TLS sensor in the field, it features an efficient tool-less lock mechanism with no wiring required for assembly to the luminaire.
Features

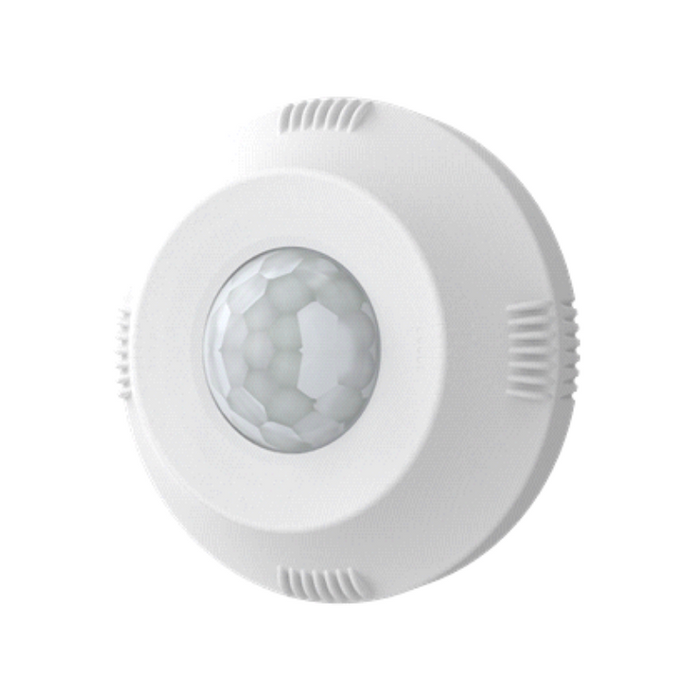

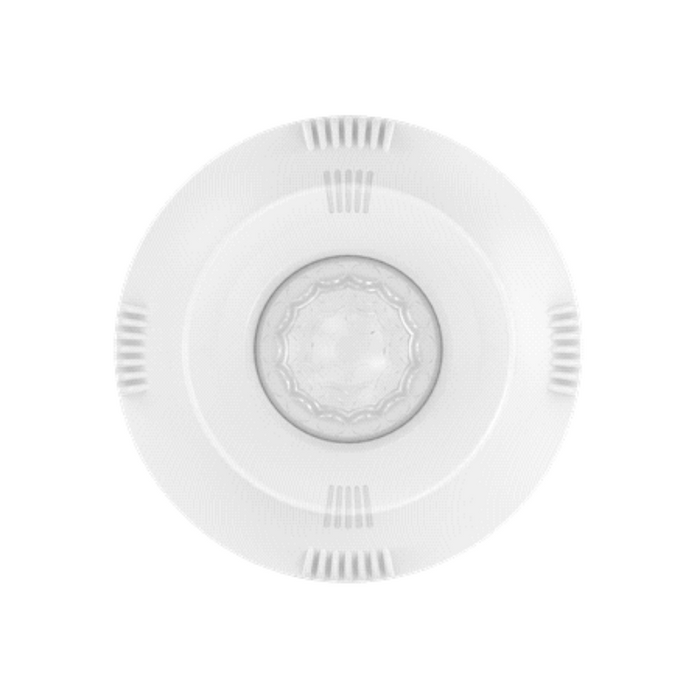

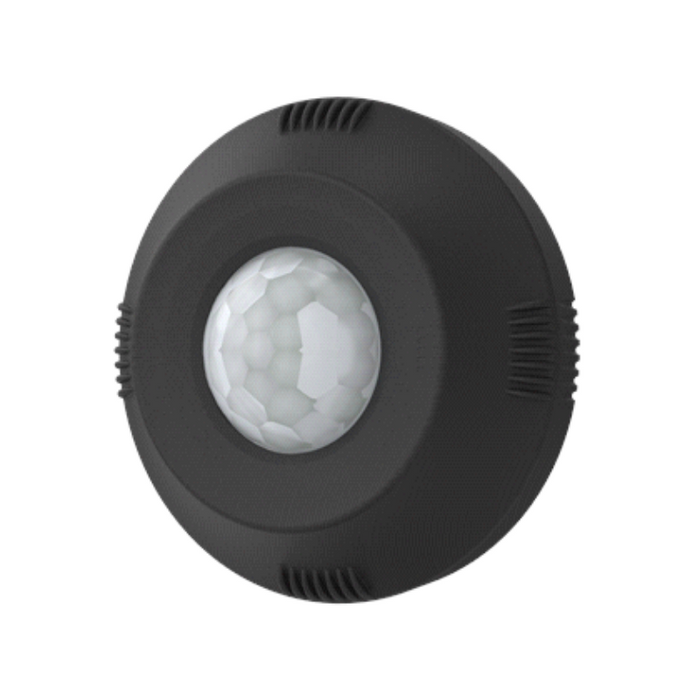

- Color: White, Black
-
Voltage: 12-24V
- Voltage Type: Low
- Detection Type: PIR and Photocell
- Coverage: Large Motion 360°
- Broad occupancy detection supports heights from 8 ft to 45 ft
- Daylighting dimming and switching photocontrol
- Adjustable lighting control settings: occupancy time, high trim, and daylighting setpoint
- Configurable from the floor using IWP bi-directional remote
- Support passive powerless programming, allows programming while unpowered via RFID
- Occupancy detection tested per NEMA WD 7-2011
- Support ingress protection, IP66 rated

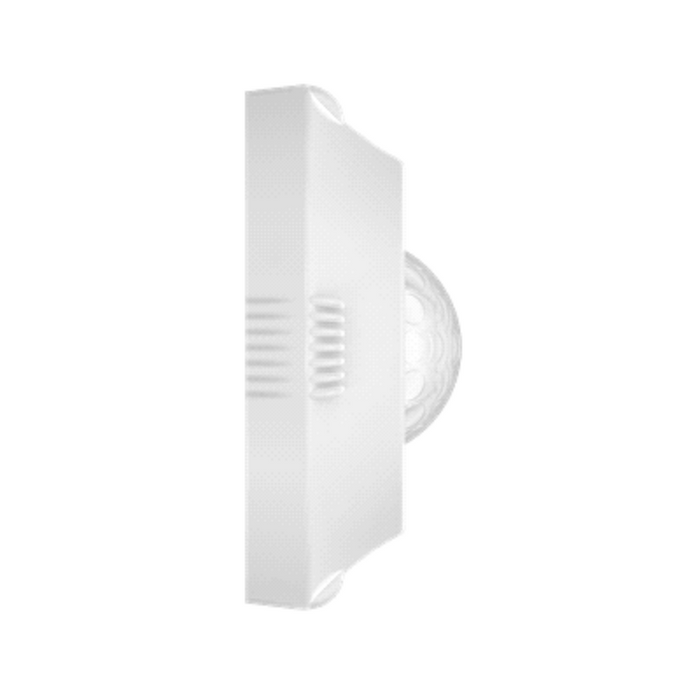

Dimensions
-
Diameter: 2.14"
- Height: 0.88"
Warranty
- 5-Year Limited Warranty
